Pair of black aluminum Dinan D763-1500D high flow air mass meter housings for the E39 M5 }
Dinan D763-1500D kit contents: two air mass meter housings, silicone hoses, clamps and wire ties }

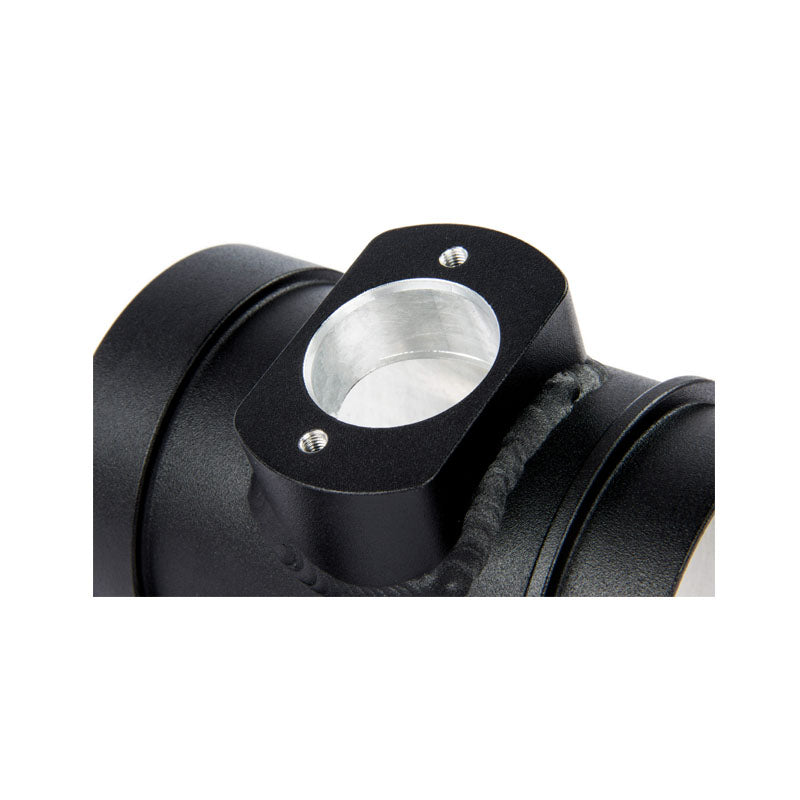

Sensor mounting opening on a Dinan D763-1500D aluminum air mass meter housing }

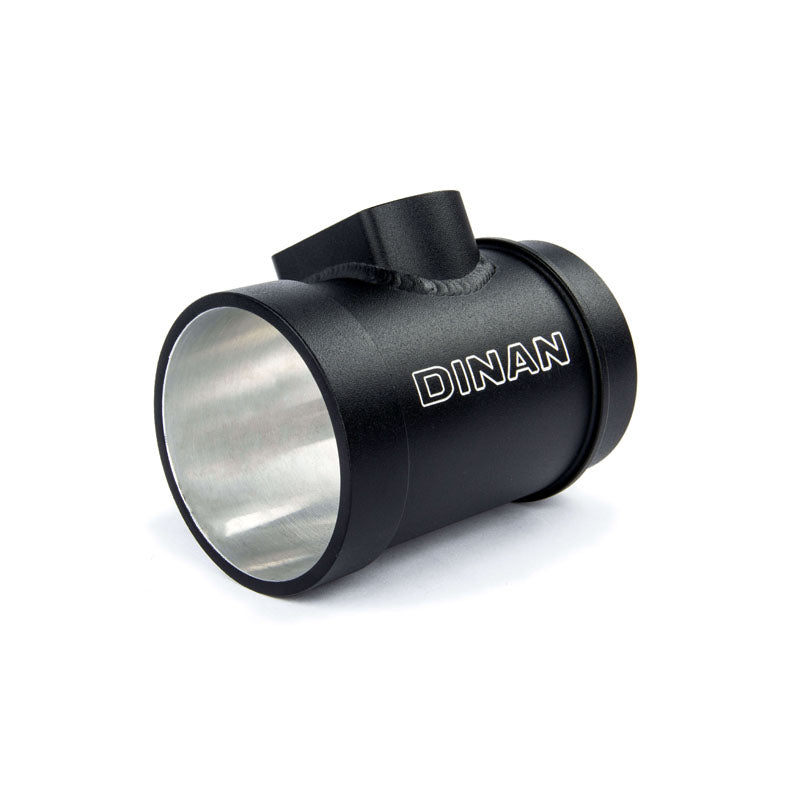

Single Dinan D763-1500D black air mass meter housing with Dinan logo }
Brand: DinanSKU / Part #: D763-1500D
Regular price
$584.95
Regular price
Sale price
$584.95
Check your purchasing power Apply at checkout
Subtotal: $584.95
Dinan High Flow Air Mass Meter Kit for BMW M5 E39 (2000-2003)
Subtotal: $584.95
Not sure it fits? Text us your VIN

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

Learn more about our Price match policy
Overview

The Dinan High Flow Air Mass Meter Kit D763-1500D is for the E39 M5 with the S62 V8. It replaces the two plastic factory air mass meter bodies with aluminum housings that have a larger internal diameter, so air flows more freely from the cold air intake to the intake plenum. The housings are powder coated black and carry an outlined Dinan logo, and they accept your factory sensors.

This kit is a follow-on to a Dinan cold air intake. Dinan's instructions say it must be used with a Dinan Cold Air Intake Kit, including its airbox heat shields and the temperature sensor in the lower radiator inlet shroud, and that poor engine performance may result if those parts are missing. Dinan Stage 3 engine software is recommended to get the full gain and smooth drivability.

Dinan quotes plus 6 horsepower and plus 5 lb-ft at 7,000 rpm with the engine software. Fitment is the 2000-2003 M5 sedan (E39), the same car two other retailers list. It is not for the 540i or 528i. It carries CARB EO D-176-18, so it is 50-state legal when used as Dinan specifies.

Installation takes about 0.75 hour: you move the factory sensors into the Dinan bodies and connect them with the new silicone hoses and clamps. Handle the sensors carefully; they are fragile and expensive. Dinan assigns 3 Dinan points. Coverage is Dinan's limited warranty: the remainder of the vehicle's factory limited warranty (up to 4 years / 50,000 miles) or 2 years with unlimited miles, whichever is greater. It ships in a carton of about 14 x 10 x 6 inches at 4 pounds. Dinan installation instructions (PDF).

Features

  • Aluminum air mass meter housings for the E39 M5 S62 V8
  • Larger internal diameter for more airflow
  • Black powder coat, outlined Dinan logo
  • Requires a Dinan cold air intake; Stage 3 software recommended
  • CARB EO D-176-18, 50-state legal

What's Included

  • Dinan High Flow Air Mass Meter Kit (D763-1500D)

Specifications

Part Number D763-1500D
Brand Dinan
Product type Air mass meter housings
Kit contents 2 AFM housings, 2 silicone hoses, 4 hose clamps, 4 button head bolts and 2 wire ties
Power gain +6 hp, +5 lb-ft at 7000 rpm (with Dinan software)
Material Aluminum, black powder coat
Requires Dinan cold air intake kit
CARB EO D-176-18
Shipping dimensions 14 x 10 x 6 in
Shipping weight 4 lb
Labor time 0.75 hours
Emission code 1
Dinan point value 3
UPC 813725029559
Warranty Remainder of vehicle factory limited warranty (up to 4yr/50k mi) or 2yr/unlimited miles, whichever is greater

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Fitment Notes

  • E39 M5 (S62 V8) only.
  • Must be used with a Dinan cold air intake kit; call first if your car does not have one.
Year Make Model Chassis Engine
2000-2003 BMW M5 Sedan E39 S62 5.0L V8
Fitment
Shipping & returns

Shipping: Orders ship via UPS, FedEx or USPS, from our facility near Los Angeles or directly from the manufacturer. Rates for many items are weight-based and shown at checkout. If you need it by a certain date, text us before you order.

Returns: Unused items in brand-new condition and original packaging can be returned within 30 days of the invoice date, with a 25% restocking fee unless otherwise specified. In some cases we can offer a lower fee with the balance as store credit. Shipping charges aren't refundable in either direction unless approved by AutoTalent.

Not returnable: special-order or custom items, and anything that has been installed, modified or altered.

Cancellations: free if the item is out of stock or we miss the ETA you agreed to. Other cancellations carry a 5% processing fee to cover card fees we can't recover. Special-order items can't be cancelled.

Damaged in transit? Report it to the carrier and to us within 48 hours, keep all packaging, and don't send anything back without our written approval.
