Eventuri Black Carbon Intake for Honda Civic Type R FL5 2023-2026

The Eventuri black carbon intake for the Honda FL5 Civic Type R replaces the factory airbox on the K20C1 with a sealed pre-preg carbon enclosure, a carbon Venturi tube with an integrated MAF mount and a custom high-flow filter.

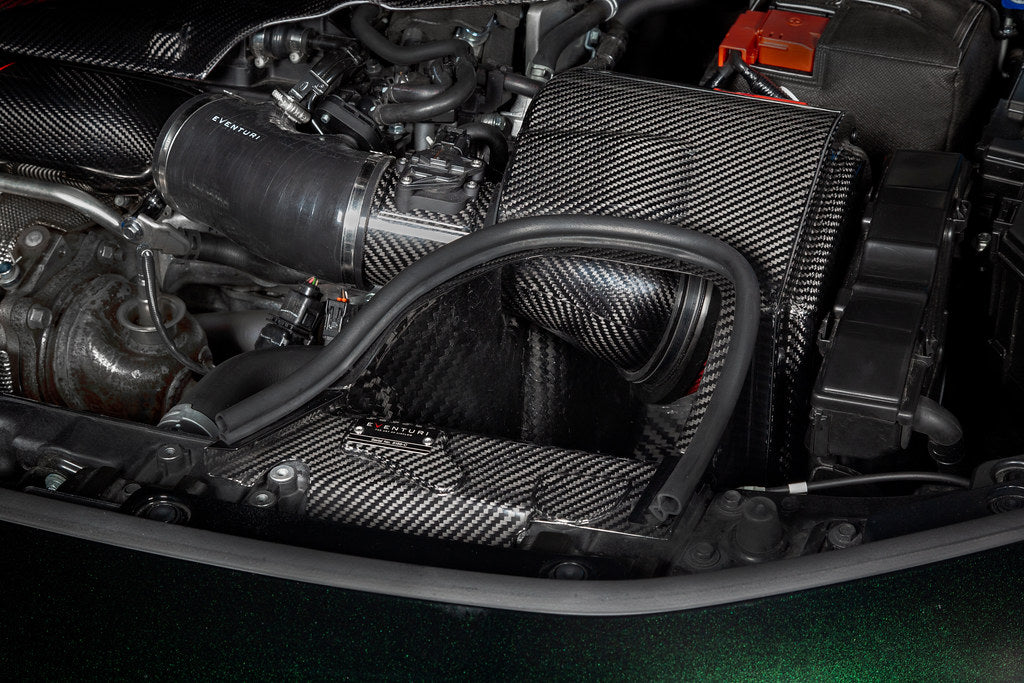

The factory intake sits directly behind the radiator, where fan discharge and the nearby turbocharger heat the air. Eventuri encloses the filter in a fully sealed carbon box and lid instead of relying on an open filter and heat shield, so it draws a cooler, steadier supply.

Inside the box, a smooth carbon Venturi tube replaces the factory flexible rubber hose and its deep internal ridges. The Venturi stack matches the inner diameter of the filter neck, so the transition from filter to tube is continuous. The tube sits independently in the airbox and moves with the engine without stressing the seal.

At the turbo, a custom silicone hose with an internal step mates to the factory metal tube and keeps the original breather module. In back-to-back dyno testing by independent Honda tuning specialists, with standard calibration and exhaust and the hood closed, Eventuri reports 14 hp and 15 lb-ft at the flywheel.

Features

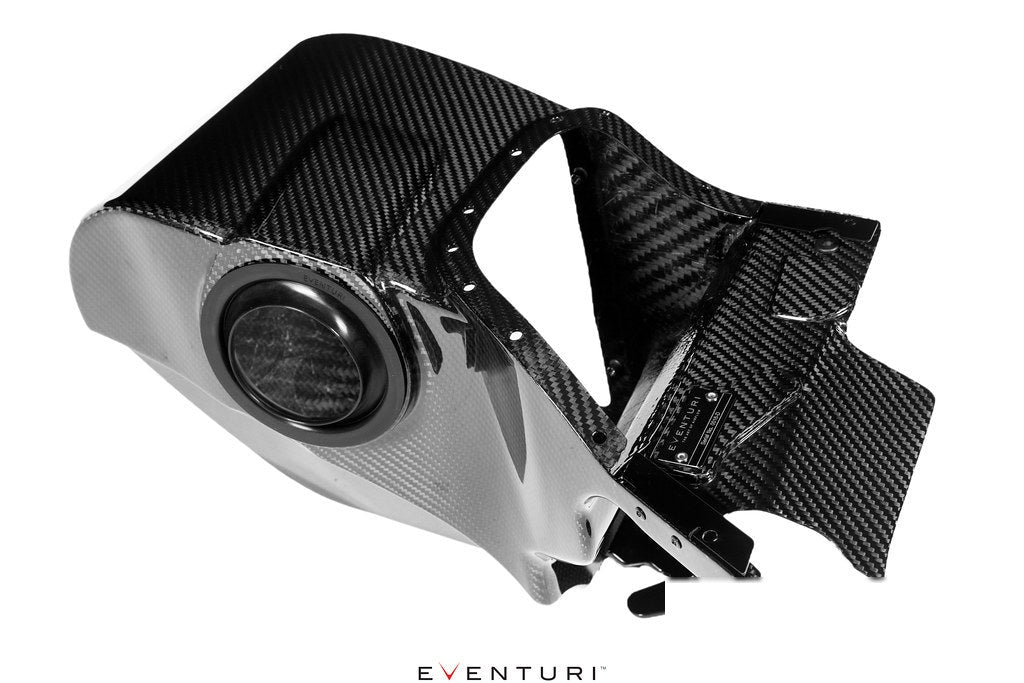

• Sealed pre-preg carbon airbox and lid isolate the filter from radiator and turbo heat
• Carbon Venturi tube with integrated MAF mount
• Venturi stack matched to the filter neck diameter
• Custom ISO-tested high-flow filter
• 14 hp and 15 lb-ft reported in back-to-back dyno testing
• Inlet tube moves independently to absorb engine movement

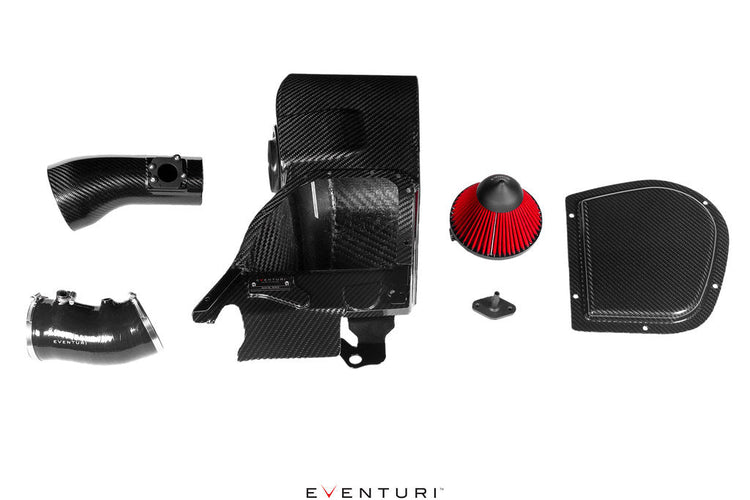

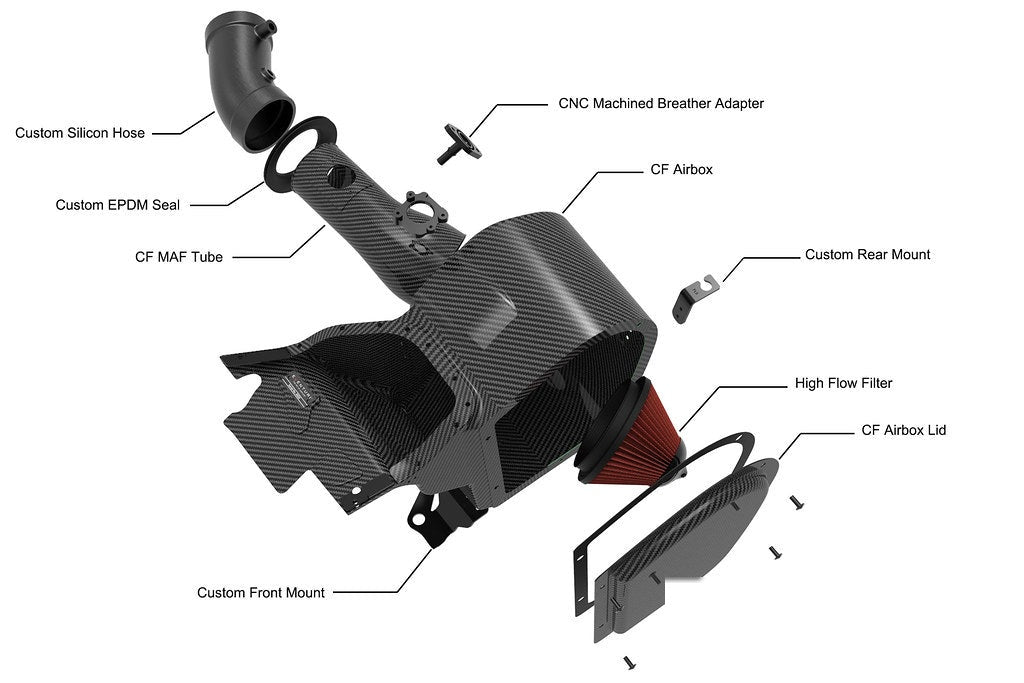

What's Included

• Sealed pre-preg carbon airbox with carbon lid
• Carbon Venturi tube with integrated MAF mount
• Custom high-flow air filter
• Custom silicone hose with internal step
• CNC-machined breather adapter
• Custom EPDM seal
• Laser-cut front and rear mounts

Specifications

• Part number: EVE-FL5-CF-INT
• Brand: Eventuri
• Type: sealed carbon intake system
• Material: pre-preg carbon fiber
• Engine: Honda K20C1 2.0L turbo I4
• Replacement filter: Eventuri Type S
• Made in: UK

Fitment Notes

• Fits the 2023-2026 FL5 Civic Type R only. Not for the FK8 Type R or the non-Type R Civic.
• Some photos show the Eventuri carbon turbo tube and engine cover, sold separately.
• Not eligible for return once opened.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
