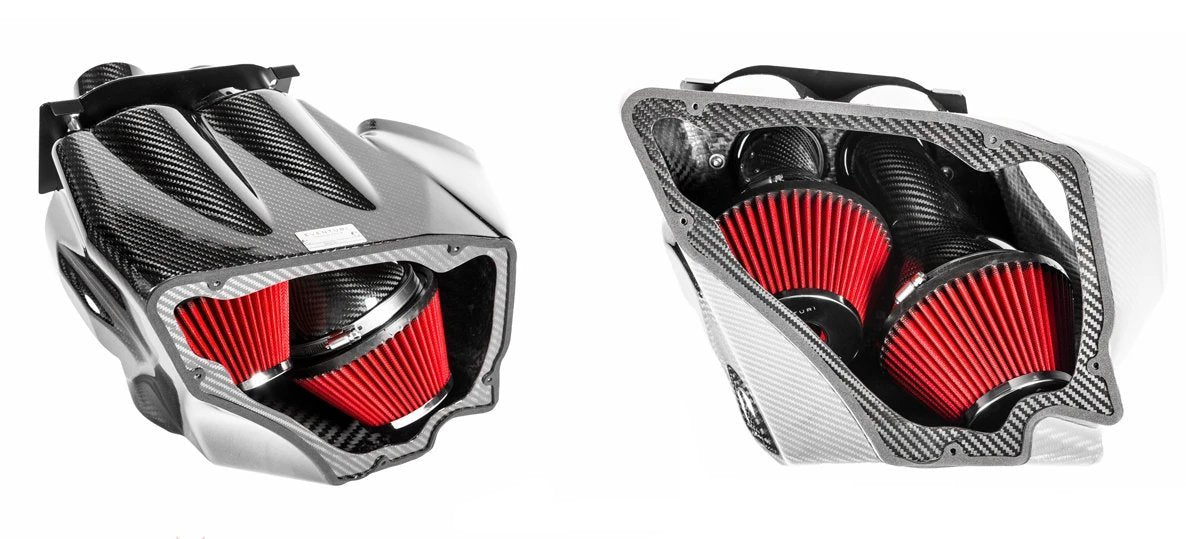

The Audi C7 RS6/RS7 Eventuri intake sets a new benchmark for intake design on this platform. It was developed to achieve two objectives – 1) De-restrict the turbo inlet paths. 2) Maintain low inlet temperatures. The first objective was met by providing each turbo with a separate filter and Venturi stack in order to reduce drag and allow the turbos to work more efficiently. The second objective was met by enclosing the filters inside a carbon airbox and feeding them with an additional scoop added behind the front grill. The C7 RS6/RS7 engine bay has multiple heat sources from different directions so a simple configuration of open filters and shields would result in higher IAT values. Our carbon airbox enclosure has been designed to maximise the use of the available volume and block all sources of heat. The resulting performance gains and aesthetics are industry leading for the C7 RS6/RS7.
The C7 RS6/RS7 Eventuri system uses 2 Venturi stacks mounted to the filters which smoothly transition to the turbo tubes. These provide an aerodynamically efficient airflow path from the filters to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and allows laminar flow to be maintained throughout the tubing, reducing the drag on the turbos.

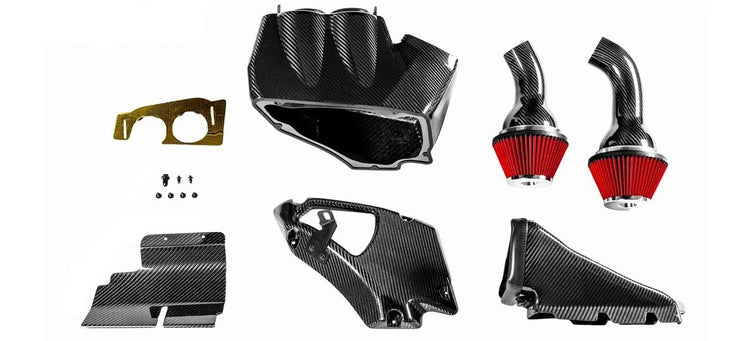

- Perfect Shape and Design
- Carbon Fibre Airbox Enclosure
- Carbon Fibre Inlet Duct
- Carbon Fibre Front Scoop
- Laser Cut Heat Shield with Gold Reflective
- Laser Cut Stainless Steel Bracket Work
- CNC Machined Airbox Mounts
- Perfect fitment
- Performance Gain: 15-19hp, 13-17ft-lb
Extensive testing was carried out on this system both on the Dyno and road. Firstly the dyno tests were carried out showing an impressive gain of approximately 19hp and 17ft-lb of torque. This translates on the road to increased part throttle and full throttle response with the car pulling much more eagerly to the redline. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency. The car was tested firstly with the stock intake - hood closed. We then left the car on the dyno and installed the Eventuri. The car was then run again - hood closed. Several runs were carried out with both configurations to get a consistent result.
We then took the car for some road testing using a Vbox unit to record the acceleration from 60-130mph (also 100-200Km/h). Testing was carried out on the same stretch of road - again on the same day to keep variables minimum. Results show that with just the intake added, the acceleration times from 60-130mph and also 100-200Km/h reduced by 0.4 seconds which is a significant change at such speeds.
- 2014 Audi RS6 C7
- 2015 Audi RS6 C7
- 2016 Audi RS6 C7
- 2017 Audi RS6 C7
- 2018 Audi RS6 C7
- 2014 Audi RS7 C7
- 2015 Audi RS7 C7
- 2016 Audi RS7 C7
- 2017 Audi RS7 C7
- 2018 Audi RS7 C7
- 2019 Audi RS7 C7
Images are for representation purpose only and may differ depending on application.
