The E46 M3 intake system is a result of extensive data logging, dyno testing, and design optimization. Our aim was to develop an intake system for the S54 engine which worked with the stock ECU map and MAF sensor and produced a genuine improvement in the driving experience.

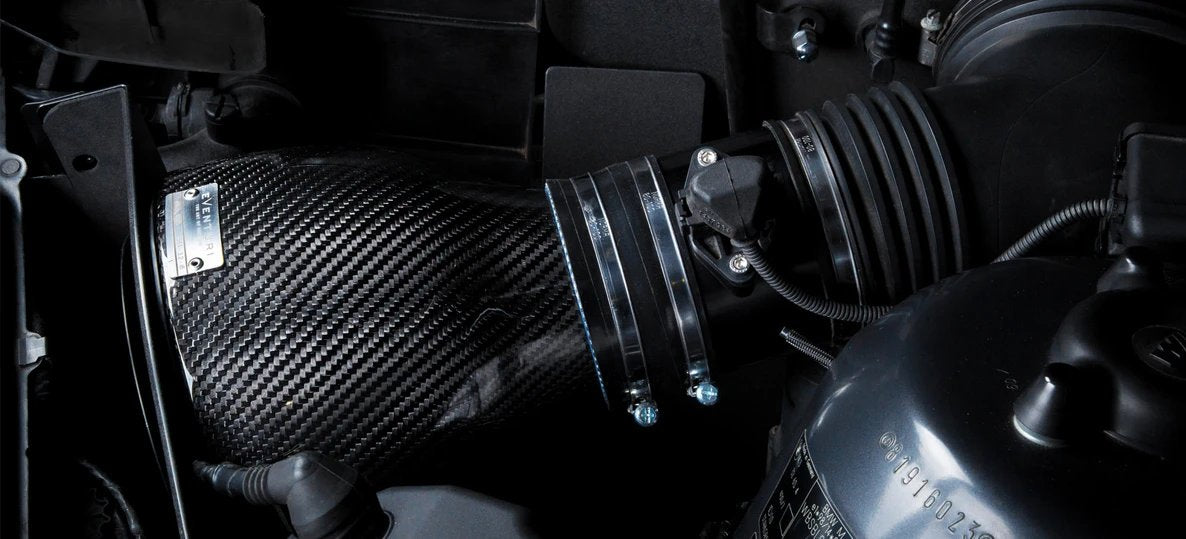

The E46 M3 Eventuri system uses our Patent Pending Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design that invokes the Venturi affect.
- Perfect Shape and Design
- 100% Prepreg Carbon Fibre Intake Housing
- Anodised Aluminium inlet cowling

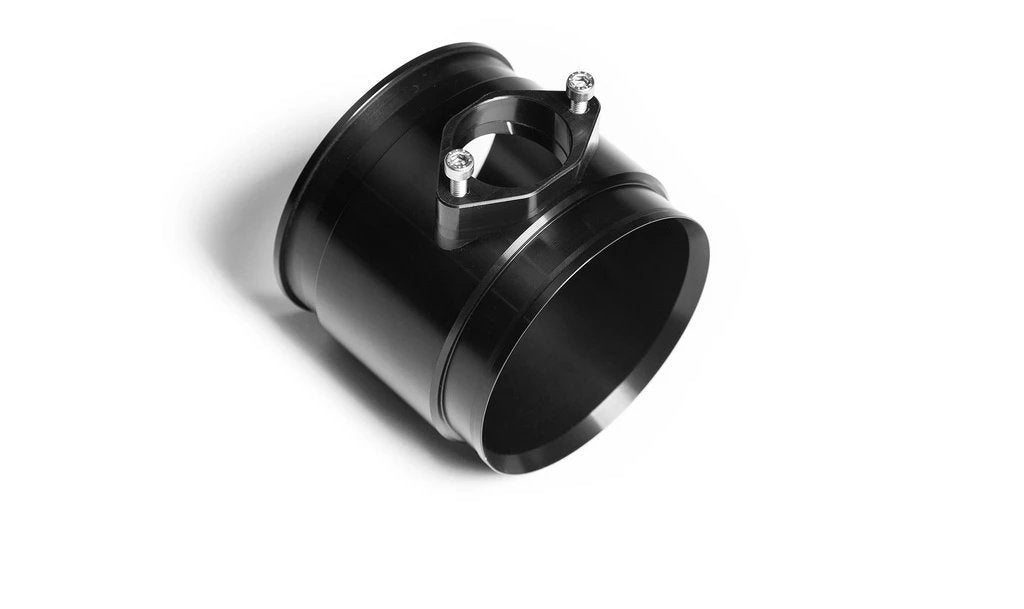

- CNC Machined MAF tube & High Flow Filter

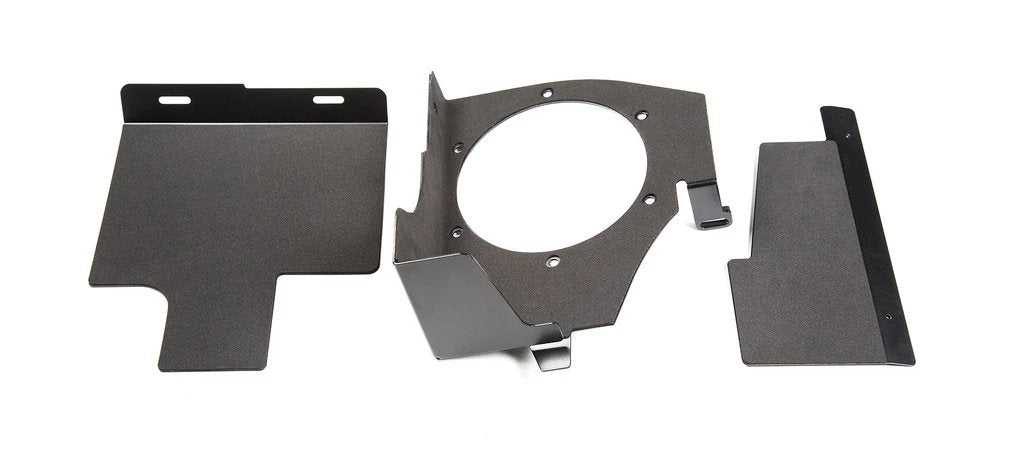

- 3 Aluminum heat shields with neoprene lining
- High-quality Silicon coupler with BMW specification hose clamps
- 100% Prepreg Carbon Fibre Air Scoop with CNC machined aluminum collar
- Performance Gain: 10-15hp, 8-12ft-lb
- Perfect fitment
Below is a dyno graph showing the comparison between the Eventuri and the stock airbox on a standard car with just a rear exhaust and standard map. As you can see, power and torque are increased through a large portion of the rpm range not just at the peak. This translates on the road to increased part throttle and full throttle response with the car pulling much more eagerly to the redline. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency.
Although the Eventuri system does not require a remap – we have seen further gains when the E46 M3 is subsequently remapped. The graph below shows another E46 M3 with 3 curves – stock, Eventuri and then Eventuri with a remap. In this instance, the car was remapped by Evolve Automotive.
- 2001 Bmw E46 M3
- 2002 Bmw E46 M3
- 2003 Bmw E46 M3
- 2004 Bmw E46 M3
- 2005 Bmw E46 M3
- 2006 Bmw E46 M3
Images are for representation purposes only and may differ depending on application.
