Eventuri E85 / E86 Z4M Hybrid Carbon Airbox System

The Eventuri Hybrid Carbon Airbox System pairs a prepreg carbon fiber airbox with a purpose-built Venturi intake to give the S54-powered BMW E85 / E86 Z4M an authentic CSL-style induction note without sacrificing MAF functionality or street manners. Because the Z4M engine bay packaging differs from the E46 M3, this system ships as a complete kit — the factory intake cannot be carried over — and the matched airbox-and-intake pairing handles all routing, sealing, and sensor placement as a single unit.

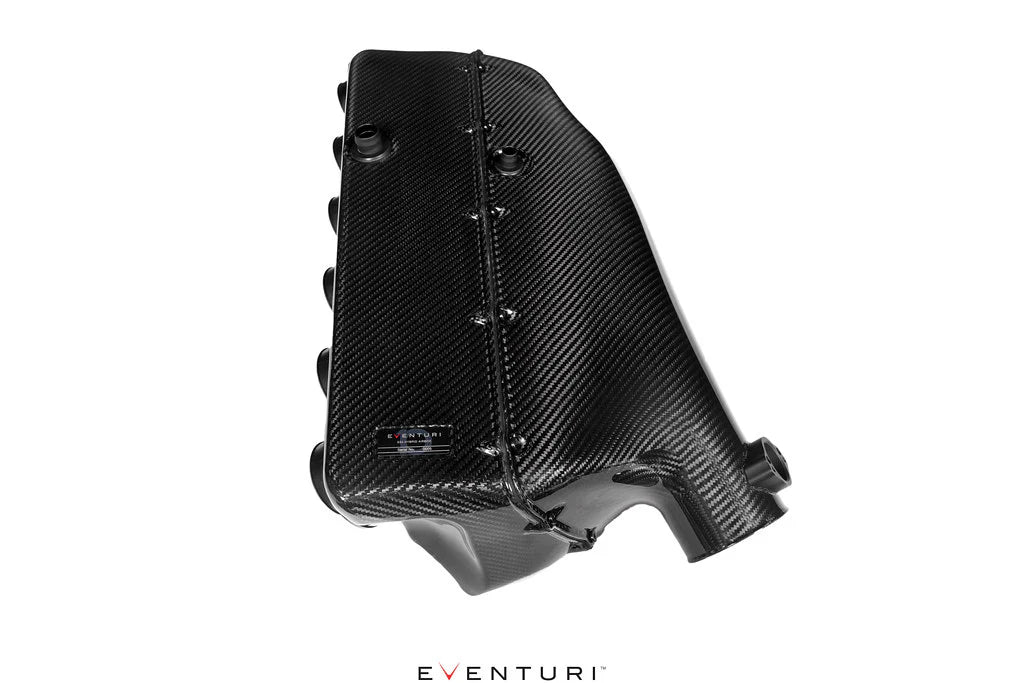

The airbox shell is autoclave-cured prepreg carbon fiber, shaped with CFD-modeled internal geometry that allows the structure to resonate under load and produce the CSL-inspired tone while keeping the airflow path stable for the OEM mass airflow sensor. Because the MAF reading remains consistent, no ECU tune or Alpha-N conversion is required — drivability, fueling, and throttle response stay at OEM levels. The intake side uses Eventuri's patented Venturi carbon housing, which accelerates incoming air and maintains laminar flow toward the throttle body, and a dedicated carbon cold-air scoop channels ambient air into the intake to keep IATs in check under sustained load. Eventuri has not published Z4M-specific dyno figures; on the closely related E46 M3 architecture, the platform is estimated to add 20–22 hp and 8–13 ft-lb.

The kit ships with the carbon fiber main airbox, a carbon snorkel with CNC-machined MAF boss, thermoplastic intake trumpets with stainless steel reinforcement rings, the Venturi carbon filter housing with a bespoke high-flow dry filter, the Z4M-specific intake system, the carbon cold-air scoop, stainless mounting brackets, CNC-machined breather adapters, a crankcase breather hose, additional vacuum tubing, and silicone and EPDM flexible couplers. Fitment is dedicated to the BMW E85 Roadster and E86 Coupe Z4M with the S54 engine, and the system is designed and hand-assembled in the UK.

Configuration

• EVE-Z4MABX-CF-INT – BMW Z4M Hybrid Carbon Airbox with Full Carbon Intake (required configuration)

Product Details

• Note: Sold only as a complete airbox + intake kit — factory Z4M intake cannot be reused
• Note: Performance figures of 20–22 hp / 8–13 ft-lb are estimated from Eventuri E46 M3 data, not Z4M-specific dyno results
• Note: Not eligible for return once opened
• Engineered for BMW E85 / E86 Z4M with S54 engine
• Authentic CSL-style induction sound with full MAF compatibility
• No ECU tune or Alpha-N conversion required — plug-and-play operation
• CFD-modeled internal airbox geometry
• Patented Eventuri Venturi carbon fiber filter housing
• Prepreg carbon fiber construction, autoclave cured
• Carbon airbox snorkel with CNC-machined MAF boss
• Thermoplastic intake trumpets with CNC stainless steel reinforcement rings
• Carbon fiber cold-air scoop for direct ambient airflow
• Stainless steel brackets and mounting hardware
• CNC-machined breather adapters
• Custom EPDM flexible coupler and silicone hoses
• OEM-level fitment
• Designed and hand-assembled in the UK
• Warranty coverage and damage-in-transit support fully provided
• SKU: EVE-Z4MABX-CF-INT

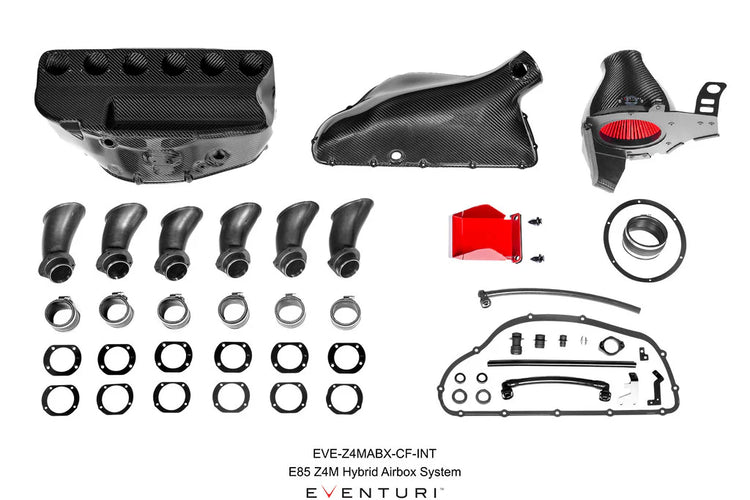

What's Included – Full System

• Carbon fiber main airbox
• Carbon fiber airbox snorkel with integrated MAF tube
• Thermoplastic intake trumpets with stainless reinforcement rings
• Carbon fiber Venturi filter housing
• Bespoke high-flow dry air filter
• Z4M-specific custom intake system
• Carbon cold-air scoop
• Stainless steel brackets and mounting hardware
• CNC-machined breather adapters
• Crankcase breather hose
• Additional vacuum tubing
• Silicone couplers and EPDM flexible coupler

Vehicle Applications

• BMW E85 / E86 Z4M

Notes

• Complete airbox-and-intake kit only — factory or existing Z4M intake cannot be reused
• No ECU tuning required (utilizes OEM MAF sensor)
• All required breather hoses and hardware are included
• Estimated gains of 20–22 hp / 8–13 ft-lb extrapolated from Eventuri E46 M3 data
• Replacement filter: Eventuri Carbon Intake System Replacement Filter – Type B
• View emissions compliance notice
• Designed and hand-assembled in the UK
• This item is not eligible for return once opened
• Warranty coverage and damage-in-transit support are fully provided
