Eventuri Black Carbon Fiber Intake System for Audi RS3 8V GEN 2

Description:

This Eventuri Full Black Carbon Fiber Intake for Audi Gen-2 RS3 TTRS sets a new benchmark in aftermarket intake design for this platform. It was developed to achieve two objectives.

• De-restrict the turbo inlet path.
• Maintain low inlet temperatures.

The first objective was met by using 88mm internal diameter tubing all the way to the turbo as well as using our unique Venturi housing to maintain laminar flow. The second objective was met by designing a sealed system to the stock cold air feed, therefore, ensuring the turbo does not draw heated air from the engine bay. The intake duct draws air from the stock feed and has been maximized in volume to allow the highest flow rate through the filter. The resulting performance gains and aesthetics are industry leading for the 8V RS3.

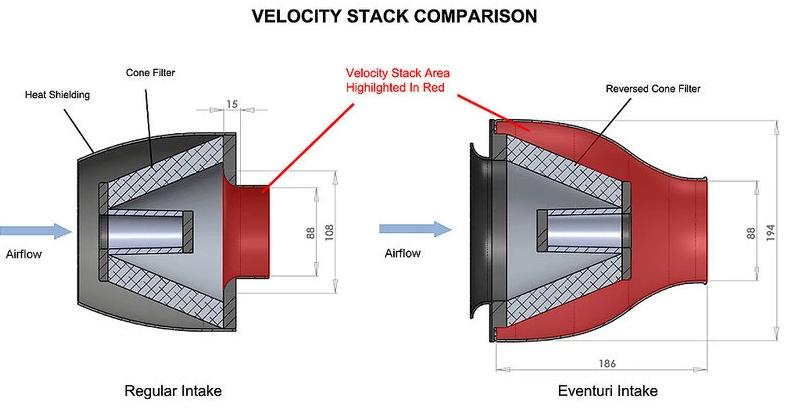

The 8V RS3/TTRS Eventuri system uses our Patent Pending Carbon fiber Housings which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect.

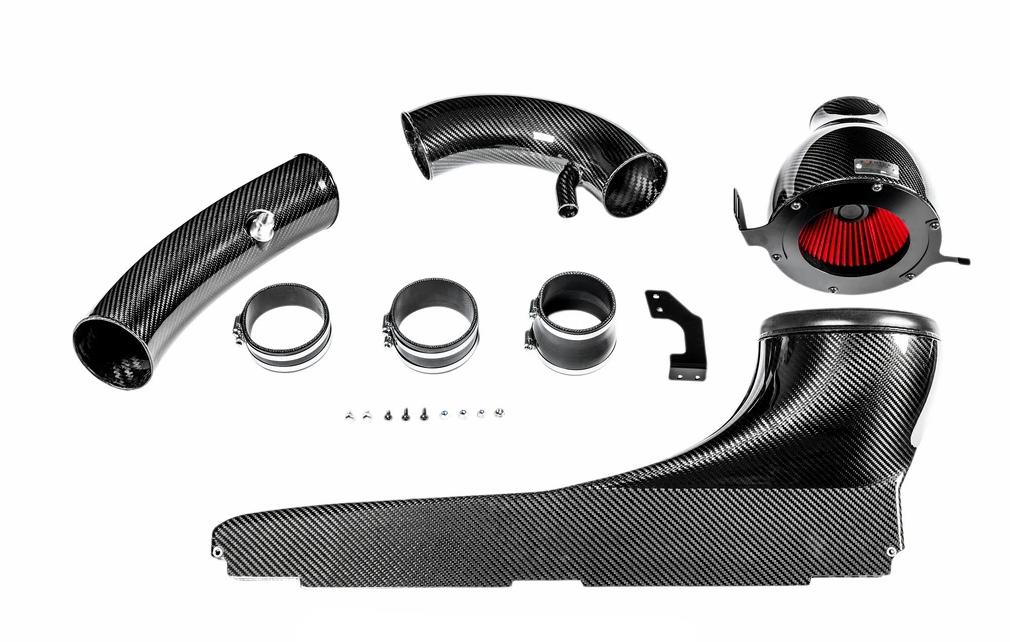

Each intake system consists of:

• Carbon Fiber Venturi Filter Housing
• Bespoke High Flow Urethane Cone Filter

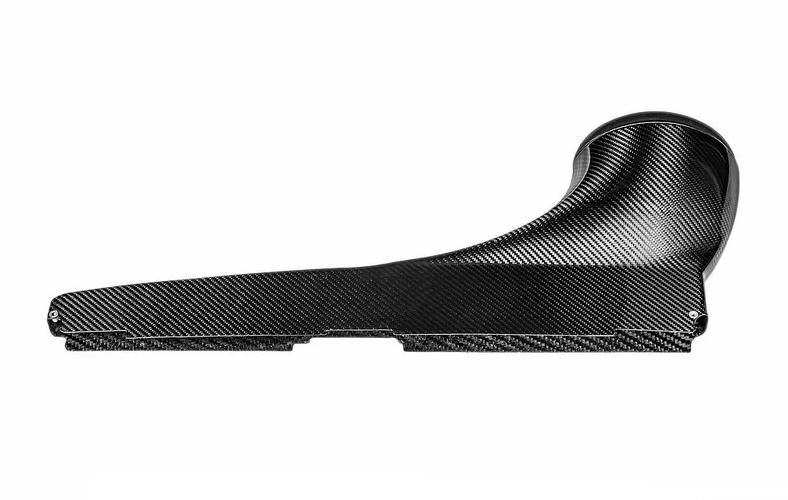

• Carbon Fiber inlet Duct

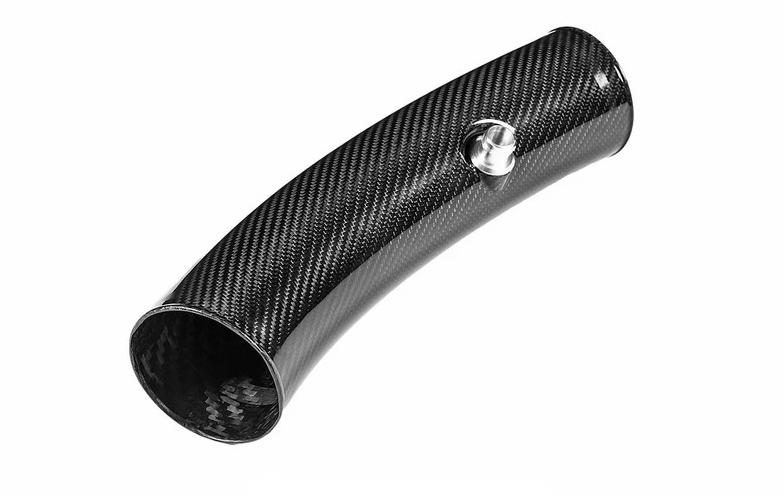

• Carbon Fiber Turbo Tube 88mm ID

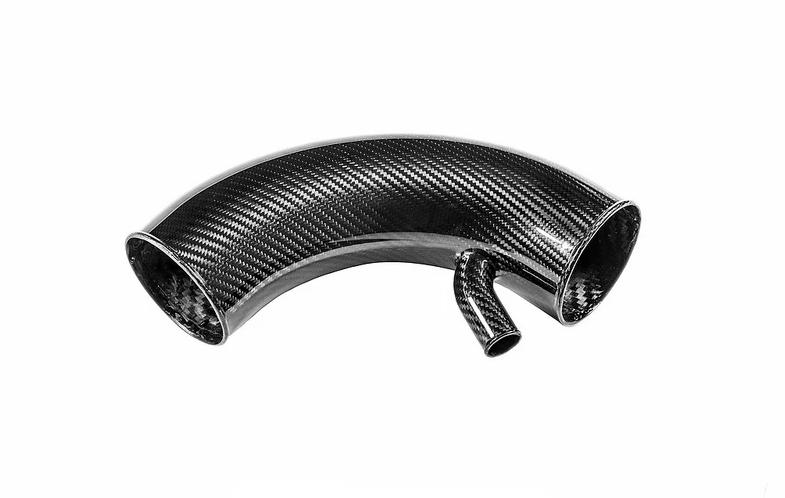

• Carbon Fiber Connecting Tube 88mm ID
• Laser Cut Stainless Steel Brackets
• Silicon Couplers and Reducer

Acceleration results summary:

60-130mph with Stock intake = 12.013 seconds
60-130mph with Eventuri intake = 11.753 seconds
100-200Km/h with Stock intake = 10.271 seconds
100-200Km/h with Eventuri intake = 10.046 seconds

Vehicle Fitment:

• 2016 Audi RS3 8V GEN-2
• 2017 Audi RS3 8V GEN-2
• 2018 Audi RS3 8V GEN-2
• 2019 Audi RS3 8V GEN-2
• 2020 Audi RS3 8V GEN-2

Note:

Images are for representation purpose only and may differ depending on the application.
