Evolution Racewerks Audi A4 (B6) Sports Series Front Mount Intercooler (FMIC) Kit

Key Features:

1. Properly sized 18"x6.5"x3" (22"x6.5"x3" with end tanks) High Density Bar & Plate Construction Intercooler Core.
2. Rolled intercooler end tank design (welded and port & polished interior for improved flow).
3. Mirror polished or Type III Hard Black Anodizing (for stealth) finish on intercooler, end tanks and all piping.
4. Complete all aluminum intercooler piping, replaces every single OEM piece with hard piping for improved throttle response.
5. Intercooer piping features beaded ends, silicone "hump" hoses and T-bolt clamps to prevent intercooler piping from coming off from boost.
6. Designed for OEM or OEM style diverter valves (non OEM style diverter or blow off valve flange/positioning available upon request).
7. Smog pump relocated to make room for the least amount of bends and shortest intercooler piping possible (for faster response/decrease turbo lag).
8. Maintains ALL factory components, i.e. fog lights, bumper reinforcement bar, smog pump, horn, water squirters etc...
9. Retains the OEM side fog light covers and lower center grill for the OEM look.
10. Includes replacement External Power Steering Cooler kit with all hardware to mount and install that replaces OEM power steering line with more efficient unit. No need to tweak or "rig" the OEM piece.
11. Includes all hardware needed to install.
12. Limited Lifetime Warranty.

The ER Sport FMIC features all the innovations found in our "infamous" Competition FMIC kit, however with a smaller intercooler core that is sized for stock K03/K04 upgrade turbos and can even support the GT28 variant turbos. It also retains the factory bumper reinforcement bar (no modifications needed) instead of having a replacement piece found in the Competition FMIC kit.

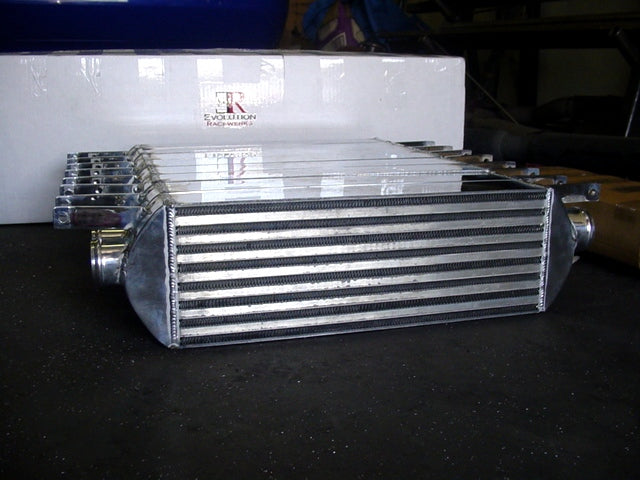

At the heart of the ER Sport FMIC kit is a 18x6.5x3 (22x6.5x3 with end tanks) high density bar and plate intercooler core. The same (but smaller) core found in our Competition FMIC that pulls the insane intake air temperatures (IAT). Essentially, the "little brother" to the Competition. Even though it seems compact in size, it is not. It features 351 cubic inches of intercooler core, comparable to the other FMIC's in the market. Instead of going tall and thin like other competitor's FMICs, where half the intercooler is blocked behind the bumper cover and does not receive direct cold airflow, the ER Sport FMIC is short and thick. This puts more than 90% of ER Sport FMIC in direct cold airflow and making the intercooler as efficient as possible. Performance, no compromise. Function over form. With the bumper cover on however, one can hardly tell that the ER Sport FMIC is not tall. With the bumper cover on, it looks just like our Competition FMIC which is tall and thick.

All our intercooler applications come standard with a mirror polish intercooler and piping. We also offer and stock our intercooler applications with Type III Hard Black Anodizing for the guys that want the stealthy look. With the Type III Hard Anodized FMIC, it is very hard to tell there is a FMIC on the car. Most of our customers with the Type III Hard Anodized FMIC comment that unless you know there is a FMIC on the car, nobody notices it. Another added benefit of the Type III Hard Anodizing is that it makes the intercooler fins harder and stronger, which makes it less prone to getting bent/damaged from road debris like rocks etc... We opted for the Type III Hard Anodizing over the Type II color anodizing which is only asthetics for this purpose only (even though it cost us considerably more to anodize Type III than Type II). We have been using Type III Hard Anodizing on FMIC we put on our rally car customers for years which go through tremendous amounts of abuse. Testing has shown no noticeable ill-effect from the Type III Hard Anodizing on performance (regular spray paint etc... has shown ill-effects on performance).

We also offer our intercoolers in any color of the rainbow you want (special order) and is available in only Type II Anodizing (asthetics).

Quality is very important to us. We do extensive R&D as well as beta testing to ensure this (as some of you may already know, waiting for us to release the production units). We only release our products once we feel we have reached perfection. We do not rush to get our products out even if there is alot of potential customers. Also, we do quality checks before the intercoolers are packaged. All our FMIC’s are pressure tested to 50 PSI of pressure before they are shipped. We include only high quality parts and accessories in our FMIC kit. We include detail instructions and ALL parts needed for installation. All our FMIC’s are backed with our Limited Lifetime Warranty.

We go through extensive R&D to test all the innovations and features we incorporate into our intercooler systems. With years of experience building race cars and high power street cars, you can be sure that you're getting the best.

CAUTION: This product is intended for OFF ROAD USE ONLY. Not legal for use on pollution controlled vechiles upon public road/highways.   THIS PRODUCT IS FOR SALE FOR ALL 49 STATES EXCLUDING CALIFORNIA.

THIS ITEM IS NOT FOR SALE, INSTALLATION, OR USE ON LICENSED VEHILES IN THE STATE OF CALIFORNIA.

Fitments:
