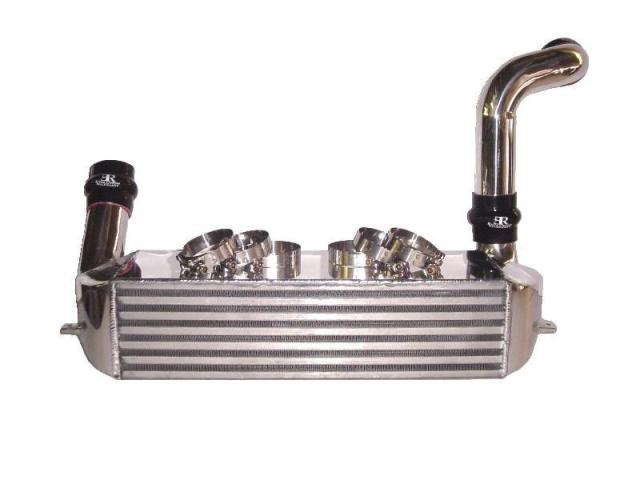

Introducing our new, long awaited Competition Series Front Mount Intercooler (FMIC) System!  Over a year of development and testing with our 135i Time Attack Race Car (same engine as the Z4 sDrive35i), our Competition FMIC is now ready.  With the scorching heat found on Southern California racetracks, we pushed our 135i Time Attack Race Car to the limits in 100+ degree weather on numerous occassions.  The results were 6 design revisions improving cooling efficiency and internal flow characteristics to introduce you to the ultimate intercooler solution for your 2009+ (E89) Z4 sDrive35i!

Key Features:

• Large 20"x5.5"x6" (26.5"x5.5"x6" with end tanks) High Density Bar & Plate Construction Intercooler Core
• Cast end tanks for improved durability and internal flow characteristics.
• Mirror polished finish on intercooler assembly and piping.
• Optional Type III Hard Black Anodizing (for stealth) finish on intercooler, end tanks and all piping.  Hard anodizing helps   improve durability of intercooler fins against damage from road debris (rocks).
• Complete all aluminum intercooler piping, replaces all OEM rubber hoses with hard piping for improved throttle response and faster boost spool up.
• Impoved intercooler inlet and outlet pipes for better flow characteristics.
• Intercooler piping features beaded ends, silicone "hump" hoses and T-bolt clamps to prevent intercooler piping from coming off from boost.
• Maintains ALL factory components.
• Includes all hardware needed to install.
• Developed under the harsh conditions of racing on our 135i Race Car (same engine as Z4).
• Limited Lifetime Warranty.

The heart of the ER Competition FMIC is the massive 20"x5.5"x6" (26.5"x5.5"x3" with end tanks) high density bar and plate intercooler core. It features 660 cubic inches of very efficient high density bar  & plate core (35% larger) versus the factory 425 cubic inches of less efficient tube & fin core.  Through extensive testing of different types of intercooler cores (tube & fin, bar & plate) we found that the high density bar and plate core to be the most efficient. Independent testing (all data & dynos shown below have been independently conducted by our customers) has shown that our FMIC is so efficient in cooling that it has cooled intake air temperatures (IAT) to almost ambient (outside) temperatures. We also did extensive testing on the proper size to use to effectively cool the hot charged air as well as fight off heatsoaking (when the intercooler cannot transfer heat away faster than the heat building up from the hot intake air). Heatsoaking is not an issue at all as shown by consistency of the IAT staying in the same temperature range throughout the WHOLE RPM powerband. Also our FMIC recovers so fast after a full throttle pull that once you shift, it recovers completely. This is why pull after pull, our FMIC does not œheatsoak. Beat on it all day long and the IATs will consistently be near ambient temperatures. Our Competition FMIC is just what it is, designed for competition. The other intercoolers may be adequate if you lived your life a ¼ mile at a time (with hours between runs to cool down), they will definitely heatsoak under harsher conditions like road racing where you're at full throttle for at least 20 minutes. With numerous laps around our local racetracks in 100+ degree weather, heatsoak is not a problem on our 135i Time Attack race car.  With it's size and ability to support over 600hp, it is most likely the "last intercooler you will ever buy".

One of the most overlooked aspect of intercooler design is the intercooler end tank and piping.  Having shorter and less bends on the intercooler piping will promote better internal flow.  This helps in reducing turbo lag, increase throttle response and faster boost spool ups.  An intercooler end tank must be designed to channel and distribute air  coming in from the inlet efficiently throughout the intercooler core.  Our end tanks design has been revised numerous times to promote smooth internal air flow. The cast end tanks allow us to have nice smooth radius on the inner edges of the end tank, causing less turbulence.  The inlet pipe angle has been changed to provide a smooth entry into the end tank and removes an extra bend that the factory hoses have.  Rubber hosing expands under boost pressure.  This expansion disrupts internal flow and causes turbulence, all of which slow down airflow velocity (which causes slower boost spool up and decreased throttle response).  By replacing ALL the factory rubber hoses with hard piping, noticeable increases in boost spool up and faster throttle response can be seen.  That is why our FMIC kit comes with a new upper intercooler piping whereas brand FMIC kits do not.

Our Competition FMIC sits in the factory location underneath the radiator.  Why you ask?  The radiator fan and radiator shrouding extends from the radiator above, all the way down to the factory intercooler. By sitting our FMIC in the same location, we can take advantage of the radiator fan sitting behind the intercooler to pulling air through the intercooler core.  This makes for even greater efficiency, just like how the BMW engineers designed it to do.  Even with just a small fan on the dyno, intake air temperatures are still very low.  Also, by maintaining the factory configuration, we do not block airflow to the radiator at all.  The cooling system on the N54 engine is already at it's maximum capacity and we have seen overheating issues with both oil and coolant while racing.  By having an intercooler blocking half the airflow the the radiator will definitely not help it's cooling efficiency.
