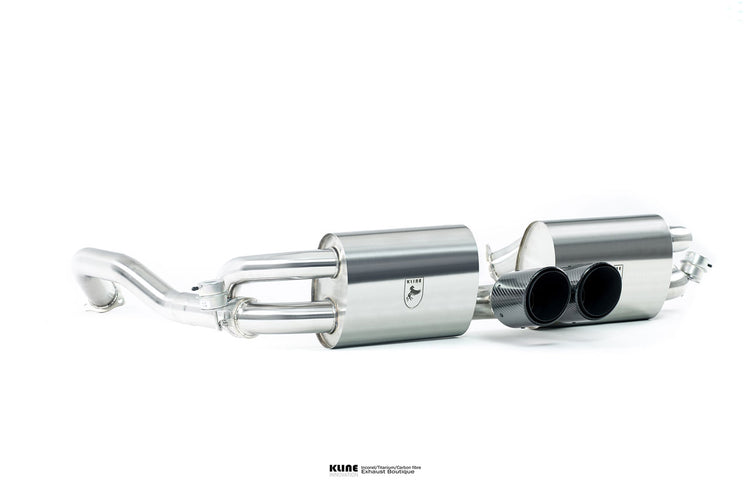

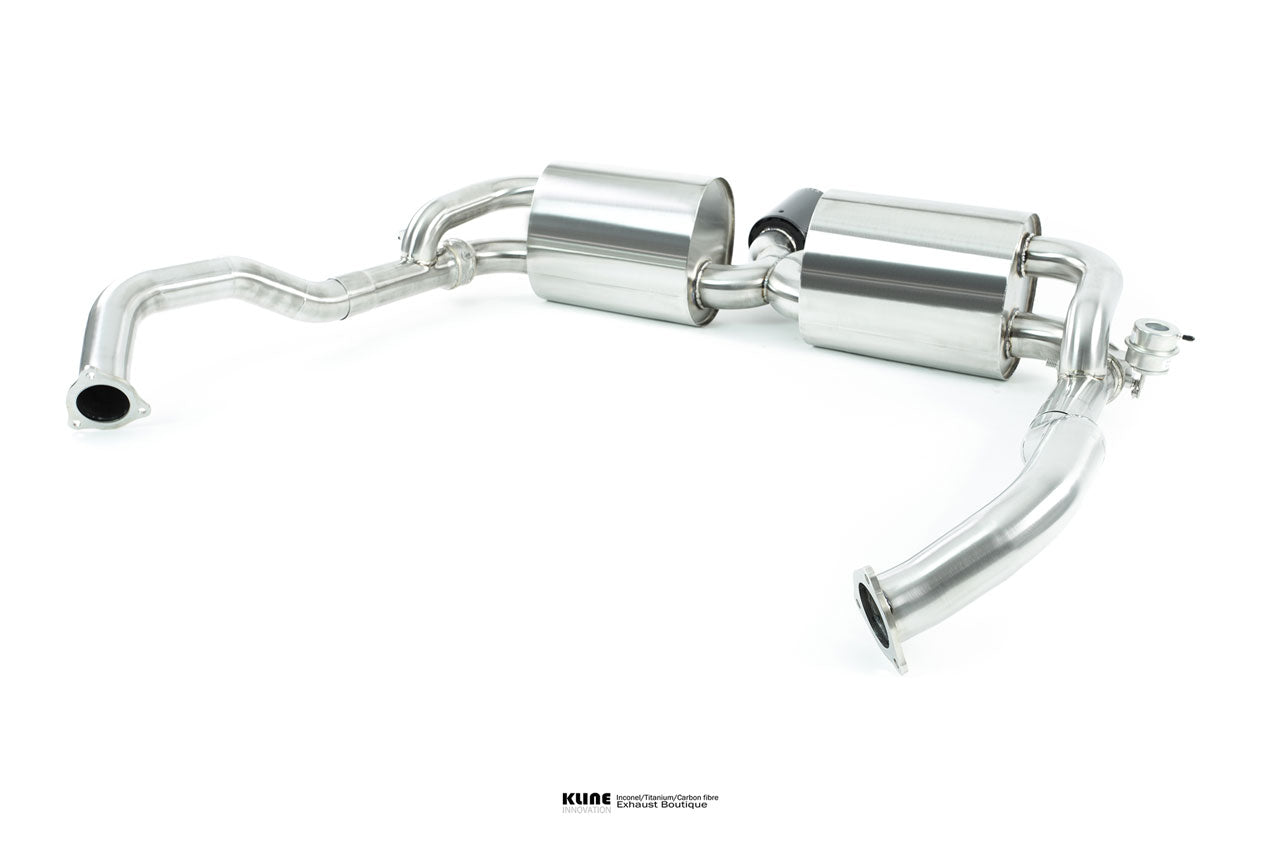

Kline Innovation 200 Cell Manifolds For Porsche 987.2 Cayman R

With 330 horsepower bristling from the 3.4-liter flat-six mounted amidships, the Cayman R will launch-control itself from 0-60 mph in 4.2 seconds. Applying our usual formula, F1 grade Inconel 625, tuned cross sections and manifolds with 200 cell catalyst, we were able to craft an exhaust that not only has the perfect sound, but is lightweight, durable, and performs to the highest expectations.

The Sound:

Building on our highly revered Porsche turbo range, we have incorporated many of the same design features into our Cayman R, 1D CLR X pipe for that incendiary howl at higher rpm, harmonically tuned silencers, and ultra-thin Inconel 625 for that “Unique to Kline” sound.
The Kline Cayman R system also incorporates a valvetronic design, allowing the car to be run stealthily on valve closed, while attaining an unhindered raw scream, and optimum performance when the valves are opened.
Available in Decat for optimum sound and performance or a 200 cell high flow sports cats. The cats section is modular, allowing the cats to be swapped with decat very rapidly, depending on intended use.

Performance:

Final Data on exact power figures is still being collated, but preliminary testing indicates a maximum power gain for the decat variant in the region from 21-25whp and 28-34nm torque Available with a variety of HJS catalysts, in either 100 cell 200 cell, hdpe perforated foil.

Specifications:

Materials:

Inconel 625, Manifolds decat 2.3kg each,
Wing silencers 4.6kg each,
Center silencer with tips 5.9kg each.
Total weight manifold back, 15.1kg,
Total weight Inc manifolds 19.7kg
19.2kg weight saving

304 grade stainless,
Manifolds 4kg each,
Wing silencers 8.5kg each,
Center silencer with tips 10.5kg
Total weight manifold back 27.5kg
Total weight Inc manifolds 35.5

Cross Sections:

All cross section have been selected for a balance of peak torque and power.

Manifolds:

Primaries 51mm
Secondaries 70mm

Rear Section:

Valve open, tapered 70mm into 63.5mm X pipe
Valve closed, 57mm into wing silencers

Tips:

Choice of 89 mm or 1o1mm, double walled Inconel
Or Carbon fiber

Features:

• Kline Innovation 200 Cell Manifolds for Porsche 987.2 Cayman R
• Specifically designed for the Porsche 987.2 Cayman R model
• Equipped with 200 cell high-flow catalytic converters for improved exhaust flow
• Enhances engine performance with increased power and torque
• High-quality construction ensures durability and longevity
• Direct bolt-on installation for easy and precise fitment
• Compatible with OEM or aftermarket exhaust systems
• Delivers a deeper and more aggressive exhaust sound
• Unleash the true potential of your Porsche 987.2 Cayman R with the Kline Innovation 200

Vehicle Fitment Chart:
