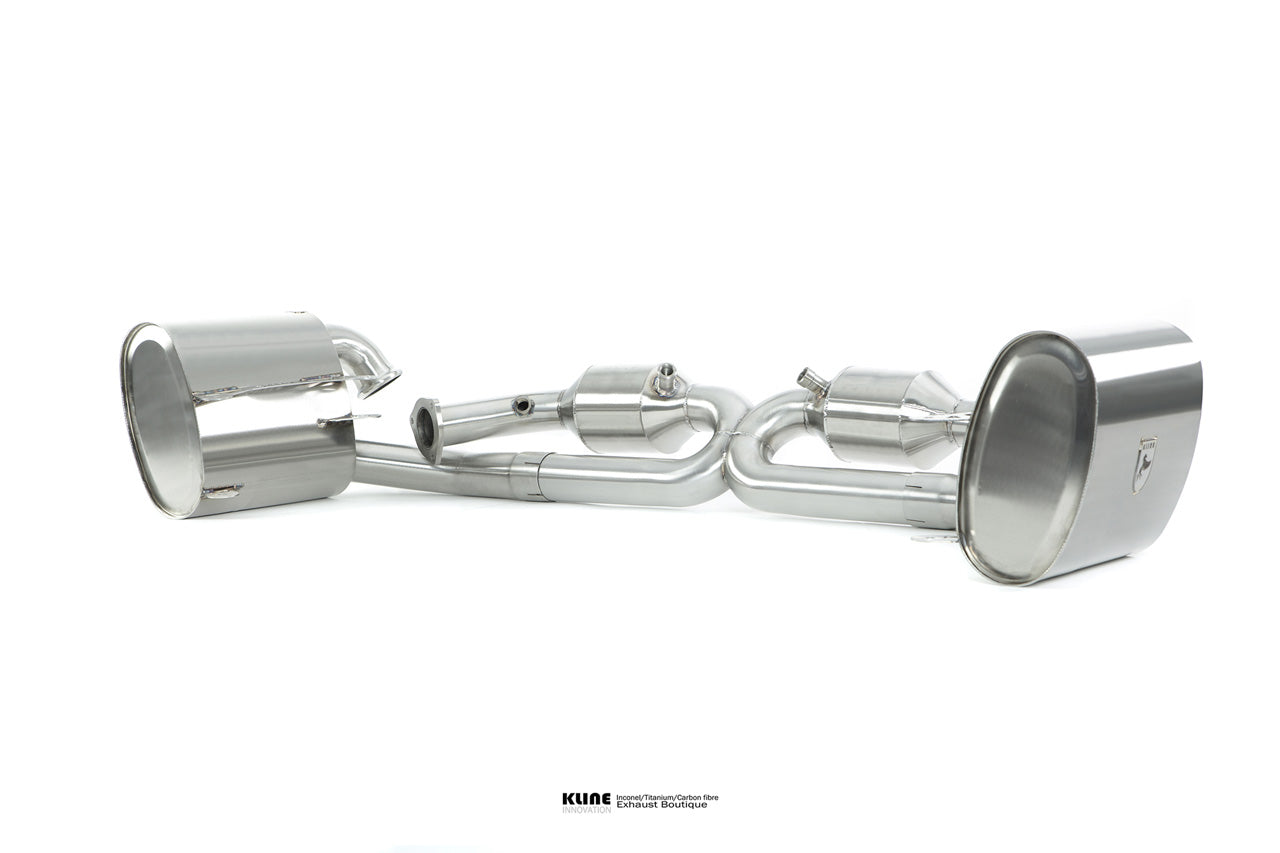

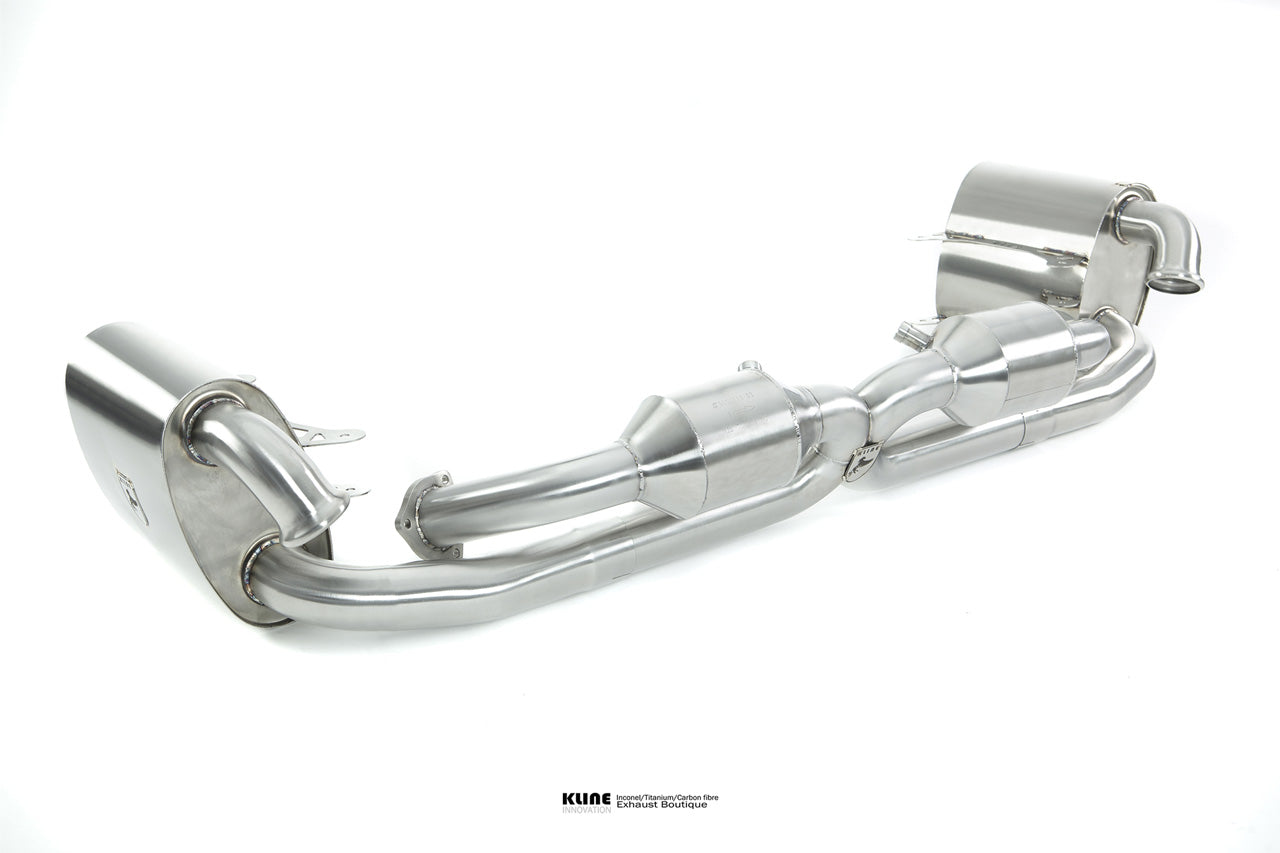

Kline Innovation Silencer Section For Porsche 996 Carrera

Starting at the drawing board, the points of improvement over the oem and many existing sports exhausts were reviewed. our main objectives, increase power, remodel and accentuate the sound, and half the weight.

The Sound:

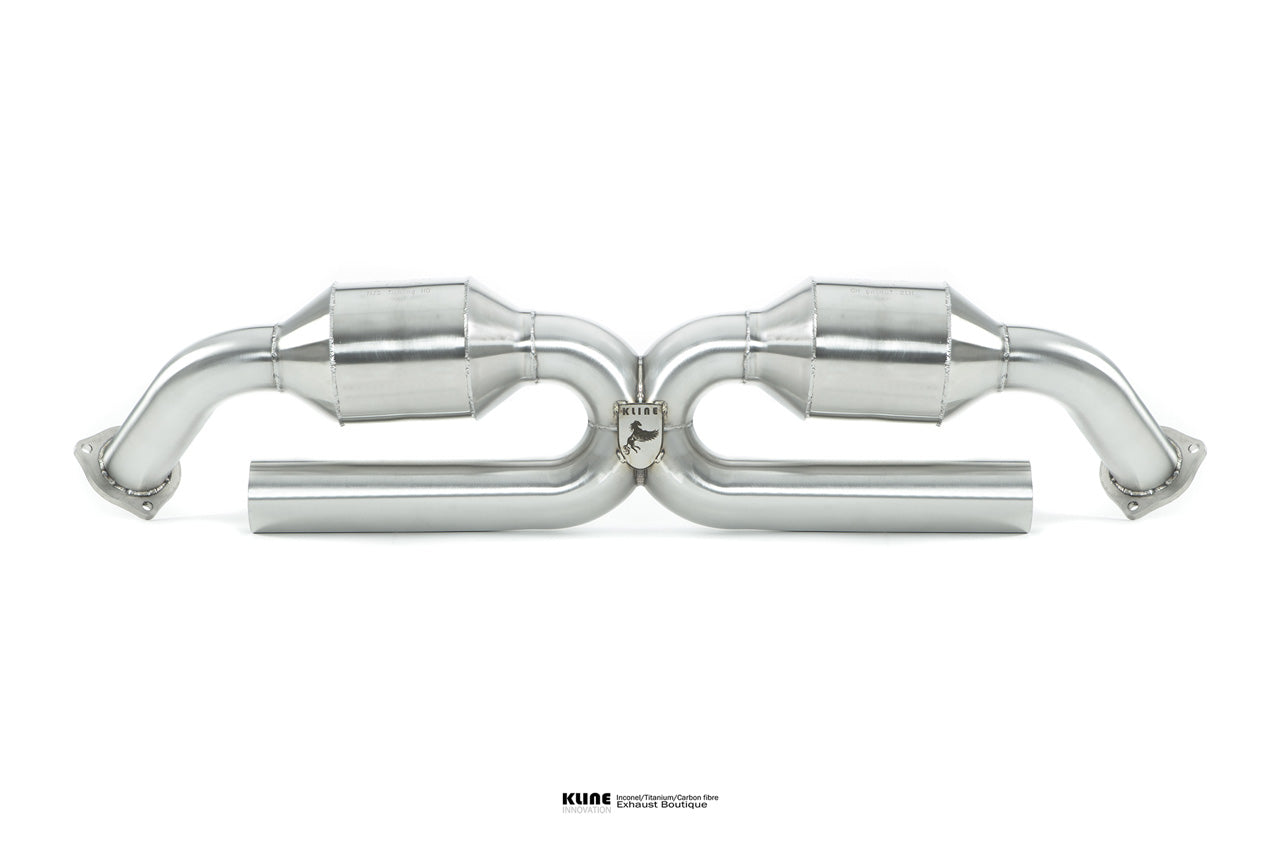

The first point that stood out, was the catalyst design. 600 cell oem cats, and absolutely no balance present in the factory exhaust. replacing this unit for a 200 or 100 cell sports catalyst we were able to achieve some moderate power and torque gains. the second design alteration was to remodel the way in which the exhaust gases interact from opposing banks. Replacing the two piece design for a single piece with our trademark tight radius, laminar flow X pipe, we were able to alter the exhaust pitch, and smooth out the imbalance, this resulted in a far more high revving race car like sound.

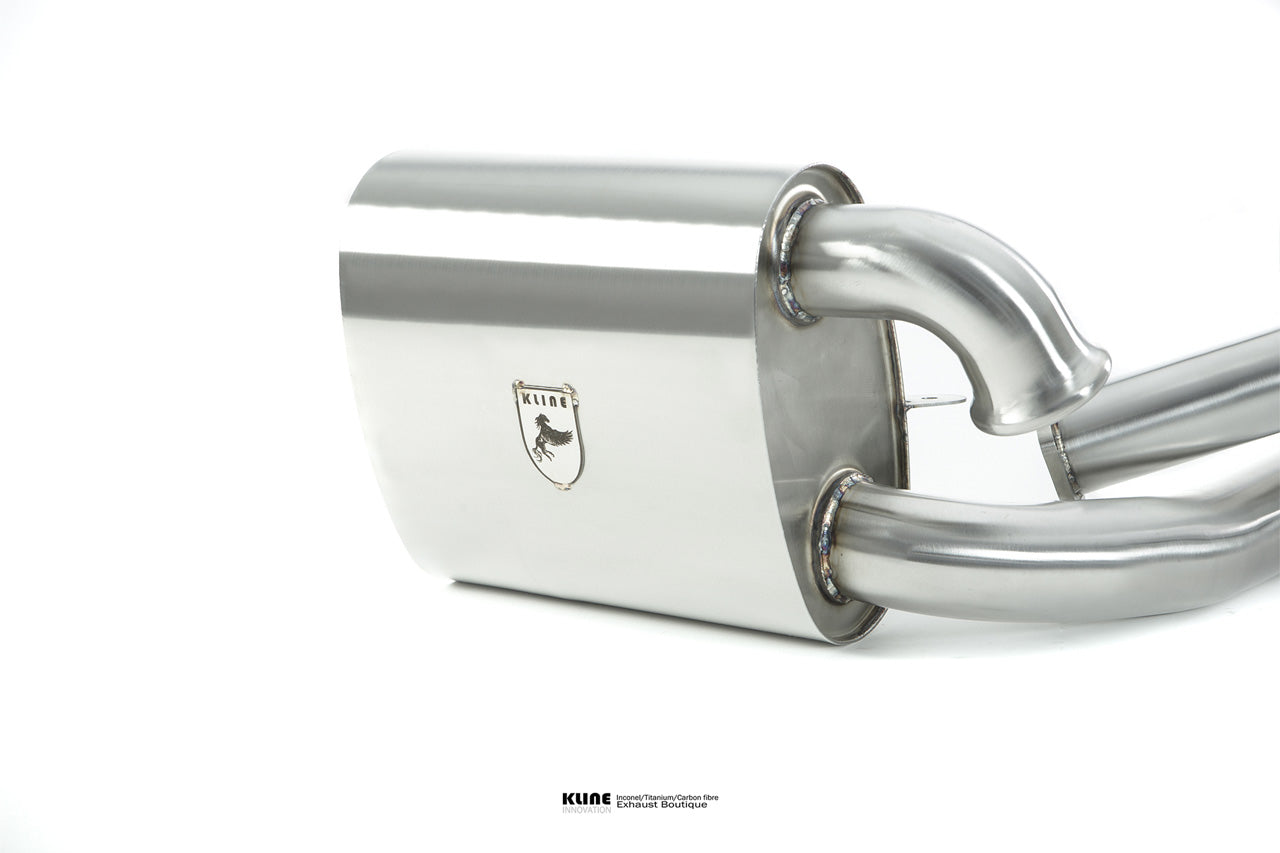

The factory silencers, heavy, cumbersome, and restrictively chambered, produce a tinny note to the exhaust. We needed to enrich the sound, as well as improve gas transit, and simultaneously reduce weight. weight reduction and sound enrichment proved to be fairly straightforward with the simplification of the silencer design and removal of the multiple chambers. the addition of a single chamber volumetricaly tuned towards low rev resonance, removed bass noise at cruising speeds, while a rich raucious vocal is achieved at hard throttle above 4000rpm

Specifications:

Cross Sections:

Cross sections in pre catalyst; 57mm OD chosen specifically to keep lambda ranges in A/F stoichiometry.

Post catalyst cross section; 63mm OD into 1D CLR tight radius X pipe.

Silencer sections; 63mm OD pre silencer, 57mm OD post silencer, single chamber with acoustic fill section.

Materials:

Available in standard 304 grade stainless steel weight, silencers 6kg each, cat section 6.1kg, total 18.1kg, manifolds 4kg each, total full system +manifolds 26.1kg

Inconel 625, formula one grade exhaust material weight, silencers 3.8kg each, cats 3.5kg, total 11.1kg, manifolds 1.9kg each, total full system + manifolds 14.9kg

Titanium G2 silencer sections are also available, weight is compariable with Inconel.

Catalyst:

100 cell or 200 cell HJS cats are used as standard.

Features:

• Silencer section upgrade for Porsche 996 Carrera
• Improved exhaust sound refinement
• Sporty and refined exhaust note
• Premium stainless steel construction
• Designed for precise fitment on Porsche 996 Carrera
• Easy installation with included hardware
• Compatible with factory or aftermarket exhaust systems
• Potential for improved fuel efficiency

Vehicle Fitment Chart:
