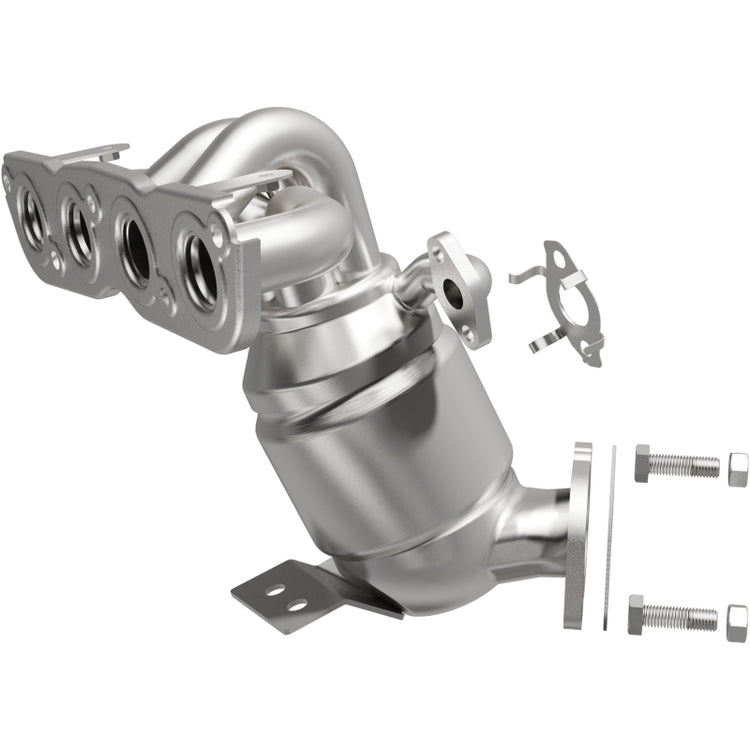

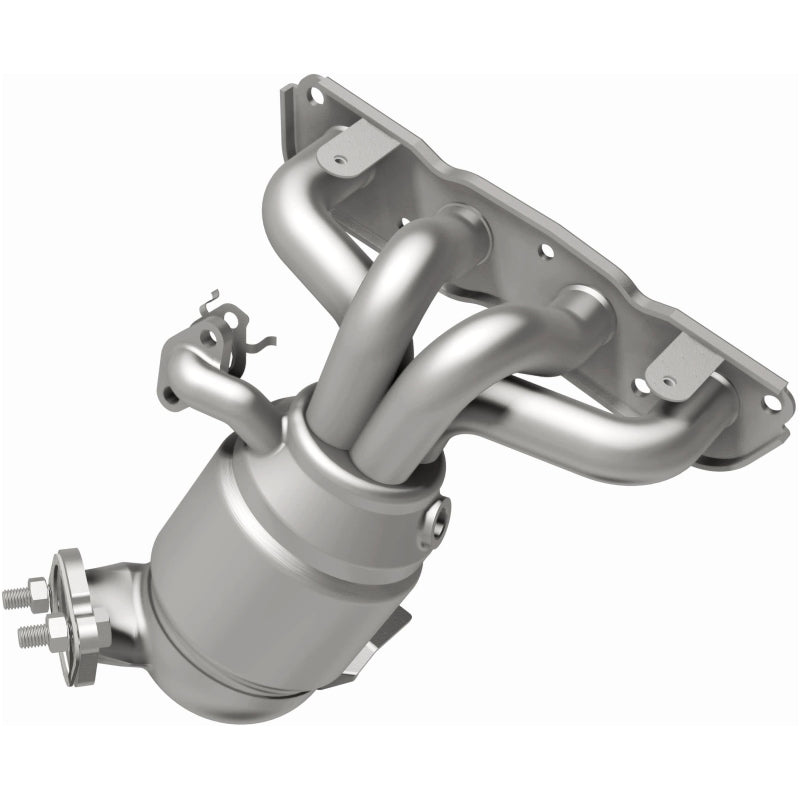

MagnaFlow 22-231 manifold converter for the Ioniq and Niro hybrid with its studs and gasket

}

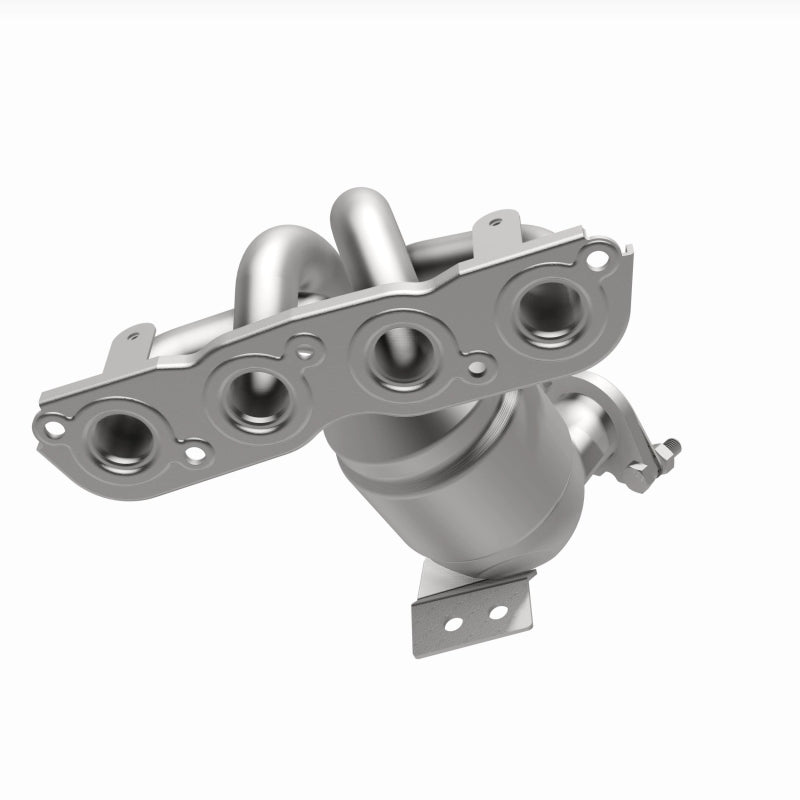

Front face of the four-port manifold flange

}

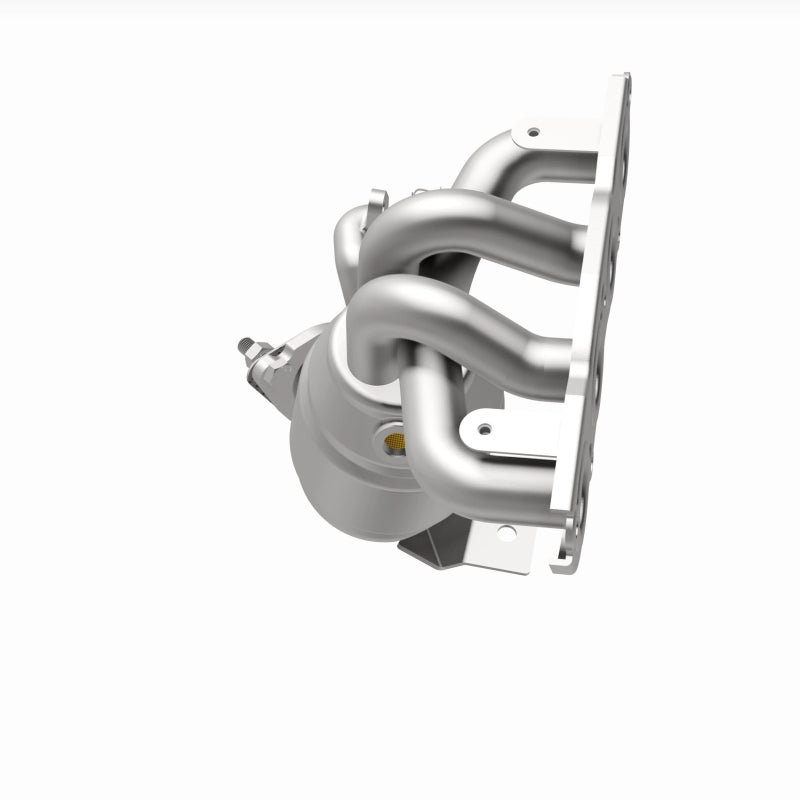

Side view of the catalyst body hanging below the runners

}

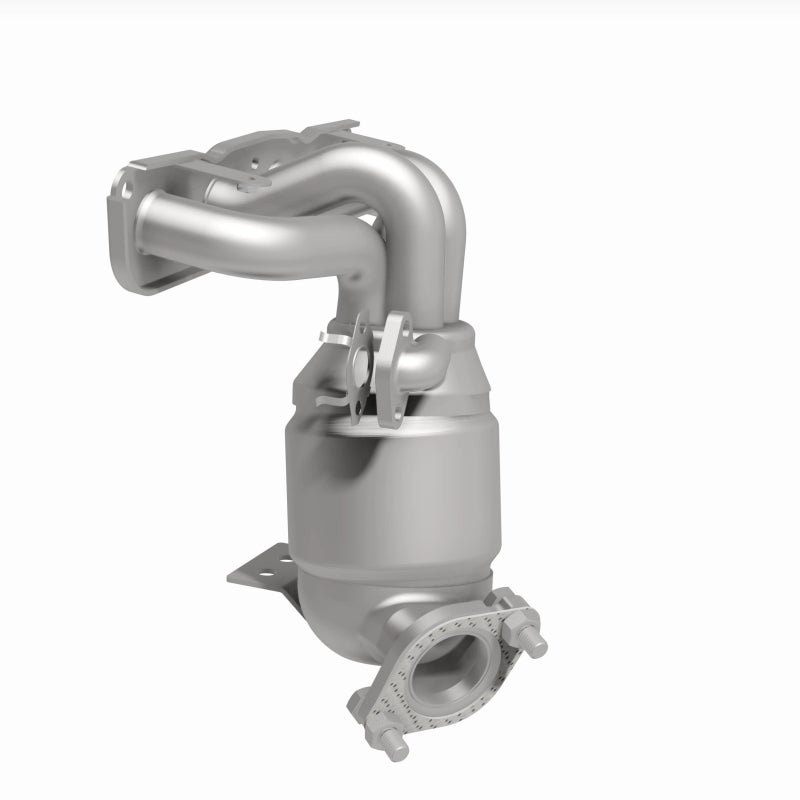

Rear view with the heat-shield mounting plate behind the runners

}

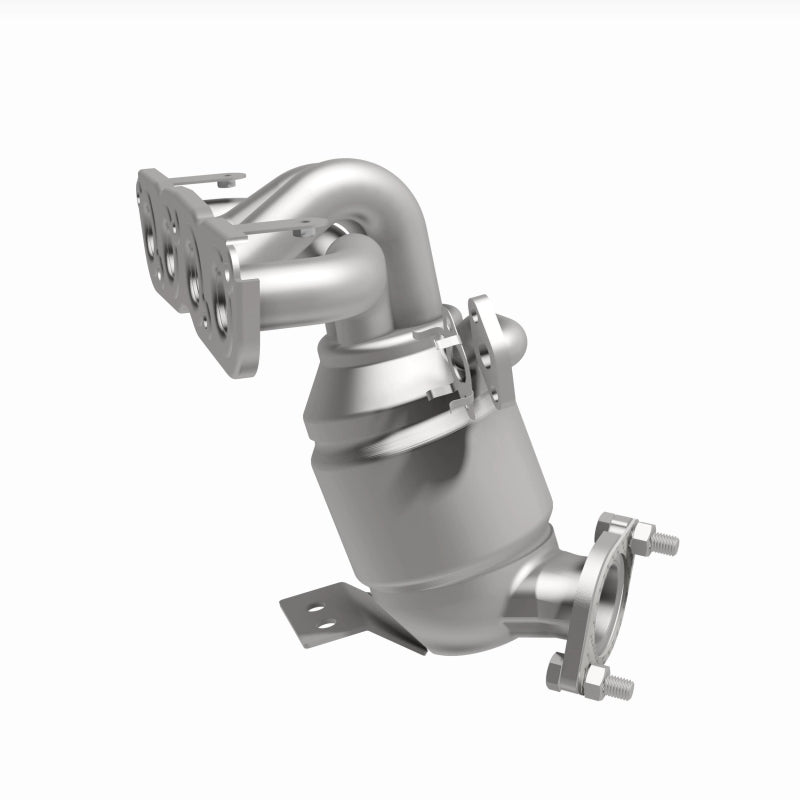

Three-quarter view of the runners curving down into the catalyst

}

}

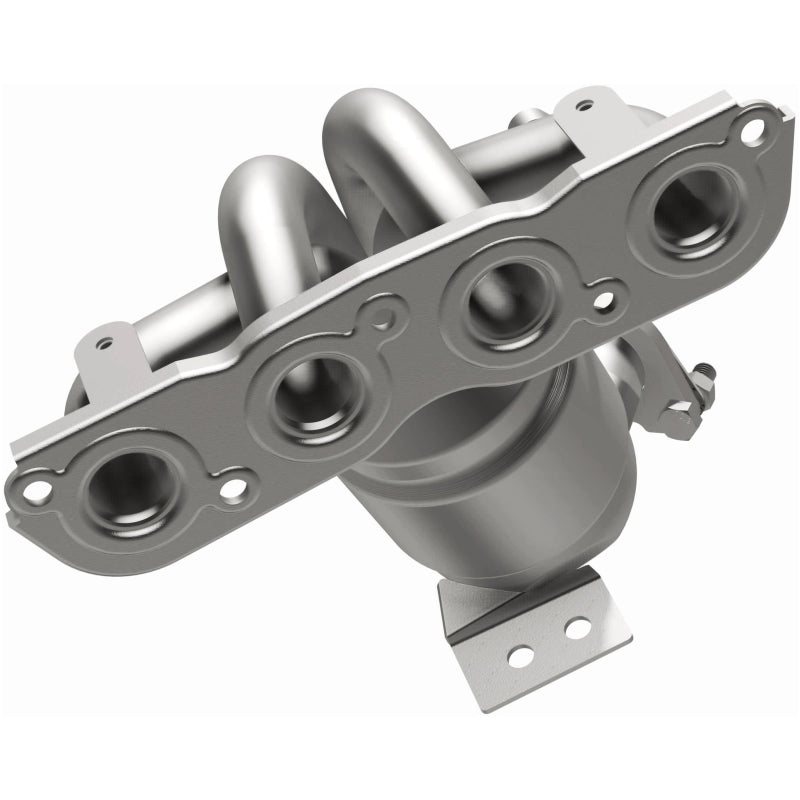

Out-of-box close view of the four exhaust ports

}

}

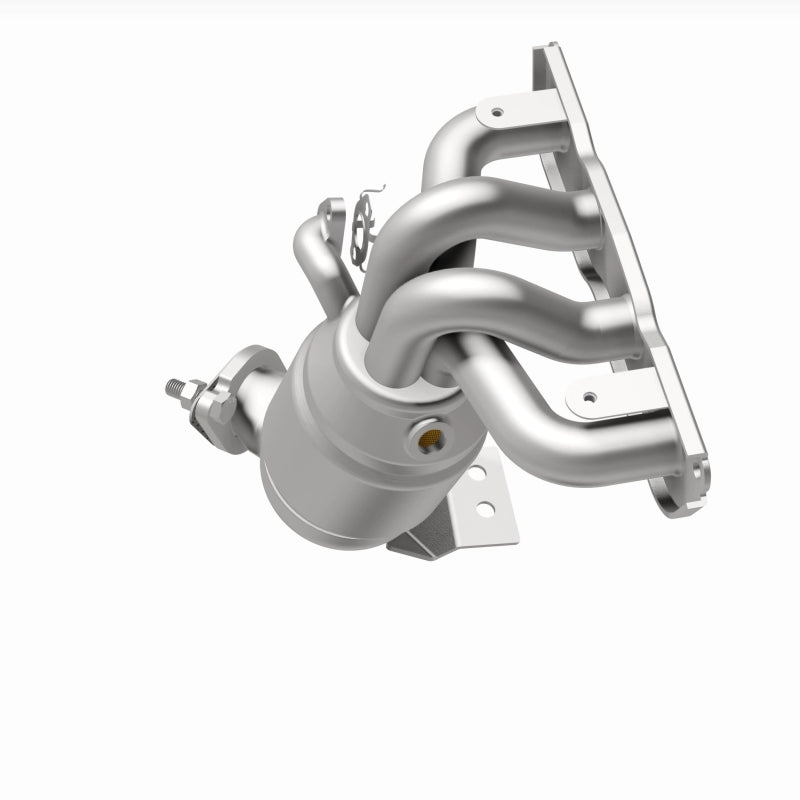

Catalyst body and outlet flange from the side

}

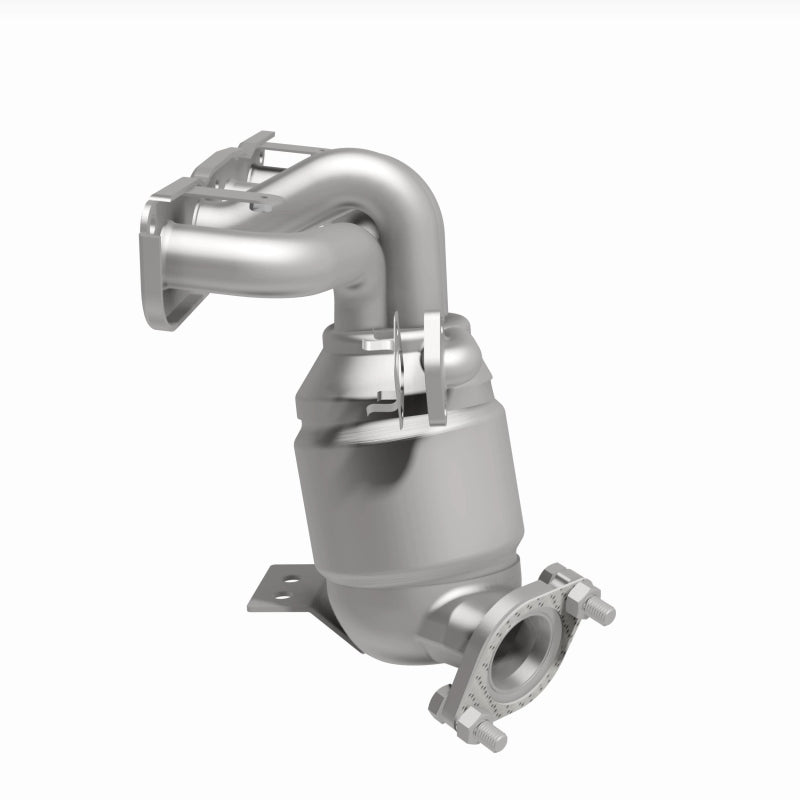

Out-of-box angled view of the runners and converter

}

MagnaFlow OEM Grade Manifold Converter 2017-2022 Ioniq / Niro 1.6L

Ask an expert

Brand: MagnaflowSKU / Part #: MAG22-231

Regular price: $822.00
Regular price: ~~$822.00~~
Sale price: $822.00
Unit price: per

Apply at checkout

Subtotal: $822.00

Quantity:

MagnaFlow OEM Grade Manifold Converter 2017-2022 Ioniq / Niro 1.6L

Subtotal: $822.00

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The Ioniq and Niro hybrids share a 1.6L engine whose catalyst sits right on the exhaust manifold, so when it fails the whole cast assembly has to come off. MagnaFlow 22-231 replaces that manifold-converter unit (OE 28510-03HA4) on 2017-2022 Ioniq and Niro hybrids and plug-in hybrids. It is OEM Grade, which matters on a hybrid: the engine cycles on and off constantly, and the catalyst has to keep up with the factory OBD-II monitor.

Features

Replaces Hyundai/Kia OE manifold converter 28510-03HA4
OEM Grade loading for the hybrid's stop-start catalyst monitoring
Four-port manifold and catalyst in one bolt-on piece
Fits Ioniq Hybrid and Plug-In and Niro Hybrid and Plug-In, 2017-2022
Single laser-fusion weld and 308 stainless MIG welds
Flange gaskets, bolts and nuts included

What is in the box

2 x flange gaskets
2 x bolts
2 x nuts

Specs

Part number	22-231
Type	OEM Grade Manifold Converter
Emissions	Federal/EPA compliant (not for CARB states)
Grade	OEM Grade
Shipping weight	6.9 lb

Installation

Bolts to the cylinder head and down-pipe flange at the factory studs; replace the manifold gasket at the same time. Professional installation is recommended. Federal/EPA only: not legal for sale or installation in California, Colorado or New York.

Fitment notes

Check the fitment table below against your vehicle, including trim and engine.

Fitment

Make	Model	Chassis	Year	Engine
Hyundai	Ioniq (Hybrid Blue, Hybrid Limited, Hybrid SE, Hybrid SEL, Plug-In Hybrid, Plug-In Hybrid Limited, Plug-In Hybrid SE, Plug-In Hybrid SEL)	—	2017-2022	—
Kia	Niro (Plug-In Hybrid EX, Plug-In Hybrid EX Premium, Plug-In Hybrid LX, Plug-In Hybrid LXS, s Touring, Touring, Touring Launch Edition, EX, EX Premium, FE, LX, LXS, LXS Special Edition, Touring Special Edition)	—	2017-2022	—

Fitment

Year	Make	Model
2017–2022	Hyundai	Ioniq
2017–2022	Kia	Niro

Not sure? Text us your VIN and we’ll confirm.
