Mishimoto 2017+ Honda Civic Type R Baffled Oil Catch Can Kit - Red

The Mishimoto baffled oil catch can kit with the rallye red bracket is a direct-fit blow-by solution for the US Honda Civic Type R: the 2017-2021 FK8, the 2021 Limited Edition and the 2023-2026 FL5. It sits in line with the PCV hose of the K20C1 2.0L turbo engine and traps oil mist before it can reach the intake manifold, so the intake valves and intercooler stay cleaner.

Why upgrade

The K20C1 combines direct injection, high compression and boost. That mix pushes crankcase vapor through the PCV system, and on a direct-injected engine nothing washes that oil off the back of the intake valves. Over time it bakes into carbon deposits and coats the charge pipes. This kit uses hoses shaped for the Type R PCV routing, with a one-way check valve built into the line so boost pressure never reaches the can or the crankcase. The bracket bolts to the firewall behind the fuel line bracket using factory bolts, which keeps the can easy to reach and drain. The Rallye Red bracket adds a factory-style accent under the hood. Mishimoto recommends checking the can every 1,000 miles until you know how much your car collects, and keeping the contents below the internal baffle.

Features

• Direct fit for left-hand-drive 2017-2021 and 2023-2026 Honda Civic Type R
• Hoses designed for the K20C1 PCV system
• Integrated one-way check valve keeps boost out of the can and crankcase
• Billet 6061 aluminum sealed can, fully serviceable, 2 oz capacity
• 50-micron bronze filter and internal air diverter improve oil separation
• Firewall bracket in black or Rallye Red
• Installs in about 30 minutes
• Mishimoto Lifetime Warranty

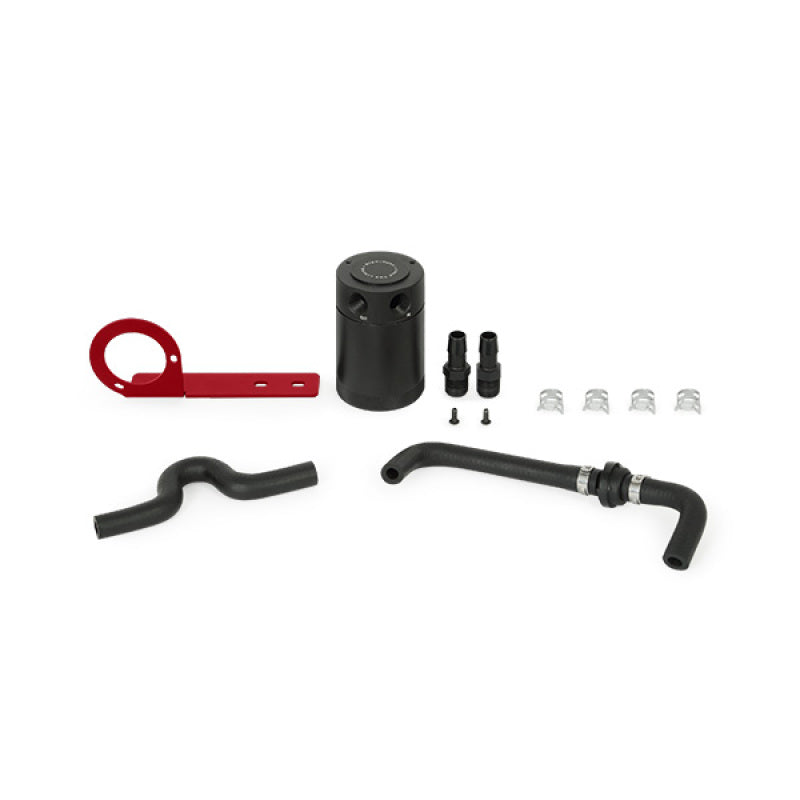

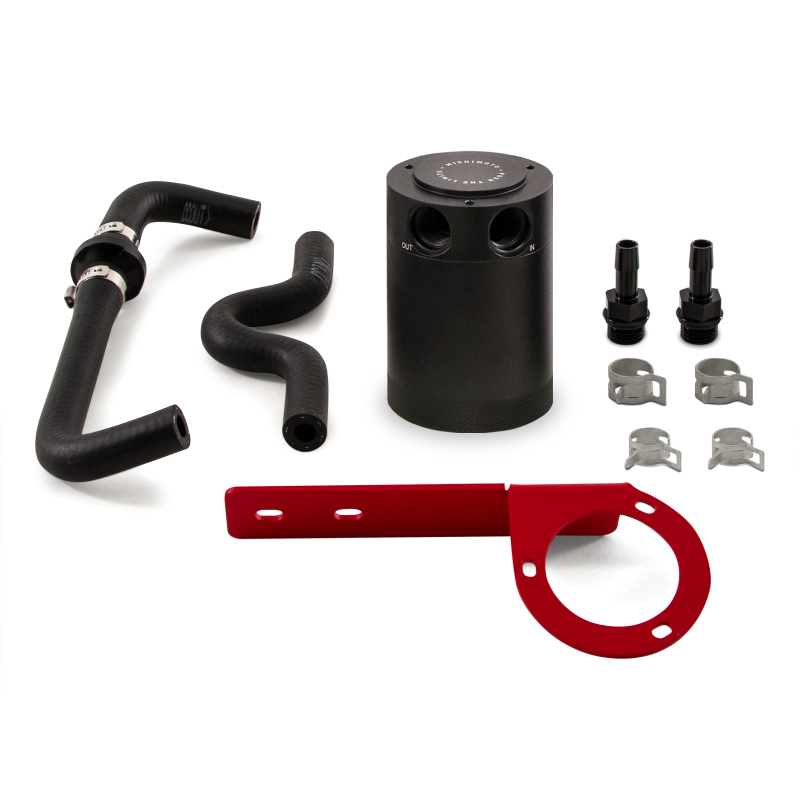

What's Included

• (1) Compact baffled oil catch can
• (1) Application-specific mounting bracket
• (2) Direct-fit PCV hoses (one-way check valve built in)
• (4) Spring clamps
• (2) 3/8-in aluminum barbed fittings
• Mounting hardware
• Mishimoto Lifetime Warranty

Specifications

Fitment Notes

Fitment follows Mishimoto's published US vehicle list and matching US dealer application tables: 2017-2021 Civic Type R, 2021 Civic Type R Limited Edition and 2023-2026 Civic Type R. There was no 2022 US Type R. The refreshed 2027 Type R is not listed yet, so it is not shown. Left-hand-drive only.
