Mishimoto 1992-1995 Honda Civic / 1993-1997 Civic del Sol K-Series

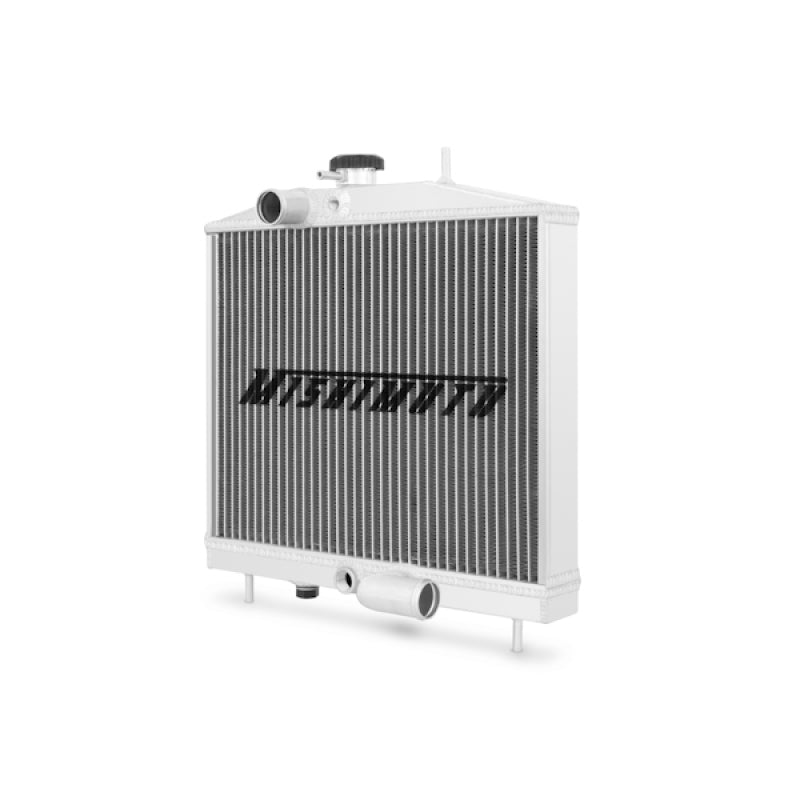

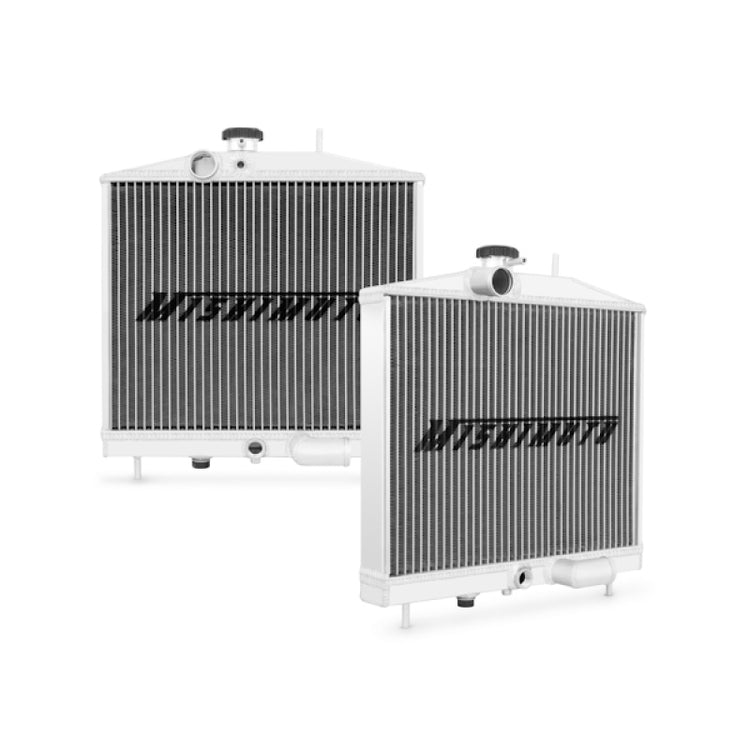

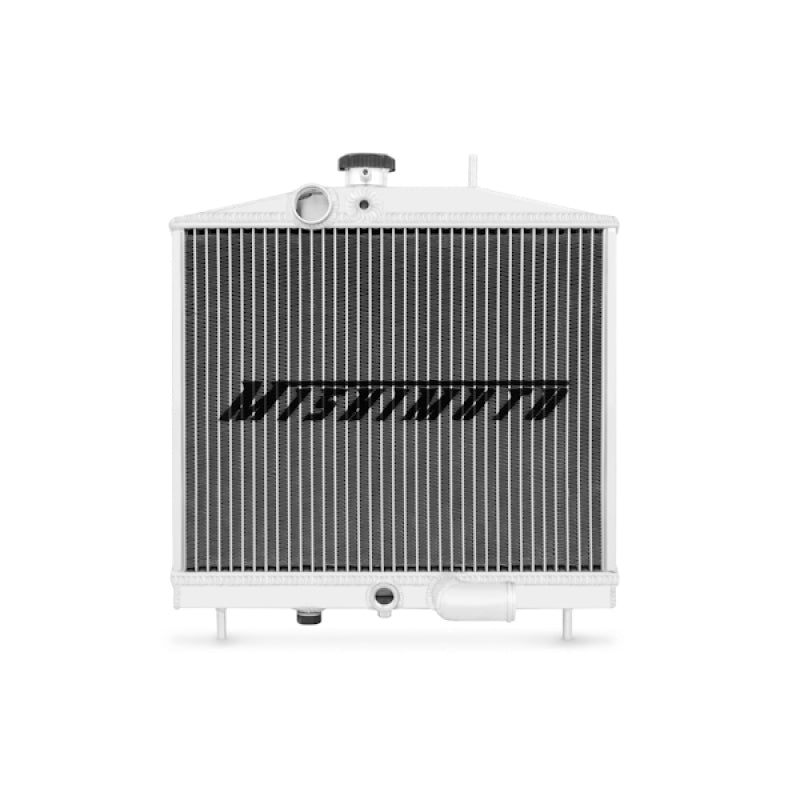

This Mishimoto performance aluminum radiator is a direct-fit upgrade for 1992-1997 Honda applications covering Civic CX, Civic DX, Civic EX, Civic LX, Civic Si. It replaces the weak points of the stock part with stronger materials and better flow or cooling so heat, boost and abuse stay under control on street and track duty. AutoTalent lists verified US-market fitment in the table below.

Why upgrade

Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps. Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind. This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations. These kits are engineered around real chassis packaging, so hoses, coolers and adapters line up without fabrication on the listed years. Follow the published torque specs and install guide, reuse sensors where instructed, and confirm clearances if you run other supporting mods. Every unit ships with the Mishimoto Lifetime Warranty for as long as you own it.

Features

• Two-row, 1.57-inch thick efficient brazed aluminum core provides substantial fluid capacity and optimal heat dissipation — engineered specifically for the K-series swap in the EG Civic chassis.
• Bolt-in cooling solution simplifies the K-series engine swap process — no fabrication or custom hose routing required to complete the cooling system.
• 1.3 bar high-pressure radiator cap, threaded fan switch port for the stock sensor, and Magnetic Drain Plug all included — complete out of the box.
• Full aluminum construction with TIG-welded end tanks replaces the plastic-tank radiator options that crack under heat cycling and boost pressure.
• Two-row brazed aluminum core efficiently transfers thermal energy for naturally aspirated and forced induction K-series builds at every output level.
• Confirmed direct fit for the 1992–1995 Honda Civic EG chassis with K-series engine swap — no cutting, fabricating, or adapter work required.
• Handles the cooling demands of naturally aspirated and forced induction K-series setups running street, track, and autocross duty.

What's Included

• Mishimoto Radiator
• Mishimoto Radiator Cap

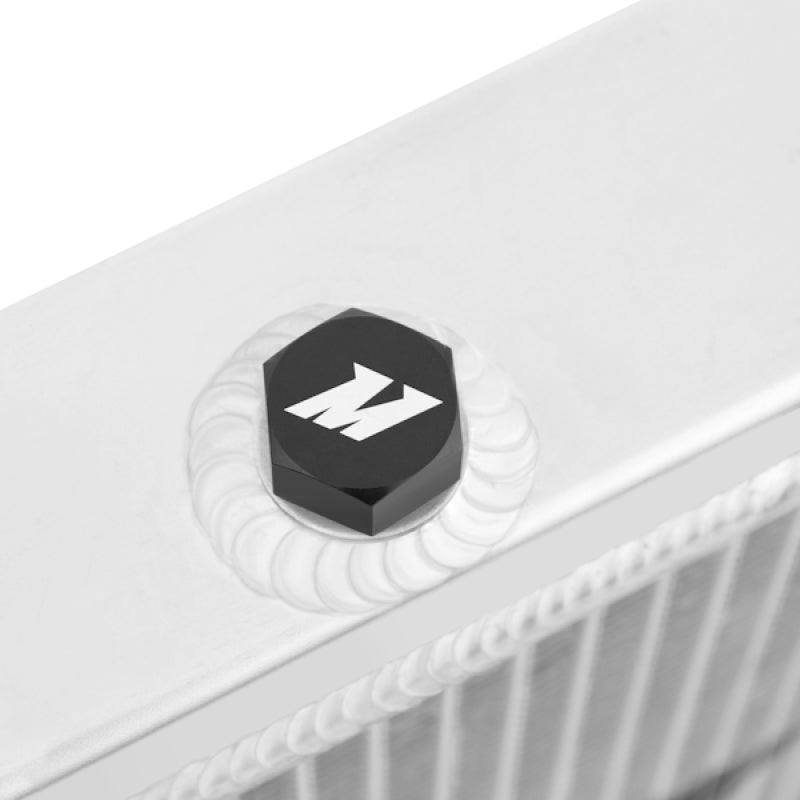

• Magnetic Drain Plug w/ Dowty Oil Seal
• Mishimoto Lifetime Warranty

Specifications

Fitment Notes

Verified against Mishimoto US applications and dealer listing for 1992-1997 (7 rows). Years extended to 2027 where the US model remains in production.

Vehicle Fitment
