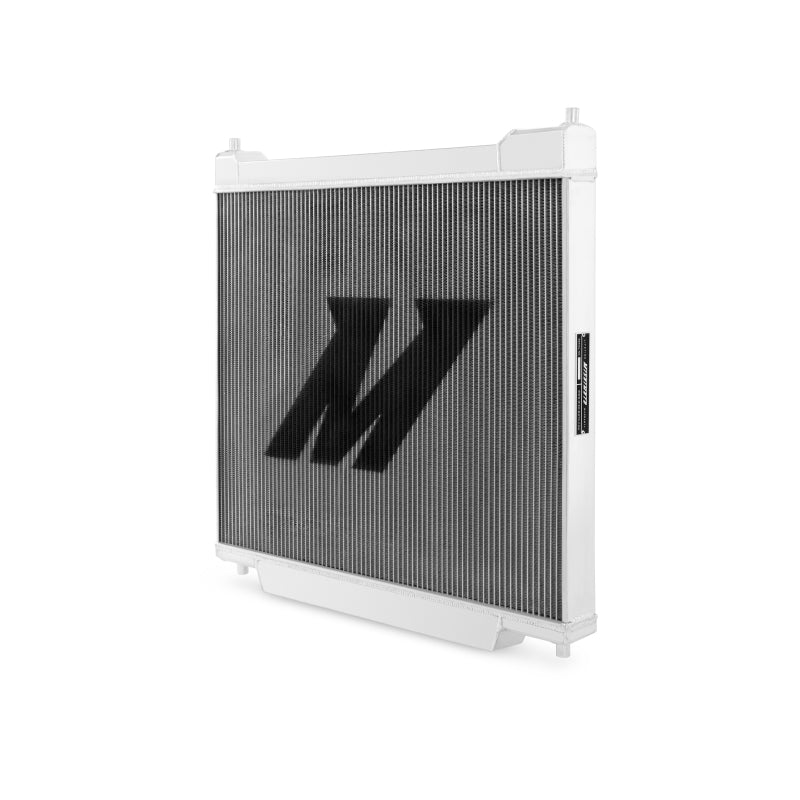

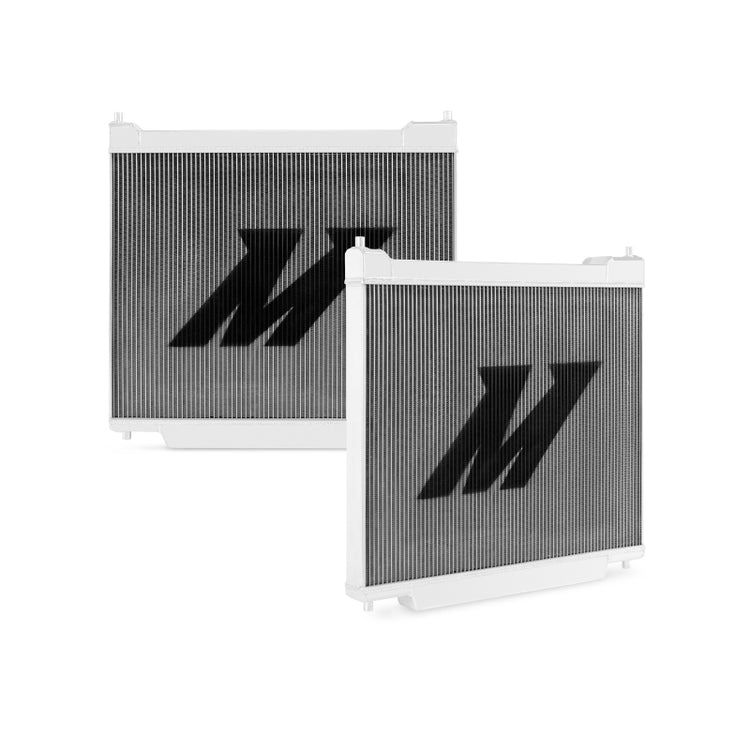

Mishimoto 1995-1997 Ford 7.3L Powerstroke Radiator

This Mishimoto performance aluminum radiator is a direct-fit upgrade for 1995-1997 Ford applications covering F-250 Eddie Bauer, F-250 HD, F-250 HD XL, F-250 Special, F-250 XL. It replaces the weak points of the stock part with stronger materials and better flow or cooling so heat, boost and abuse stay under control on street and track duty. AutoTalent lists verified US-market fitment in the table below.

Why upgrade

The 7.3 Powerstroke is well known for its reliability and longevity, so why not pair an amazing engine with a radiator that can keep up! Mishimoto has released a performance aluminum radiator for the 1995-1997 Ford 7.3L Powerstroke. Mishimoto engineers these kits around real chassis packaging, so hoses, coolers and adapters line up without fabrication on the listed years. Follow the published torque specs and install guide, reuse sensors where instructed, and confirm clearances if you run other supporting mods. Every unit ships with the Mishimoto Lifetime Warranty for as long as you own it.

Features

• Two-row, 2.2-inch thick brazed aluminum core provides ideal fluid temperatures during all driving conditions — built for the towing and hauling demands of the 7.3L Powerstroke.
• Increased fluid capacity and superior heat dissipation over the factory plastic-tank radiator keep temps in check when transporting heavy loads in extreme environments.
• Magnetic Drain Plug included for clean, debris-free maintenance — no additional hardware needed for a complete install.
• Full aluminum construction with TIG-welded end tanks replaces the stock plastic end-tank radiator that cracks under the sustained heat and pressure of diesel operation.
• Two-row brazed aluminum core with 2.2-inch thickness efficiently moves heat into the airstream faster than the lower-volume OEM unit.
• Confirmed direct fit for 1995–1997 OBS Ford trucks equipped with the 7.3L Powerstroke — no cutting, fabricating, or adapter work required.
• Oversized core handles the thermal demands of stock and modified 7.3L Powerstroke builds, including tuned and compound turbo setups.

What's Included

• Mishimoto Radiator
• Magnetic Drain Plug
• 1/8-inch NPT Plug
• Mishimoto Lifetime Warranty

Specifications

Fitment Notes

Verified against Mishimoto US applications and dealer listing for 1995-1997 (11 rows). Years extended to 2027 where the US model remains in production.

Vehicle Fitment
