VRSF N55 Downpipe for F30 335i, 435i, M235i, M2 | 2012-2018

The VRSF N55 downpipe replaces the factory downpipe and its restrictive catalytic converter on F-chassis BMWs with the single-turbo 3.0-liter six. It fits the F30 335i, the 435i in every body style, the M235i and the N55 M2. Pick the 3.5-inch version for early cars or the 4-inch version for later ones, then choose a catless race pipe or a 200-cell high-flow catted pipe.

What It Does

The factory downpipe holds a dense converter right behind the turbo, where back pressure costs the most. Replacing it lets the turbo spool sooner and hold boost more easily, and the exhaust note gets deeper and sharper. VRSF measures 20 to 25 hp with a tune. The catted version keeps a 200-cell high-flow converter for drivers who want less smell and a more moderate sound.

Which Size Do I Need?

BMW changed the turbo outlet in mid-2013. Cars built up to July 2013 use the 3.5-inch downpipe. Cars built from August 2013 on, including every 435i, M235i and M2, use the 4-inch version. The turbo-to-downpipe connection on your car is the easiest way to confirm.

Materials and Construction

Each downpipe is hand crafted and TIG welded from 304 stainless steel with smooth radius bends, and the flanges are CNC machined from 304 stainless. The optional Cerakote high-temperature ceramic coating is rated to 1,800 F and keeps more heat inside the pipe, which helps lower engine bay, intake and oil temperatures.

Features

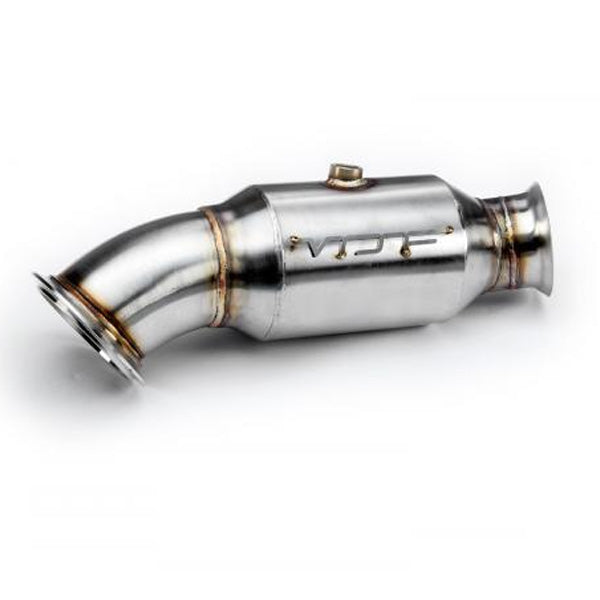

• Catless race or 200-cell high-flow catted
• 3.5in or 4in to match your production date
• Hand TIG-welded 304 stainless steel
• CNC 304 stainless flanges
• Optional Cerakote high-temp coating
• 20-25 hp with a tune (VRSF figures)

What Is Included

• VRSF N55 downpipe in the size, type and finish you choose

Required Parts

• An engine tune is needed for either version to run without fault codes.
• Turbo-to-downpipe V-band clamps in 3.5in and 4in are optional add-ons above if your original clamp is worn.

Specs

• Part numbers: 10302020, 10302022, 10302021 (3.5in race, race Cerakote, catted); 10302010, 10302012, 10302011 (4in race, race Cerakote, catted)
• Brand: VRSF
• Material: 304 stainless steel, TIG-welded
• Finish: brushed or Cerakote high-temp coating
• Catalyst: none (race) or 200-cell high flow (catted)
• Shipping dimensions: 16 x 6 x 5 in (41 x 15 x 13 cm) for the 3.5in race, 3.5in race Cerakote, 4in race, 4in race Cerakote; 16 x 6 x 5 in (41 x 15 x 13 cm) for the 3.5in catted; 16 x 6 x 5 in (41 x 15 x 13 cm) for the 4in catted
• Shipping weight: 7 lb (3.2 kg) for the 3.5in race, 3.5in race Cerakote, 4in race, 4in race Cerakote; 10 lb (4.5 kg) for the 3.5in catted; 9 lb (4.1 kg) for the 4in catted

Fitment Notes

• Lifetime warranty on the downpipe; 1-year warranty on the Cerakote coating and the catted converter.
• Race downpipes remove the catalytic converters and are sold for off-road and competition use only. A tune is needed to run them without fault codes.
