VRSF X5M / X6M Race Downpipes, E70 E71 F85 F86 | 2010-2019

The VRSF race downpipes replace the factory downpipes and converters on the S63-powered BMW X5 M and X6 M, from the first-generation E70 and E71 through the F85 and F86. The mid-pipe connection changed between generations, so VRSF offers a 2-bolt flange version and a slip-fit version, and the slip-fit version is also available with a heat shield wrap.

What It Does

The S63 hot-vee layout puts the turbos and their downpipes in a very hot, tight space, and the factory converters add a lot of back pressure. Replacing them helps the turbos spool faster and lowers heat around the engine. VRSF measures 50 to 55 hp and 60 to 65 lb-ft at the wheels with a tune.

Which Flange Do I Need?

E70 X5 M and E71 X6 M models use the 2-bolt flange. F85 X5 M and F86 X6 M models use the slip-fit connection. If you are unsure, send us a photo of the joint between your downpipe and cat-back and we will confirm fitment.

Materials and Construction

The pipes are hand made from mandrel bent 304 stainless steel and TIG welded with smooth radius bends. They use a smooth, full-size design instead of necking down near the turbos, and CAD/CAM-designed CNC flanges. They fit left- and right-hand-drive vehicles without modification.

Features

• 2-bolt (E70/E71) or slip-fit (F85/F86) flange
• Mandrel-bent 304 stainless steel
• CAD/CAM CNC flanges

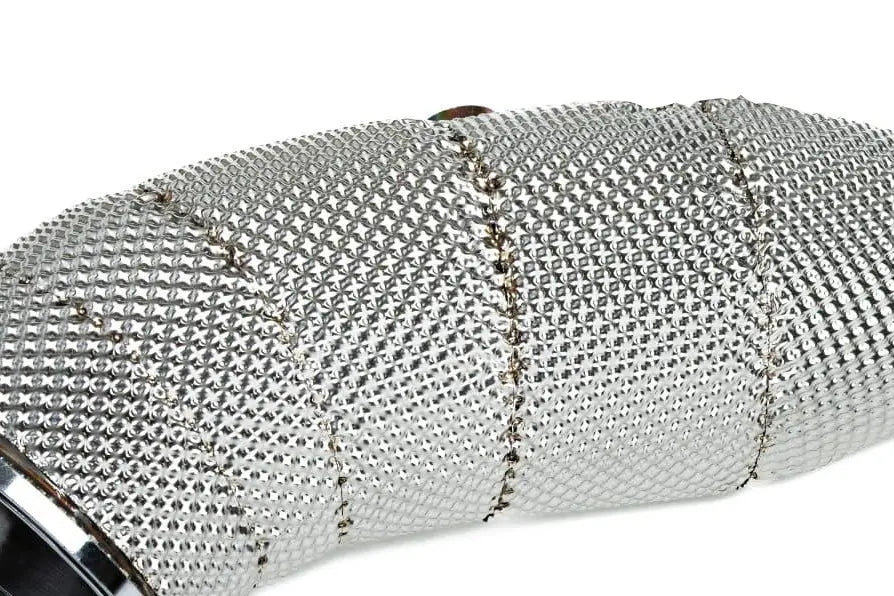

• Heat shield option on the slip-fit version
• 50-55 hp and 60-65 lb-ft at the wheels with a tune (VRSF figures)
• Fits LHD and RHD vehicles

What Is Included

• Pair of VRSF S63 race downpipes with the flange and finish you choose

Required Parts

• An engine tune is needed to run catless downpipes without fault codes.
• Turbo gaskets or V-band clamps are optional add-ons above.

Specs

• Part numbers: 10102063A (2-bolt), 10102070A (slip fit), 10102078A (slip fit with heat shield)
• Brand: VRSF
• Material: 304 stainless steel, TIG-welded
• Engine: S63 4.4L twin-turbo V8
• Type: catless race downpipes
• Shipping dimensions: 28 x 12 x 7 in (71 x 30 x 18 cm)
• Shipping weight: 14 lb (6.4 kg)

Fitment Notes

• X5 M and X6 M only. The N63-powered X5 and X6 xDrive50i use the VRSF N63 downpipes.
• Race downpipes remove the catalytic converters and are sold for off-road and competition use only. A tune is needed to run them without fault codes.
• Browse more in our VRSF range.
