Active Autowerke F-150 3.5L EcoBoost AFlow Downpipes

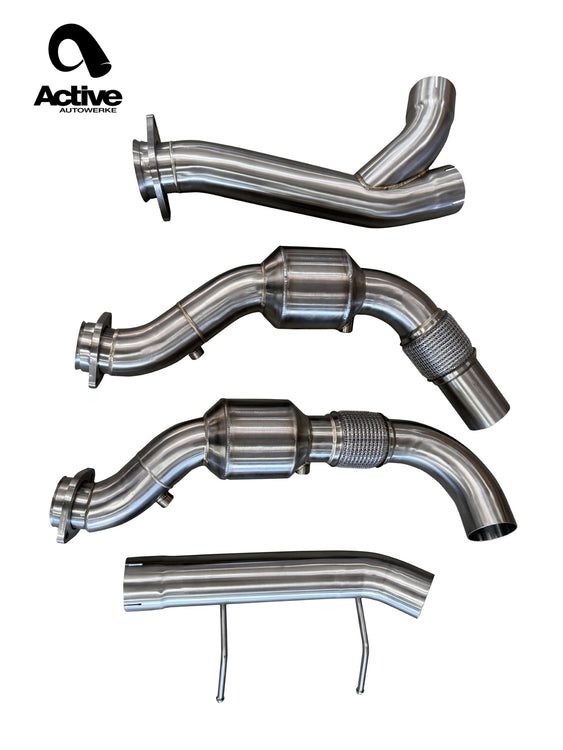

The Active Autowerke catted downpipes replace the restrictive factory downpipes on the second-generation 3.5L EcoBoost twin-turbo V6 in the 2017-2020 Ford F-150. Each side carries a 5 in Active Autowerke AFlow super high-flow catalytic converter, so the truck keeps a cat on both banks while the turbos get a much freer path out.

It is a direct bolt-on replacement for the factory parts and works with the stock cat-back or an aftermarket one, on both 2WD and 4WD trucks.

OBD2 compliant — no check engine light (CEL)

What It Does

Turbochargers run on exhaust energy, so anything that slows the gas down after the turbine slows spool. Larger mandrel-bent tubing and a high-flow cat cut back pressure, which helps the twin turbos build boost sooner and sharpens throttle response. Active Autowerke says the gains grow with a tune and supporting mods, and the truck picks up a deeper, more aggressive turbo note without excessive drone. Whether the truck tows during the week or sees a drag strip on the weekend, the downpipes are built to take the heat.

Materials and Construction

TIG-welded 304 stainless steel throughout, with 3 in mandrel-bent tubing for smooth flow. The converter uses a 400 cpsi substrate that is furnace brazed to the mantle for durability, and Active Autowerke rates this cat for engines up to 950 hp.

Features

• Pair of 5 in AFlow high-flow catalytic converters
• 3 in mandrel-bent tubing
• TIG-welded 304 stainless steel
• 400 cpsi catalyst substrate
• Cat rated up to 950 hp per Active Autowerke
• Bolt-on, no cutting or welding
• Fits 2WD and 4WD trucks

Specs

• Part number: 51-001A
• Brand: Active Autowerke
• Type: catted downpipes (pair)
• Catalyst: Active Autowerke AFlow, 5 in, 400 cpsi
• Piping: 3 in mandrel-bent
• Material: 304 stainless steel
• Engine: Ford 3.5L EcoBoost twin-turbo V6, second generation
• Shipping weight (Active Autowerke): 38 lb (17.2 kg)

Fitment Notes

• For trucks with the second-generation 3.5L EcoBoost only; the search filter shows all 2017-2020 F-150s, so check your engine before ordering.
• Active Autowerke fitment applies to US-model cars only.
• Active Autowerke covers the converter shell and tube ends for 5 years / 50,000 miles and the catalyst core for 2 years / 25,000 miles for the original buyer. Excessive burble (more than stock) voids that cover because it destroys the core. The pipework carries the standard 1-year warranty.
• Questions before you order? Call or text (310) 231-0292 or email Online@AutoTalent.com.
• Shop all Active Autowerke downpipes, every catted downpipe we carry, or the full Active Autowerke range.

FAQ

Does it fit 2WD and 4WD trucks?
Yes. Active Autowerke lists both.

Will my cat-back still fit?
Yes. It works with the factory cat-back or an aftermarket one.

Do I need a tune?
It bolts on without one; Active Autowerke says a tune adds more power.
