Active Autowerke GR Corolla GESI Catted Downpipe & Mid Pipe

The Active Autowerke GESI catted downpipe gives the Toyota GR Corolla a much freer path out of its turbo while keeping a catalytic converter in place. The GR Corolla shares its 1.6-liter turbocharged G16E-GTS three-cylinder with the GR Yaris, and in the GR Corolla it makes 300 hp. The factory downpipe is one of the main things holding it back. Active Autowerke built this piece after steady requests from its long-time customers who tune these cars.

The GESI catalyst is EPA-registered, rated 500-850hp, and backed by a 5-year / 50,000-mile warranty on the shell and tube ends. No check engine light, no compromises.

What It Does

A turbo can only spin as fast as the exhaust behind it lets the gas escape. The stock downpipe is restrictive, so the turbo spools later and has to work harder. This downpipe opens up the first section after the turbo with 4.5-inch tubing, then narrows to 3 inches at a stainless flex joint to meet the factory exhaust. The result is quicker spool and more power and torque, and Active Autowerke says no performance tune is needed to run it.

Materials and Construction

The downpipe is TIG-welded from 304 stainless steel with a 1.5 mm wall, and the upper V-band is cast stainless for a precise fit at the turbo. The GESI G-Sport ultra high output converter uses a 400-cell stainless substrate that is furnace-brazed to its mantle for durability. It reaches working temperature within about 9 seconds of a cold start and withstands up to 1,500°F.

Features

• GESI G-Sport Ultra High Output catalytic converter
• EPA-registered — 49-state legal, OBD2 compliant
• No check engine light (CEL)
• Rated 500-850hp
• 5-year / 50,000-mile warranty on shell and tube ends
• 4.5-inch 304 stainless tubing, tapering to 3 inches at the flex joint
• Bolt-on install with no cutting or welding
• Made by Active Autowerke in Miami, Florida

What Is Included

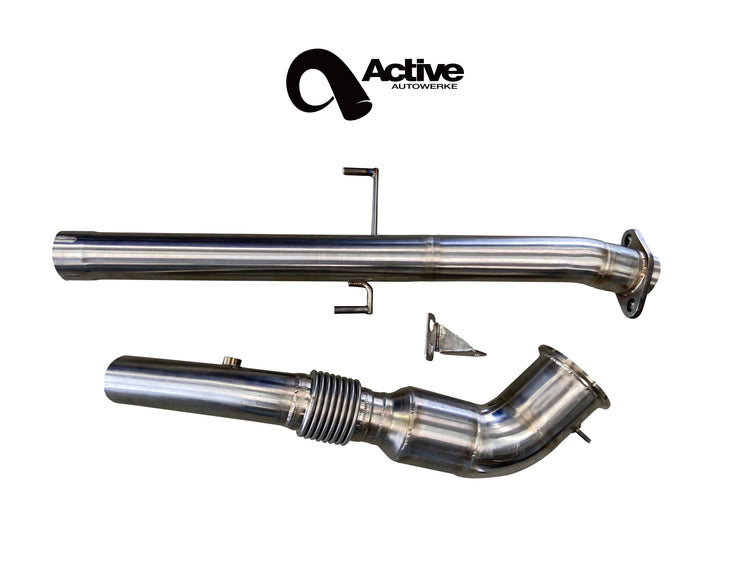

• GESI catted downpipe
• Straight mid pipe section with hanger brackets, as pictured

Specs

• Part number: 11-572
• Brand: Active Autowerke
• Type: catted downpipe with mid pipe
• Catalyst: GESI G-Sport ultra high output, 400 cpsi stainless substrate
• Material: 304 stainless steel, 1.5 mm wall
• Pipe size: 4.5 in, tapering to 3 in
• Engine: Toyota G16E-GTS 1.6L turbo inline-three
• Catalytic core warranty: 2 years / 25,000 miles (original buyer)
• Shipping weight: 60 lb (27.2 kg)

Fitment Notes

• Fits the US-market Toyota GR Corolla hatchback (GZEA14) with the G16E-GTS engine.
• Active Autowerke voids the catalyst warranty on cars with excessive burble tunes (louder than stock).
• Shop every Active Autowerke downpipe, all catted downpipes or the full Active Autowerke range.

FAQ

Do I need a tune?
Active Autowerke says no performance tune is needed. A tune is how most owners get the full benefit of the extra flow.

Does it fit the GR Yaris?
No. The GR Yaris was never sold in the US, and this part is listed only for the GR Corolla.

What is the difference between GESI and AFlow?
GESI is a G-Sport catalyst from an outside maker, while AFlow is Active Autowerke's own high-flow cat. This page is the GESI version.
