AMS Alpha Fuel System Triple Pump Kit | Lamborghini Huracan / Audi R8

The AMS Performance Alpha Fuel System Triple Pump Kit (ALP.37.07.0006-1) is AMS's highest-capacity in-tank fuel upgrade for the Lamborghini Huracan and Audi R8 V10. As part of the full Alpha Fuel System it supports 3,200+ hp on gasoline and 2,400+ hp on E85 while keeping OEM-like fit and function, with no half-tank minimum, no external surge tank and no loud pumps in the engine bay.

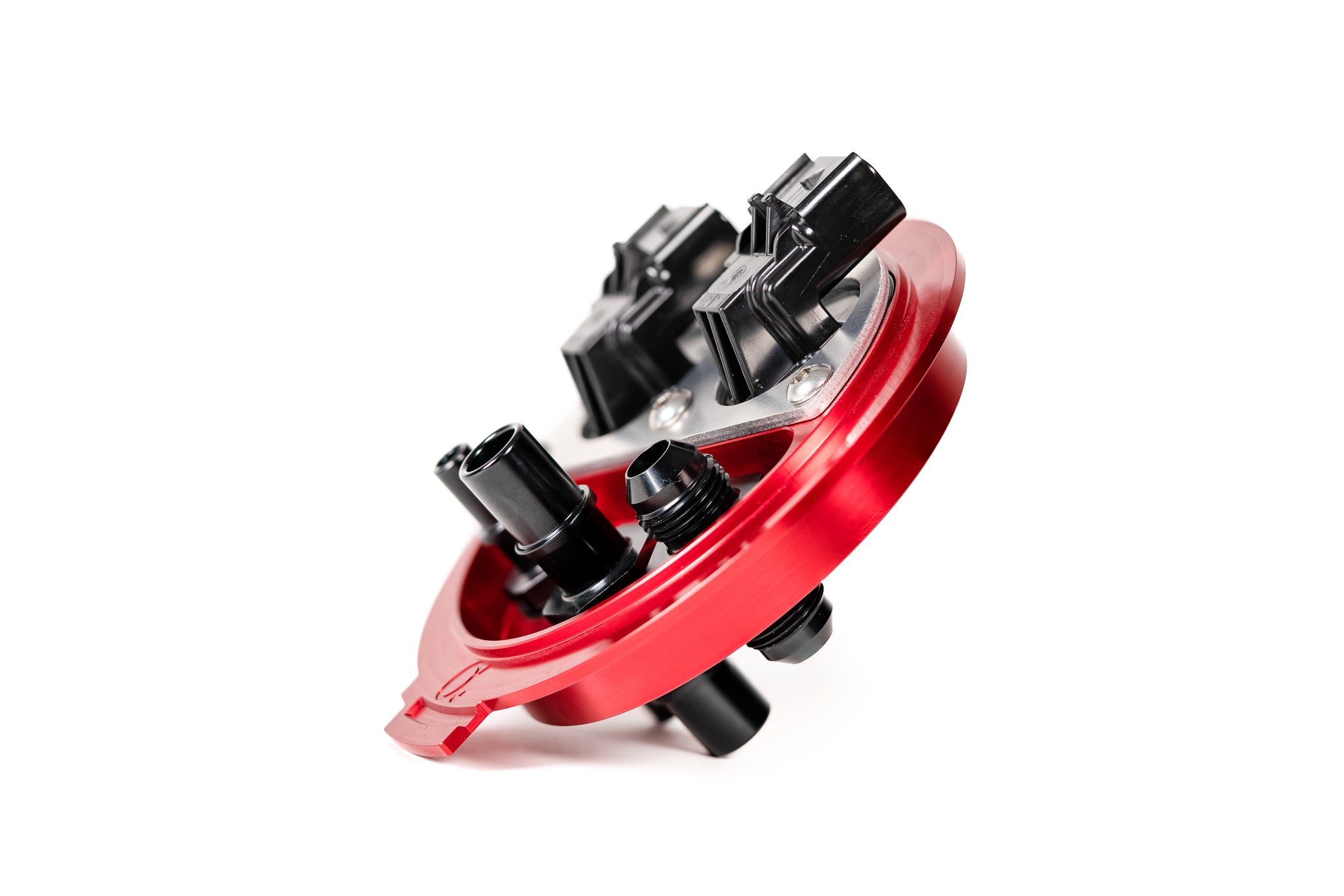

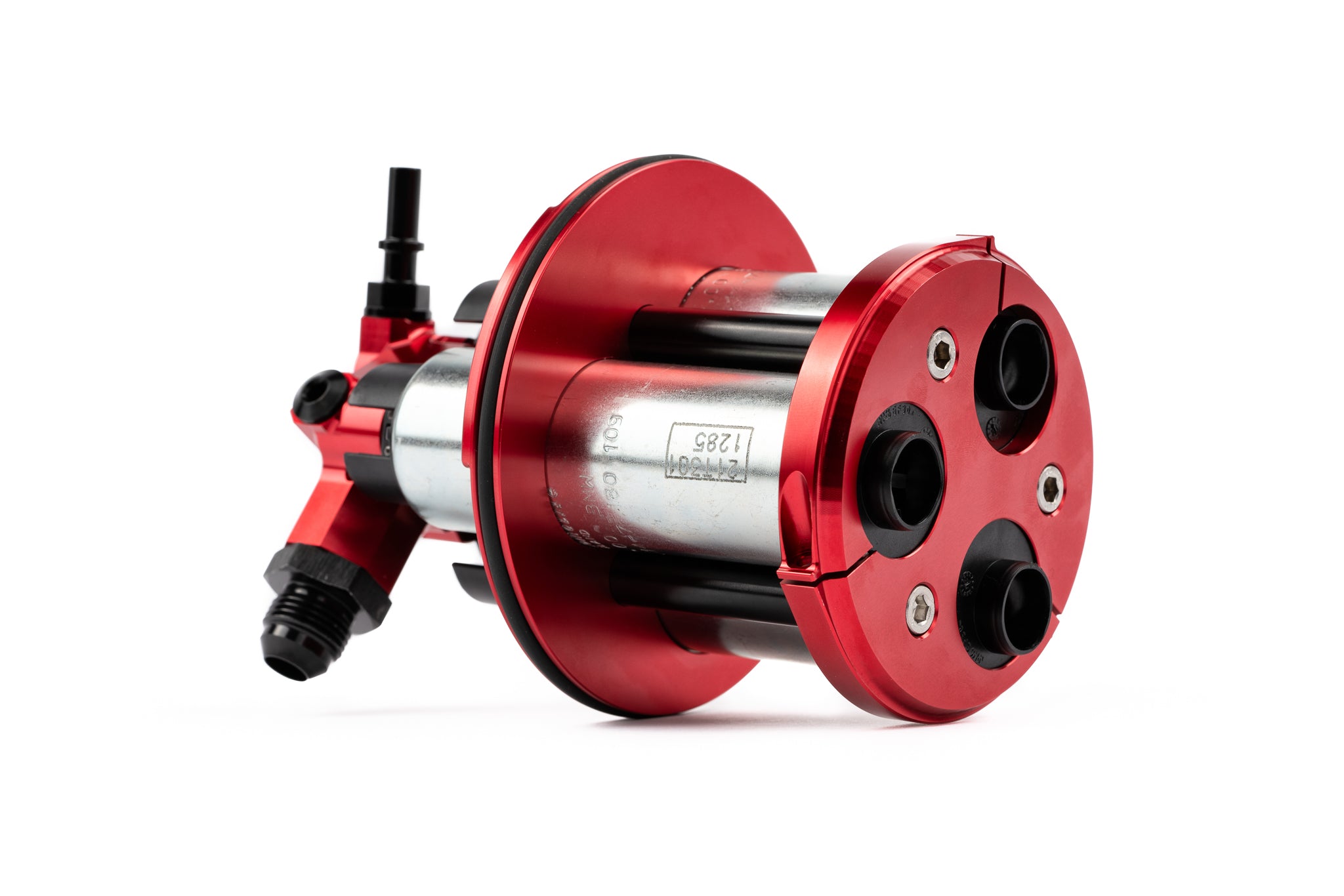

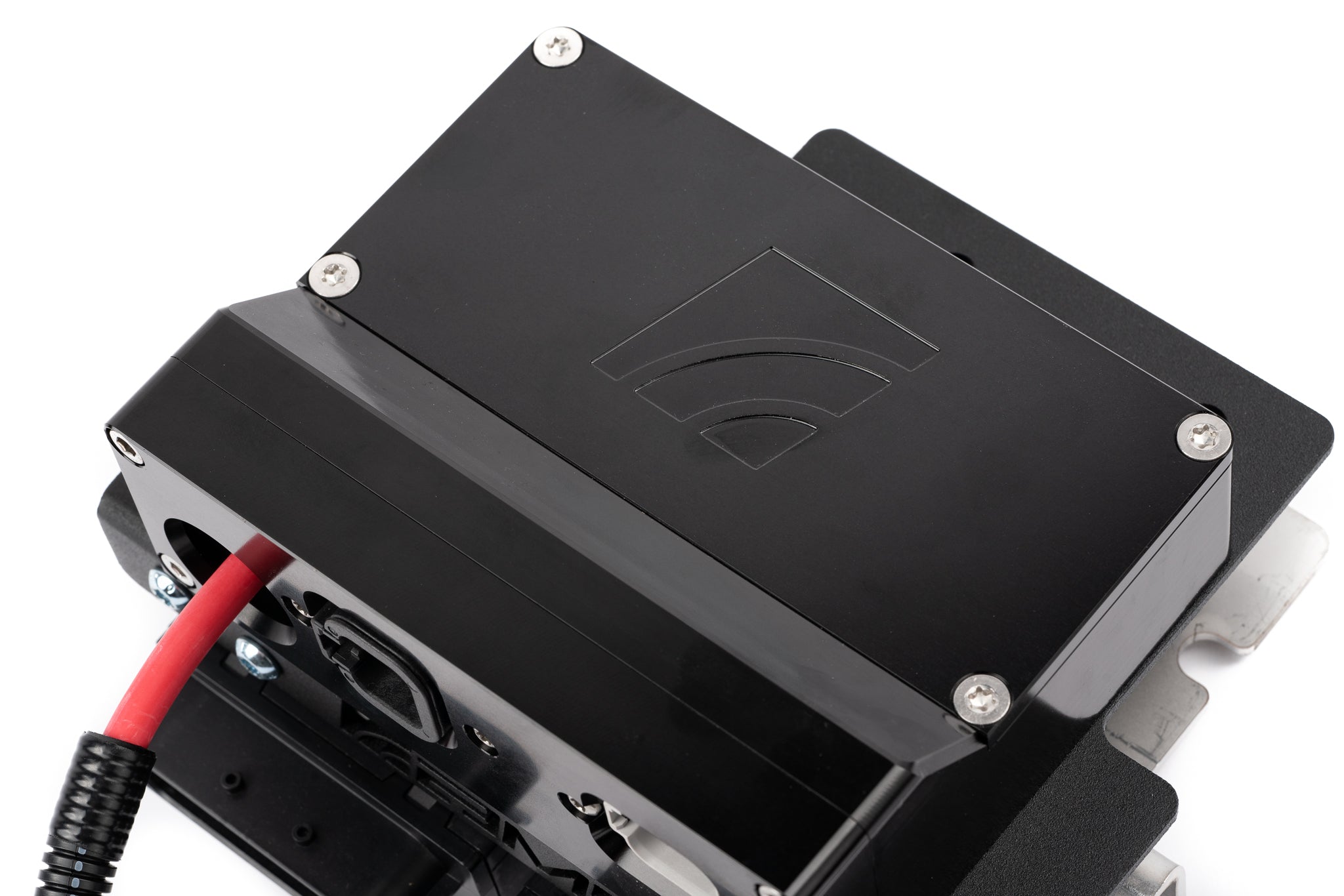

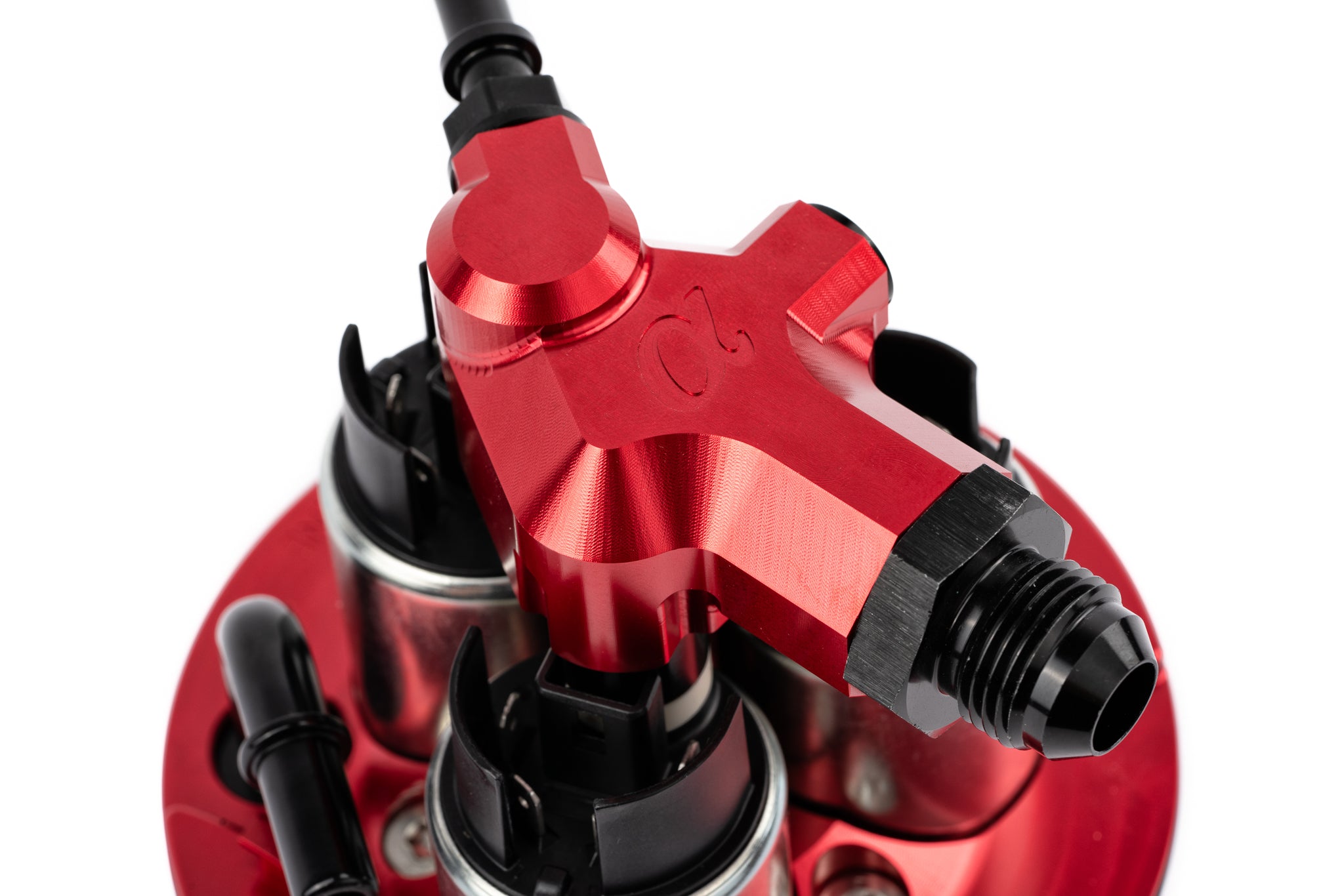

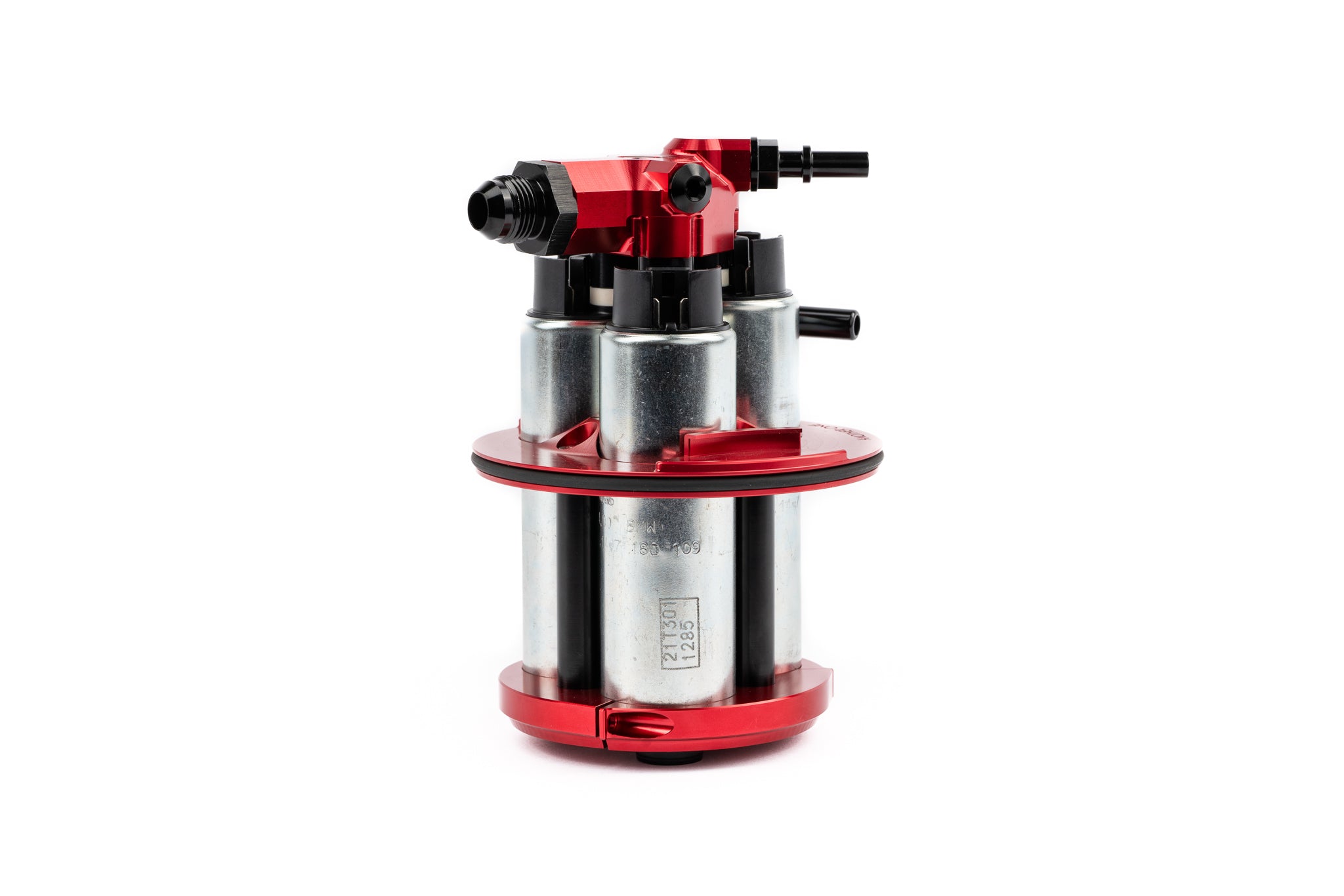

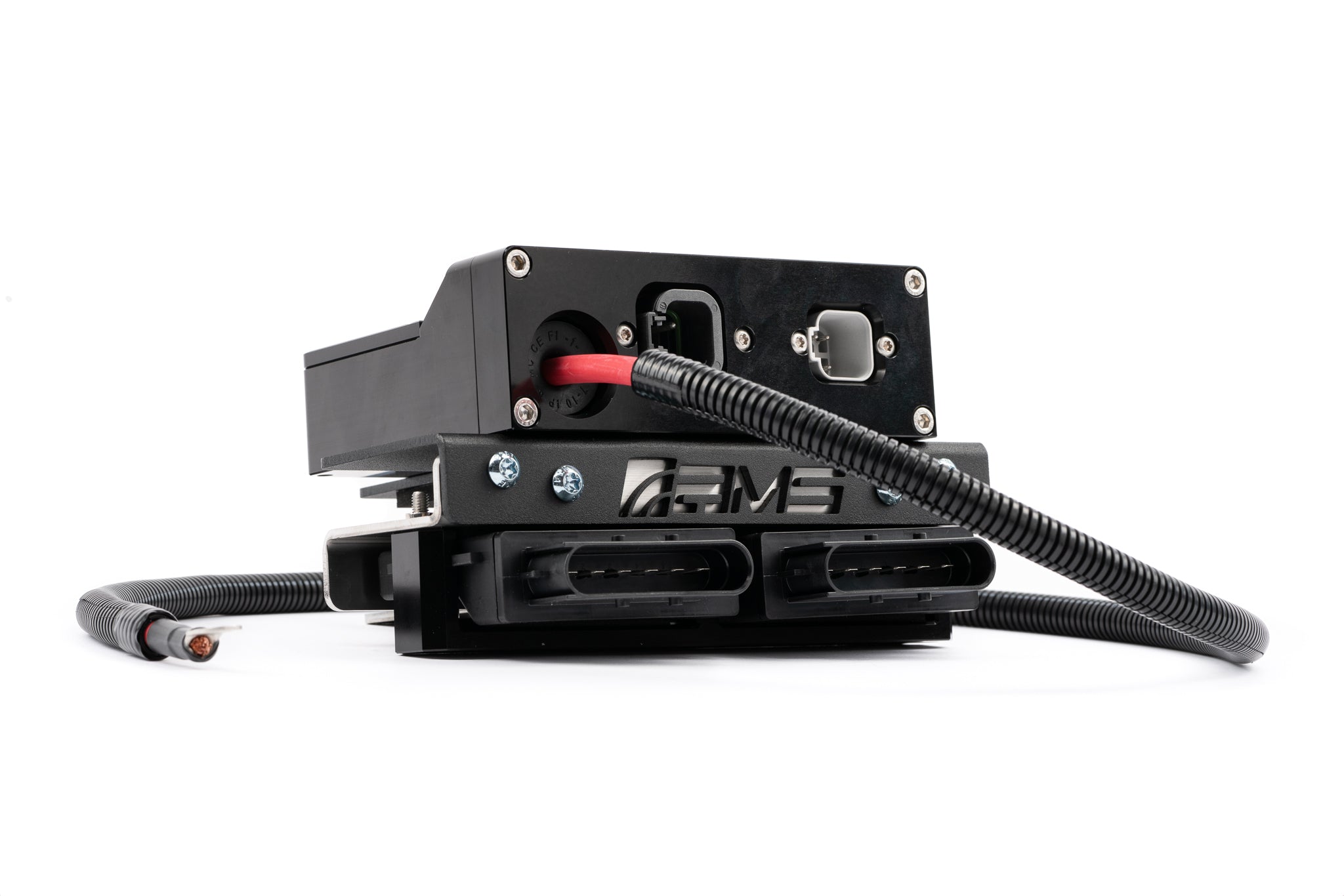

Three brushless pumps sit in a CNC machined, red anodized billet pump assembly with a billet outlet manifold and top hat. A fully sealed billet aluminum Power Distribution Module with IP67 bulkhead connectors uses AMS's own electronics to share power evenly and keep all three pumps in sync. The kit adds two Pierburg pump control units alongside the third factory controller, and a dedicated 6 AWG power wire runs straight from the alternator for clean, steady voltage.

AMS kept the siphon system working through a redesigned routing, so both sides of the saddle tank stay filled and the fuel gauge reads like stock. Lines are externally corrugated, smooth-bore PTFE hose with AN and quick connect fittings, the harnesses are plug-and-play, and the 40 page full-colour guide walks through the install. It works with the stock ECU or standalone software such as MoTeC M142.

Features

• Full Alpha Fuel System supports 3,200+ hp on gasoline and 2,400+ hp on E85

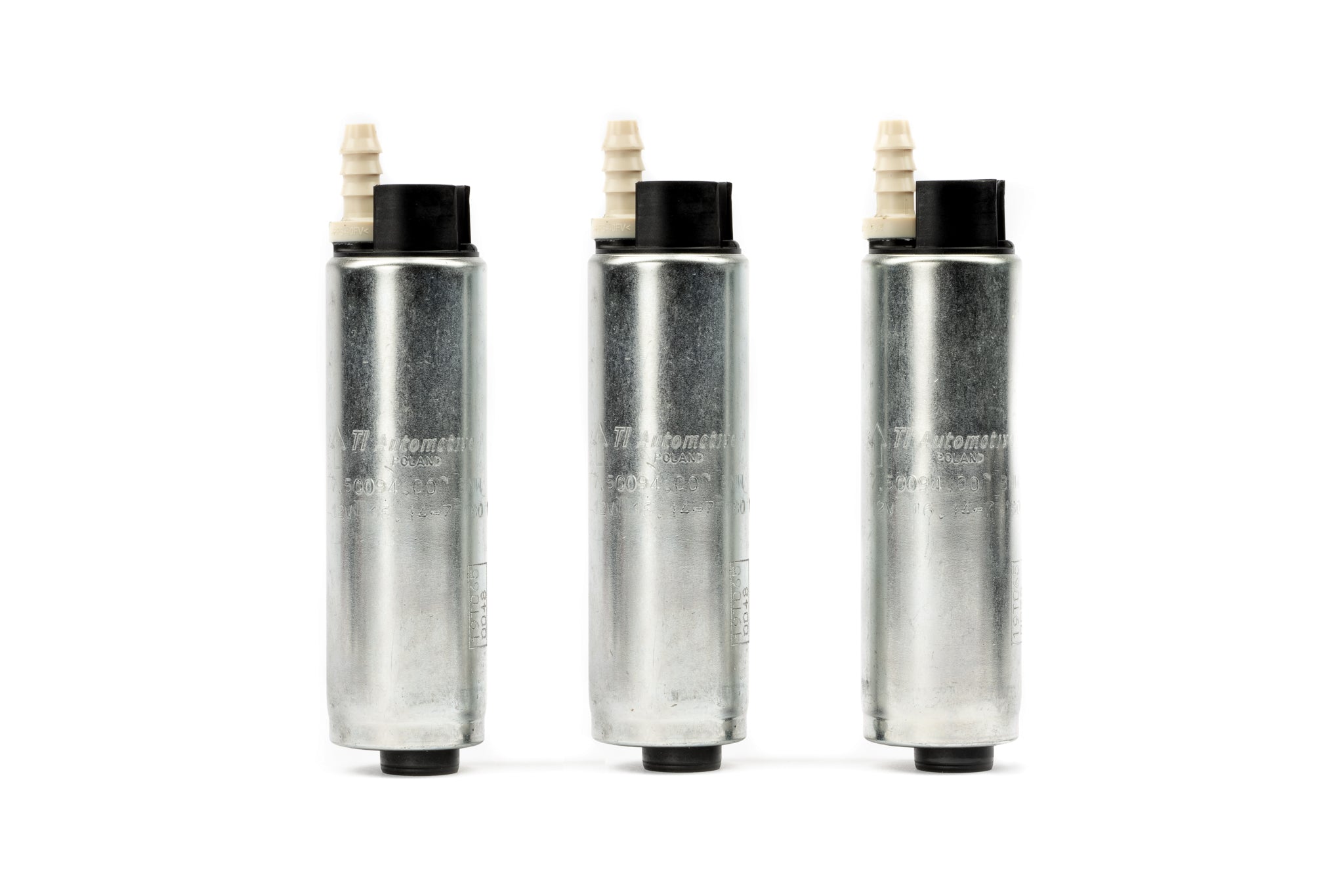

• Three brushless fuel pumps

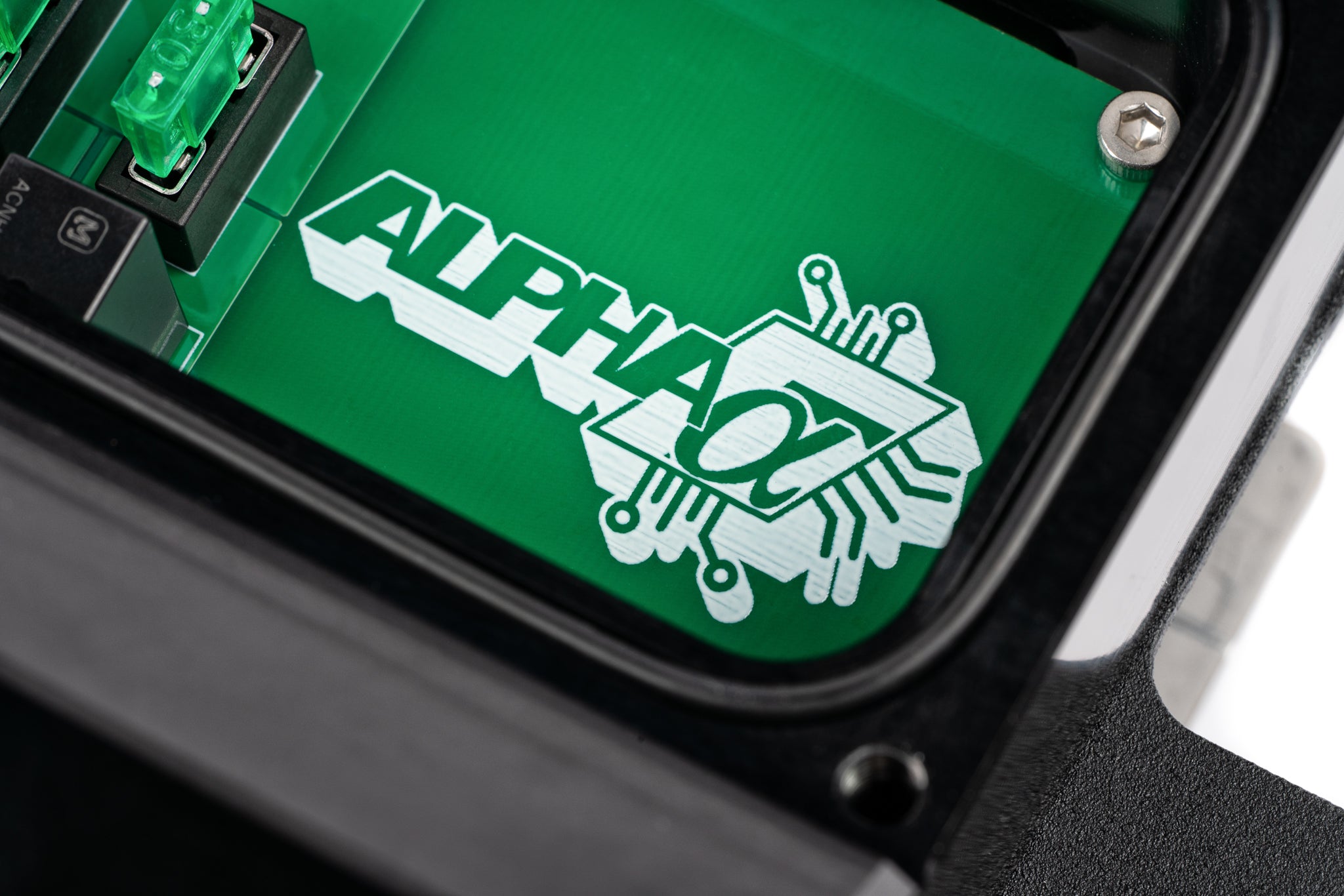

• Proprietary electronics to evenly power and synchronize all three pumps

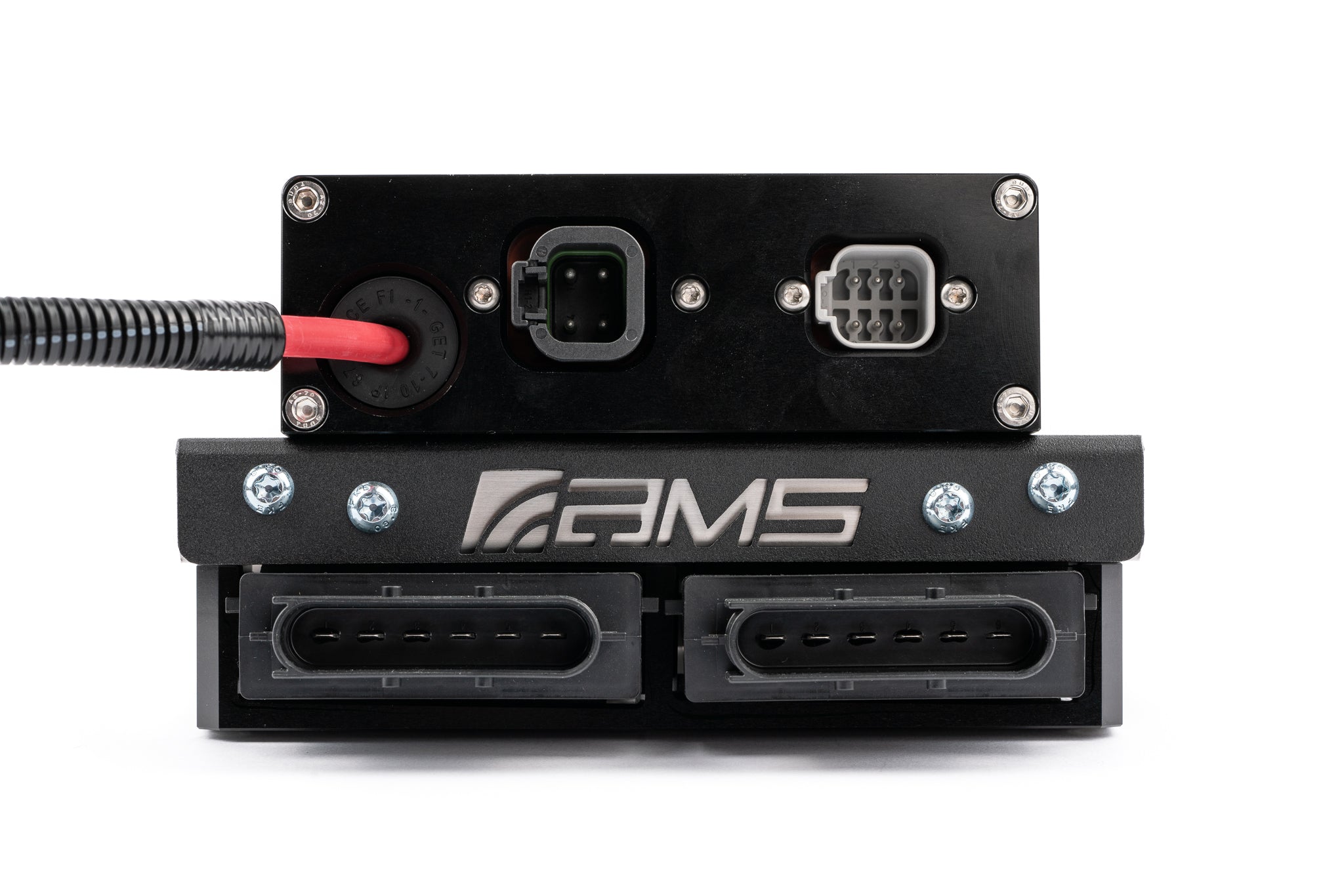

• Sealed billet aluminum Power Distribution Module with IP67 bulkhead connectors
• Two Pierburg pump control units plus the factory controller
• Dedicated 6 AWG power wire from the alternator
• CNC machined red anodized billet pump assembly, outlet manifold and top hat
• PTFE lined hose with AN and quick connect fittings
• Siphon system retained for OEM-like low fuel use

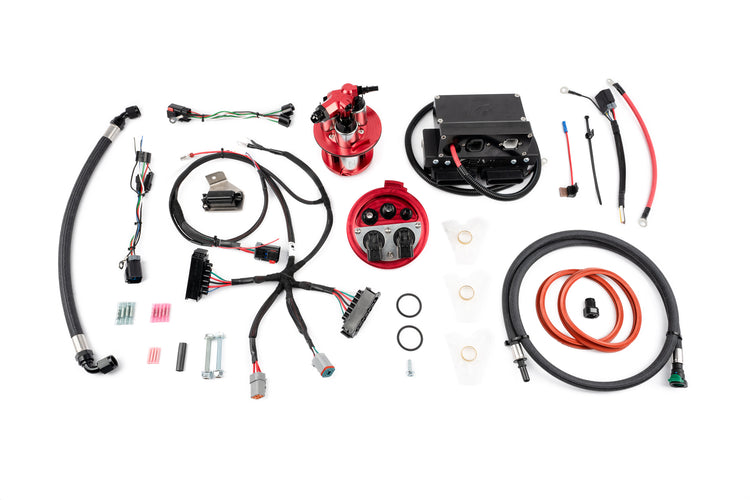

What's Included

• Power Distribution Module
• Two Pierburg pump control units
• Dedicated 6 AWG power wire
• Plug 'n Play wiring harnesses
• AN quick connect fuel fittings
• 40 page full-colour installation guide

Specifications

Before You Order

AMS does not publish a full parts list for this kit; the items above are the ones AMS names as included, and the gallery shows the kit as AMS photographs it. Call us before ordering if you need to confirm a specific part.

The four Alpha Fuel System parts are designed to work together. AMS notes some custom fitting is needed if you are not running the complete system. Spyder models can be fitted, but the Power Distribution Module needs custom mounting. AMS states that its fuel system parts must be installed and removed only by a qualified motorsport technician trained on this vehicle.

Installation

AMS's R8/Huracan triple pump kit installation guide (PDF) covers the pump assembly, the Power Distribution Module and the wiring. AMS splits its R8/Huracan Alpha Fuel System into four parts that are sold separately but designed to work as one system: the Twin or Triple Pump Kit at the tank, the Fuel Pressure Regulator + Fuel Line Kit in the engine bay, the Fuel Rail Kit on the intake manifold, and an optional Flex Fuel Kit add-on. AMS notes that some custom fitting is needed if you are not running the complete Alpha Fuel System.

FAQ

Triple or twin pump?
Choose the triple for builds beyond the AMS Alpha Fuel System Twin Pump Kit. The triple supports 3,200+ hp on gasoline and 2,400+ hp on E85 against 2,400+ and 1,600+ for the twin.

Does it fit the Spyder?
Yes, but AMS says the Power Distribution Module needs custom mounting on Spyder models.

What completes the system?
Add the AMS Alpha Fuel Pressure Regulator + Fuel Line Kit and the AMS Alpha Fuel System Fuel Rail Kit for the full Alpha Fuel System.

Fitment Notes

Fits the Gen 2 Audi R8 V10 and the Lamborghini Huracan, coupe and Spyder (Spyder needs custom Power Distribution Module mounting). Call us to confirm your exact version before ordering. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
