AWE Touring Edition Exhaust for 2023-2026 Honda Civic Type R FL5

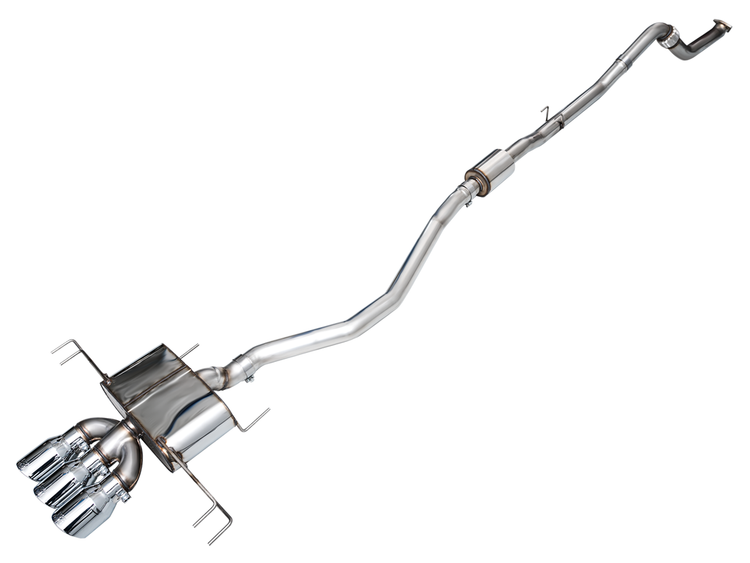

The AWE Touring Edition Exhaust gives the FL5 Civic Type R the voice its K20C1 deserves while keeping the car easy to live with on long drives. The factory system is heavy and quiet, built around a center-exit triple-tip layout. AWE keeps that signature look but replaces the plumbing with a full 3-inch cat-back, from an integrated front pipe right through to a stamped stainless trident merge and three 4.5-inch double-walled slash-cut tips.

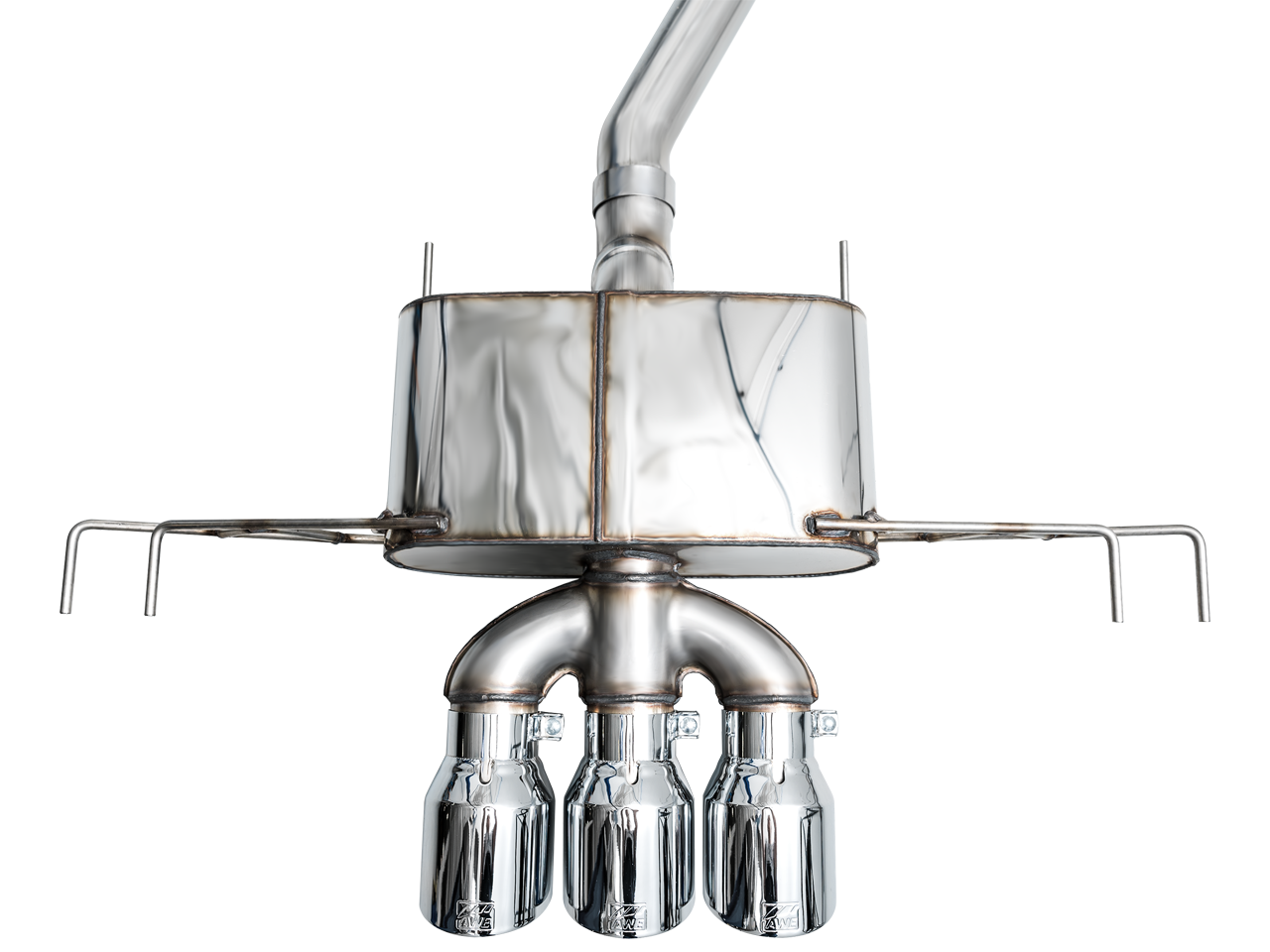

The Touring Edition gets its manners from AWE's patented 180 Technology® muffler, tuned specifically for the FL5. It is straight-through, so it does not choke flow, but its chambers cancel the droning frequencies that four-cylinder turbo cars make at highway speed. AWE developed the tune both on stock downpipes and on aftermarket catted downpipes, so it stays refined either way. A resonated midpipe trims rasp, and the result is a deeper, fuller tone that wakes up under boost.

The 3-inch front pipe carries a unique flange and gasket so the system stays a true 3 inches from inlet to outlet while still bolting to the factory interface. On AWE's dyno that was worth up to 14 hp and 13 lb-ft at the wheels with the stock downpipe, and the system weighs 46 lbs against the factory 50.5 lbs. Installation is a direct bolt-on with no motor mount removal.

Features

• Touring Edition: patented 180 Technology® muffler, bespoke for the FL5, cancels highway drone
• Full 3-inch cat-back with an integrated 3-inch front pipe and resonated midpipe
• Unique front flange and gasket keep a true 3-inch path while mating to the factory interface
• Up to 14 hp and 13 lb-ft at the wheels on the stock downpipe (AWE dyno figures)
• Tuned with and without aftermarket catted downpipes
• 46 lbs, 4.5 lbs lighter than the factory system (AWE figures)

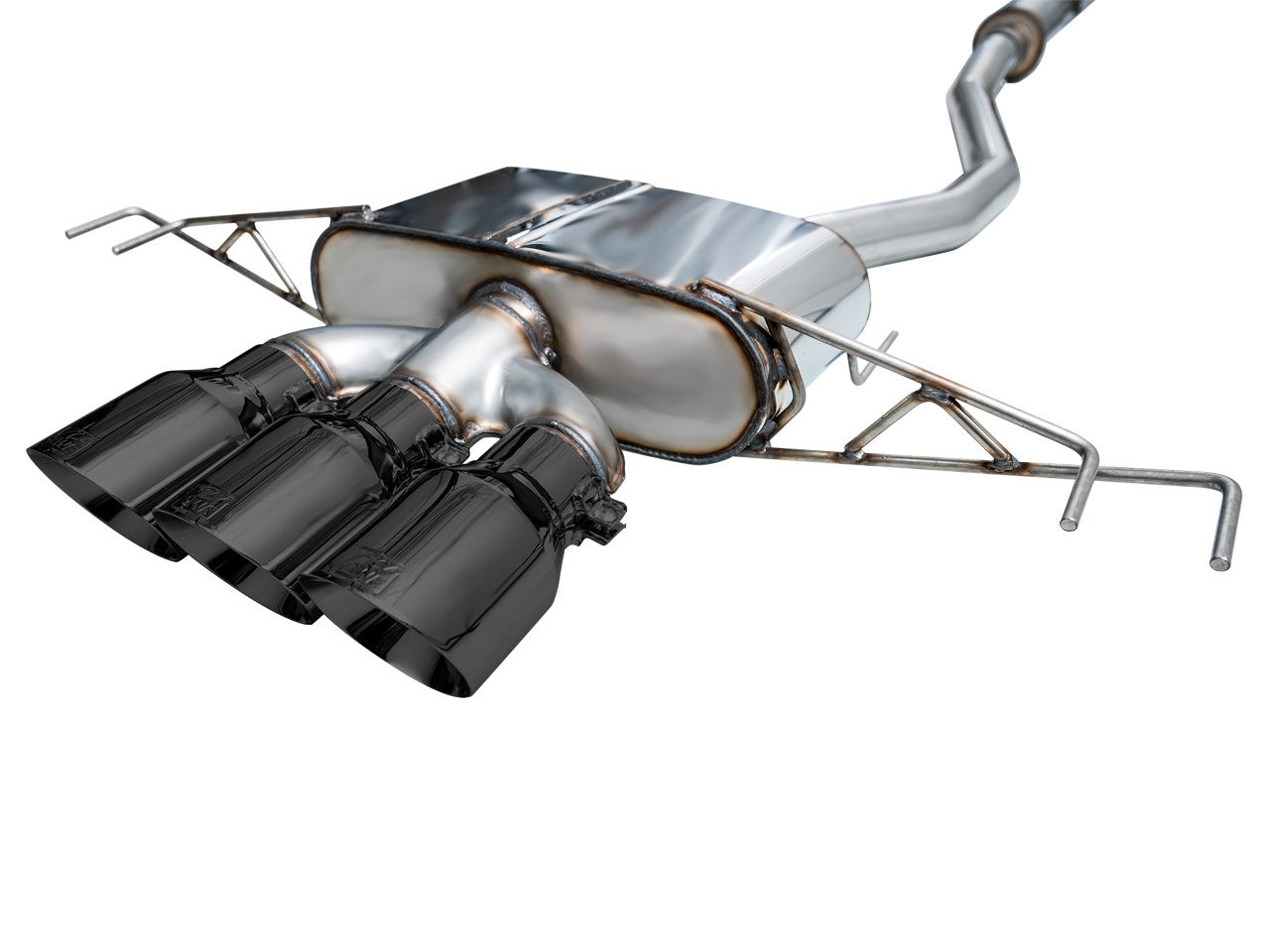

• Stamped stainless trident merge with triple 4.5-inch double-walled slash-cut tips

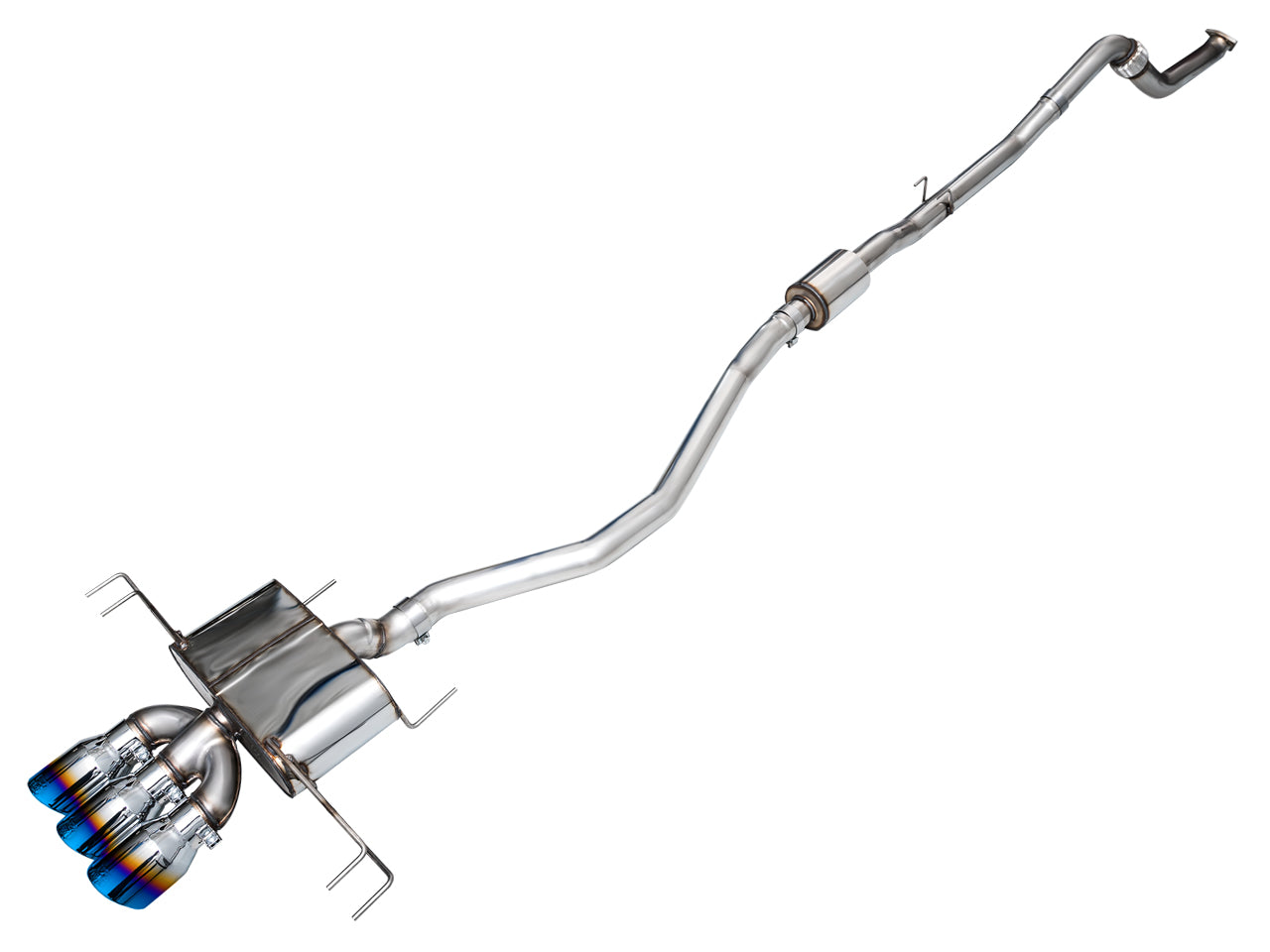

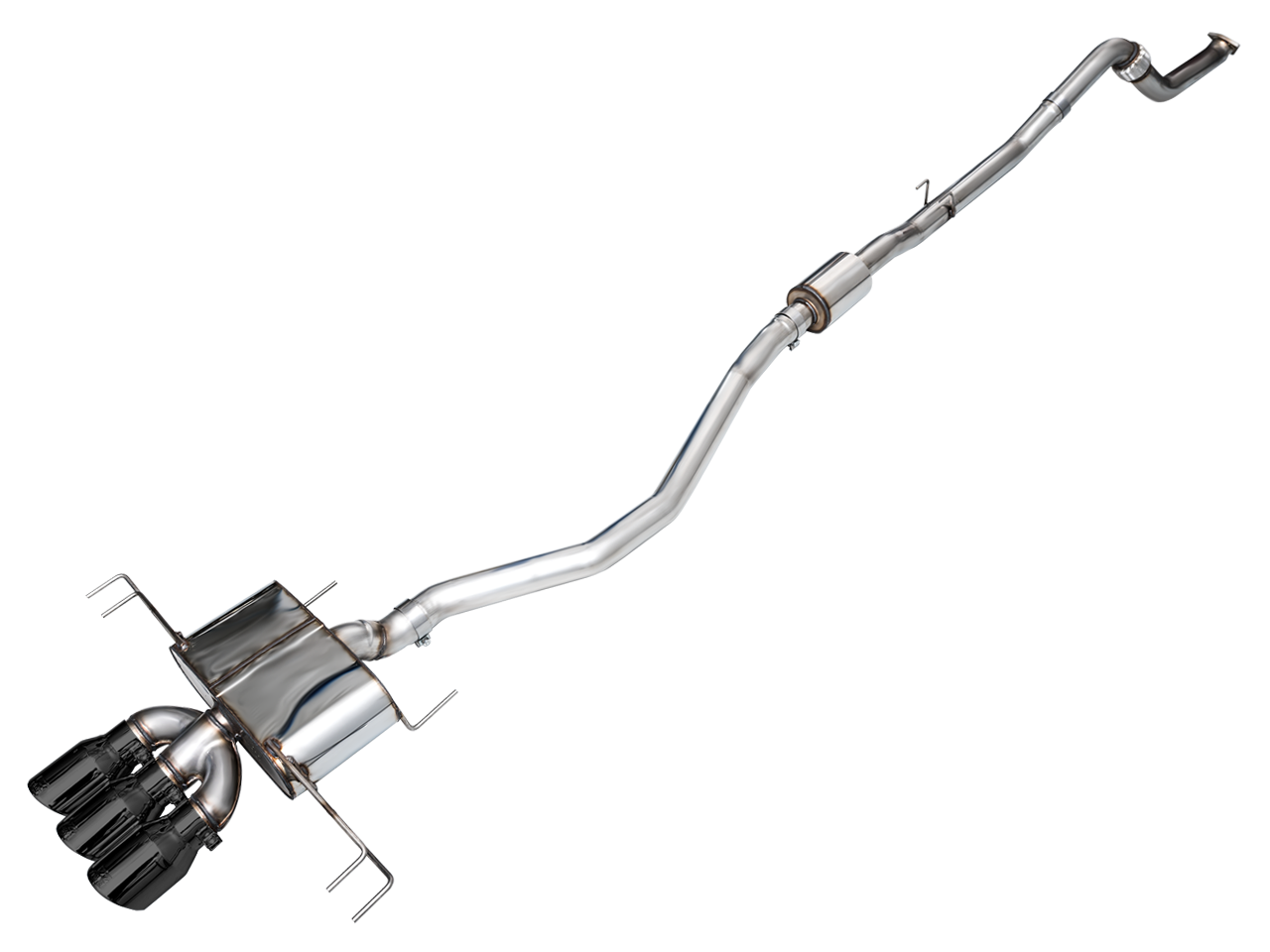

• Chrome Silver, Diamond Black or Vapor Blue tips
• 3-inch U.S.-sourced .065-inch wall T304L stainless steel, CNC mandrel-bent and built in-house by AWE
• Direct bolt-on, no motor mount removal, AWE No CEL and Perfect Fitment guarantees, AWE Lifetime Exhaust Warranty

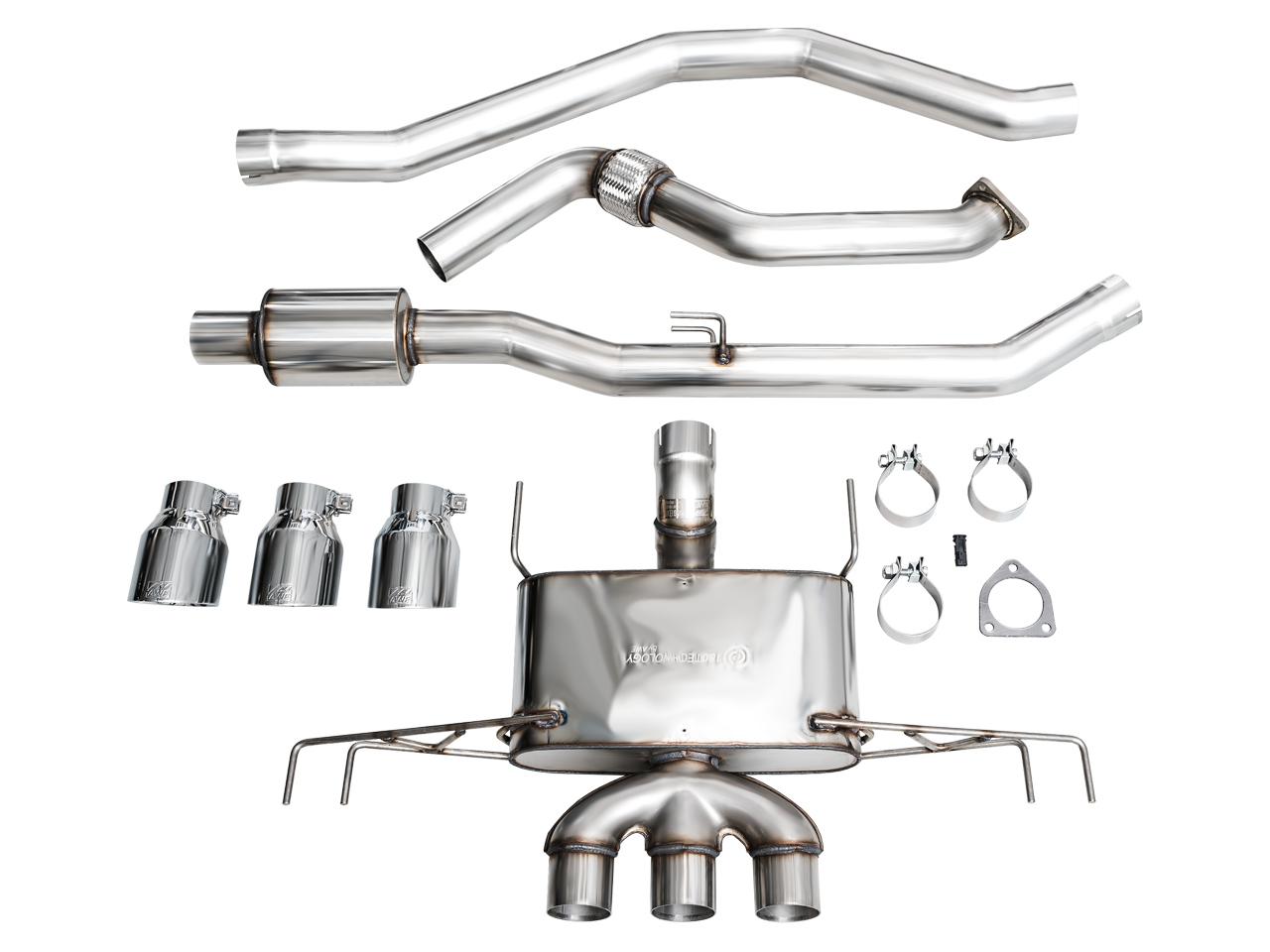

What's Included

• AWE Touring Edition cat-back for the FL5: 3-inch front pipe, resonated midpipe, intermediate pipe and 180 Technology® muffler with trident merge
• Three 4.5-inch tips in the chosen finish
• Gasket for the factory interface
• Clamps and installation hardware

Specifications

Warranty

AWE FL5 Civic Type R Cat-back Options

Want it louder? See the AWE Track Edition Exhaust for the FL5 Civic Type R, or convert later with the Touring-to-Track Conversion Kit.

Frequently Asked Questions

Will it drone on the highway?
No. The FL5-specific 180 Technology® muffler is there to cancel drone at cruising speed.

Does it work with an aftermarket downpipe?
Yes. AWE tuned the Touring Edition with and without aftermarket catted downpipes.

Do I have to drop the motor mount?
No. AWE designed it to install without motor mount removal.

Is it street legal?
AWE lists this system as 50 State Legal because it does not tamper with any emissions control or monitoring devices; it bolts on behind the catalytic converters. AWE does not publish a CARB Executive Order number for it, and local sound limits vary, so check the rules where you drive.

Do I need a tune?
No. It is a bolt-on cat-back and AWE guarantees no check engine light.

How do I look after Vapor Blue tips?
Vapor Blue tips carry no AWE warranty; wash them gently and do not use metal polish on them.

Can I make it louder later?
Yes. The Touring-to-Track Conversion Kit swaps the muffler for a straight section.

Fitment Notes

• Built for U.S.-market 2023-2026 Honda Civic Type R (FL5) hatchbacks. AWE only confirms fitment on U.S. models, so it is not offered for other markets. It does not fit the FK8 Civic Type R, the FE1 Civic Si or the Acura Integra Type S (DE5).
• AWE developed the FL5 systems with and without aftermarket catted downpipes. No motor mount removal is needed to install.
• Direct bolt-on to the factory mounting points; no tune required.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
