VRSF E60 535i N54 charge pipe kit with OEM twin DV ports, couplers and clamps

}

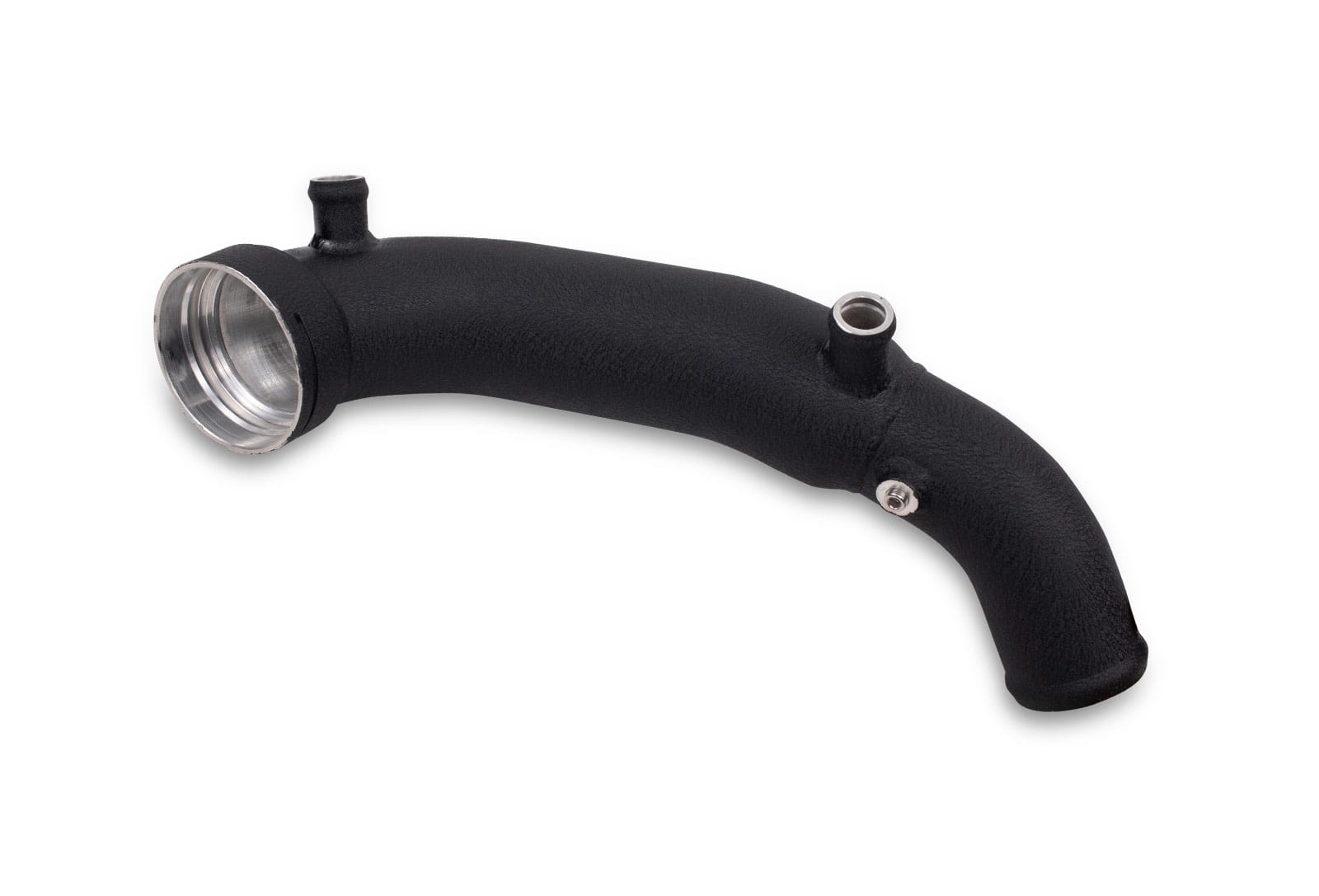

VRSF N54 charge pipe for the E60 535i in black wrinkle finish, OEM DV version

}

VRSF E60 535i charge pipe with TiAL/Turbosmart BOV flange, couplers and clamps

}

VRSF E60 535i N54 Charge Pipe Kit | 2008-2010

Ask an expert

Brand: VRSFSKU / Part #: 10601028

Regular price: $189.99
Regular price
Sale price: $189.99
Unit price: per

Apply at checkout

Product variants

Subtotal: $189.99

Quantity:

VRSF E60 535i N54 Charge Pipe Kit | 2008-2010

Subtotal: $189.99

Not sure it fits? Text us your VINSee all fitment

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The VRSF charge pipe kit replaces the factory plastic charge pipe on the N54-powered E60 535i sedan and E61 535i xDrive wagon. It comes in two versions: one that keeps the factory twin diverter valves, and one with a flange for a Tial or Turbosmart blow-off valve.

What It Does

The factory plastic charge pipe is a known failure point on the N54. Heat and boost make it brittle, and when it cracks the car loses boost on the spot. The VRSF aluminum pipe removes that weak point and holds higher boost from a tune. Its 3-inch diameter matches the throttle body for smooth flow and sharper response.

Materials and Construction

The pipe is mandrel bent aluminum, powder coated black, with a billet CNC throttle body flange for a leak-free connection. It keeps the OEM c-clip, which seals better than a clamp and coupler. A plugged 1/8-inch NPT bung is included for water or methanol injection. The OEM twin DV version includes everything needed to keep the factory diverter valves.

Features

OEM twin DV or Tial/Turbosmart BOV flange
3in piping matched to the throttle body
Billet CNC aluminum throttle body flange
Retains the OEM c-clip for a better seal
Mandrel-bent aluminum, black powder coat
Plugged 1/8in NPT bung for water/meth injection
Couplers and clamps included
VRSF lifetime warranty and No Hassle fitment guarantee

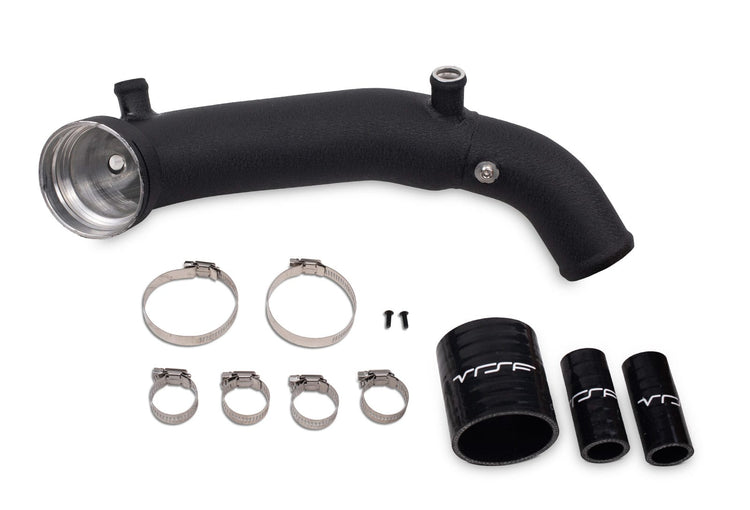

What Is Included

VRSF E60 N54 aluminum charge pipe
Couplers and clamps
Plugged 1/8in NPT bung
Hardware to retain the OEM DVs (OEM twin DV version)

Required Parts

The Tial/Turbosmart version needs a separate Tial or Turbosmart blow-off valve.
A replacement throttle body o-ring and c-clip are optional add-ons above.

Specs

Part numbers: 10601028 (OEM twin DV), 10891020B (Tial/Turbosmart)
Brand: VRSF
Material: aluminum, black powder coat
Diameter: 3 in at the throttle body
Engine: N54 3.0L twin-turbo I6
Shipping dimensions: 16 x 7 x 6 in (41 x 18 x 15 cm) for the OEM twin DV version; 16 x 7 x 6 in (41 x 18 x 15 cm) for the Tial/Turbosmart version
Shipping weight: 6 lb (2.7 kg) for the OEM twin DV version; 7 lb (3.2 kg) for the Tial/Turbosmart version

Fitment Notes

E60/E61 535i with the N54 only. The 2007 525i/530i and later F10 535i are not covered.
See more in our VRSF charge pipes collection.

Year	Make	Model	Chassis	Engine
2008-2010	BMW	535i / 535i xDrive Sedan	E60	3.0L Twin-Turbo I6 (N54)
2008-2010	BMW	535i xDrive Sports Wagon	E61	3.0L Twin-Turbo I6 (N54)

Fitment

Year	Make	Model
2008–2010	BMW	535i

Not sure? Text us your VIN and we’ll confirm.
