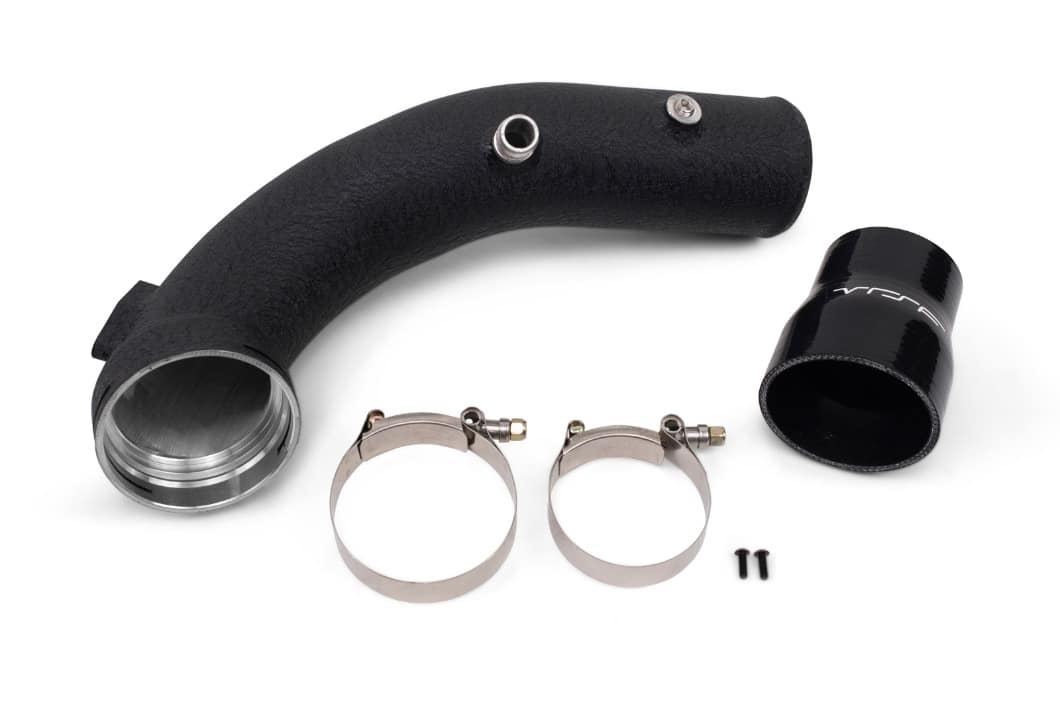

VRSF F10 535i N55 charge pipe kit with silicone coupler, clamps and bung plugs }

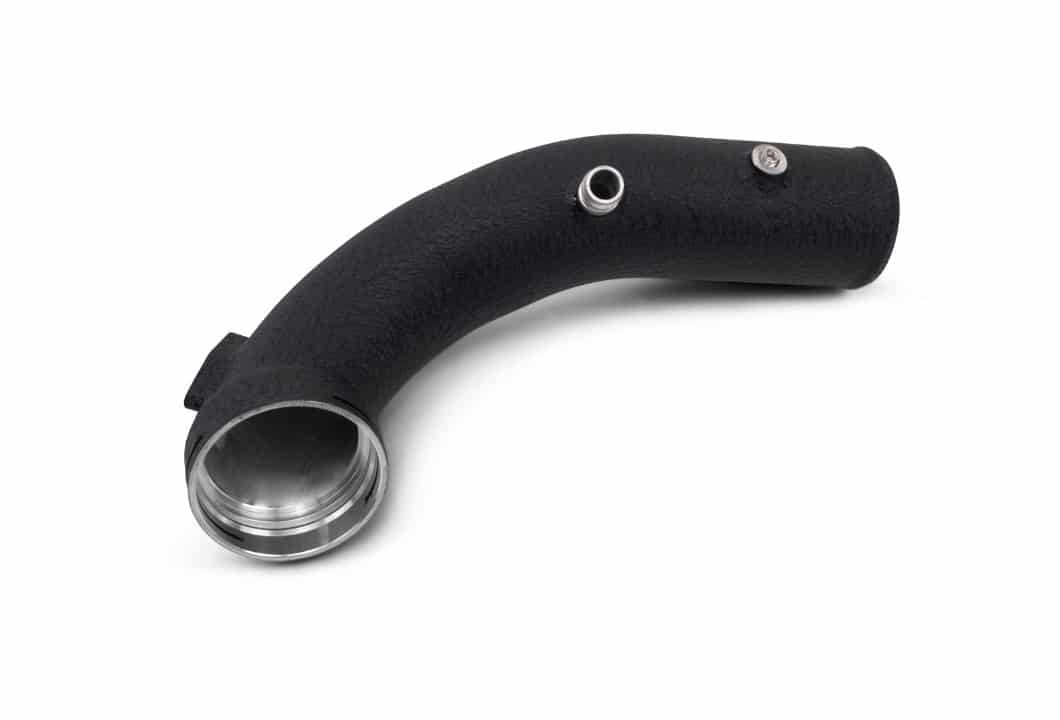

VRSF N55 charge pipe for the F10 535i with billet throttle body flange and NPT bung }
The VRSF N55 charge pipe replaces the plastic pipe between the intercooler and throttle body on the...
Vendor: VRSF
SKU: 10101020
Product Type: Intercooler Pipes
Regular price
$209.99
Regular price
Sale price
$209.99
Check your purchasing power Apply at checkout
VRSF N55 Charge Pipe F10 535i, 640i, 740i, X5, X6 | 2011-19
Found a better price elsewhere? Request Price Match
10 customers are viewing this product
30 day returns
Learn More.
Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

The VRSF N55 charge pipe replaces the plastic pipe between the intercooler and throttle body on the larger BMWs with the single-turbo 3.0-liter six. It fits the F10 and F11 535i, the 535i Gran Turismo, the 640i in all three body styles, the 740i and 740Li, and the E70, E71, F15 and F16 X5 and X6 35i. Its billet throttle body flange keeps the factory C-clip for a factory-style seal.

Why Replace the Factory Pipe

The plastic N55 charge pipe gets brittle with heat cycles and is known to crack, sometimes even on stock boost. When it fails, boost drops instantly and the car goes into limp mode. This aluminum pipe removes that weak point before you tune, and its smooth 3-inch bore matched to the throttle body improves throttle response and cuts turbo lag.

Materials and Construction

The pipe is aluminum with a CNC-machined billet throttle body flange that locks in with the factory C-clip, which seals better than a typical coupler-and-clamp joint. It is powder coated black, and a plugged 1/8-inch NPT bung is welded in for water-methanol injection or a boost reference.

Features

  • Aluminum construction replaces the brittle plastic pipe
  • Billet throttle body flange retains the OEM C-clip
  • 3in piping matched to the throttle body
  • Black powder-coat finish
  • Plugged 1/8in NPT bung for water-methanol injection
  • VRSF lifetime warranty and No Hassle fitment guarantee

What Is Included

  • VRSF N55 aluminum charge pipe
  • 4-ply silicone coupler and stainless steel clamp
  • Plugged 1/8in NPT bung

Required Parts

  • None. VRSF recommends a new throttle body O-ring and C-clip if yours are worn, and both are offered as add-ons above.

Specs

  • Part number: 10101020
  • Brand: VRSF
  • Material: aluminum with billet flange
  • Finish: black powder coat
  • Pipe diameter: 3 in
  • Shipping dimensions: 16 x 6 x 5 in (41 x 15 x 13 cm)
  • Shipping weight: 7 lb (3.2 kg)

Fitment Notes

  • N55 engines only. N54-powered 740i and early 535i GT models need a different pipe.
  • Find more in our VRSF charge pipes collection.
Year Make Model Chassis Engine
2011-2016 BMW 535i / 535i xDrive Sedan F10 3.0L Turbo I6 (N55)
2011-2013 BMW 535i xDrive Sports Wagon F11 3.0L Turbo I6 (N55)
2011-2017 BMW 535i / 535i xDrive Gran Turismo F07 3.0L Turbo I6 (N55)
2012-2017 BMW 640i Convertible F12 3.0L Turbo I6 (N55)
2012-2017 BMW 640i Coupe F13 3.0L Turbo I6 (N55)
2013-2015 BMW 640i / 640i xDrive Gran Coupe F06 3.0L Turbo I6 (N55)
2013-2015 BMW 740i / 740Li / 740Li xDrive F01 3.0L Turbo I6 (N55)
2011-2013 BMW X5 xDrive35i E70 3.0L Turbo I6 (N55)
2011-2014 BMW X6 xDrive35i E71 3.0L Turbo I6 (N55)
2014-2018 BMW X5 sDrive35i / xDrive35i F15 3.0L Turbo I6 (N55)
2015-2019 BMW X6 sDrive35i / xDrive35i F16 3.0L Turbo I6 (N55)
