VRSF N55 charge pipe kit for F25 X3 35i and F26 X4 35i/M40i with couplers and T-bolt clamps }

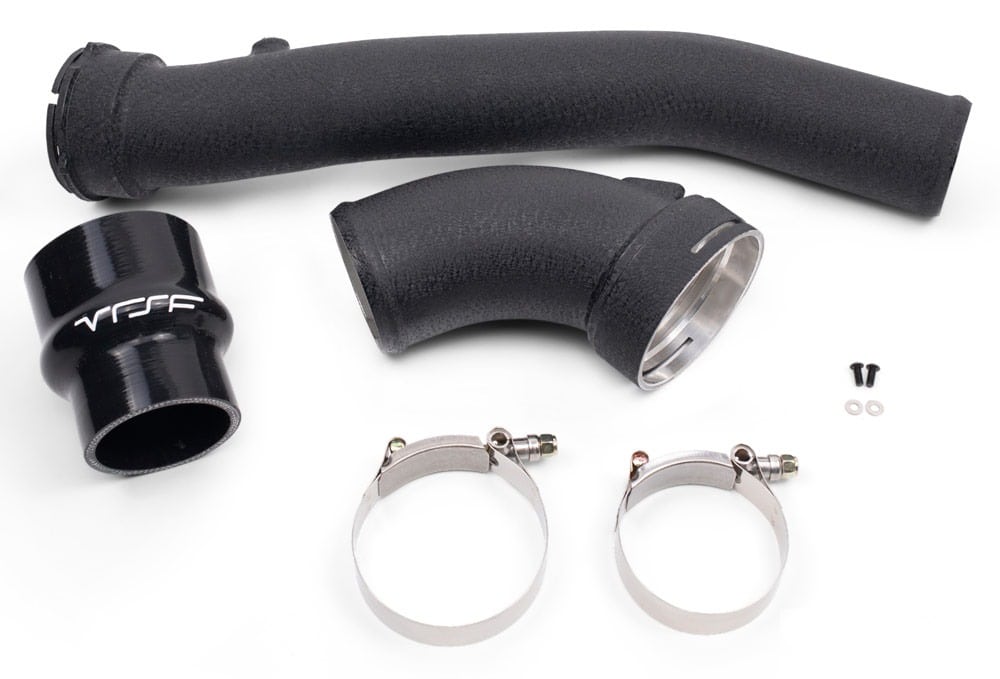

VRSF X3/X4 N55 charge pipe kit laid out: main pipe, throttle body elbow, coupler and clamps }

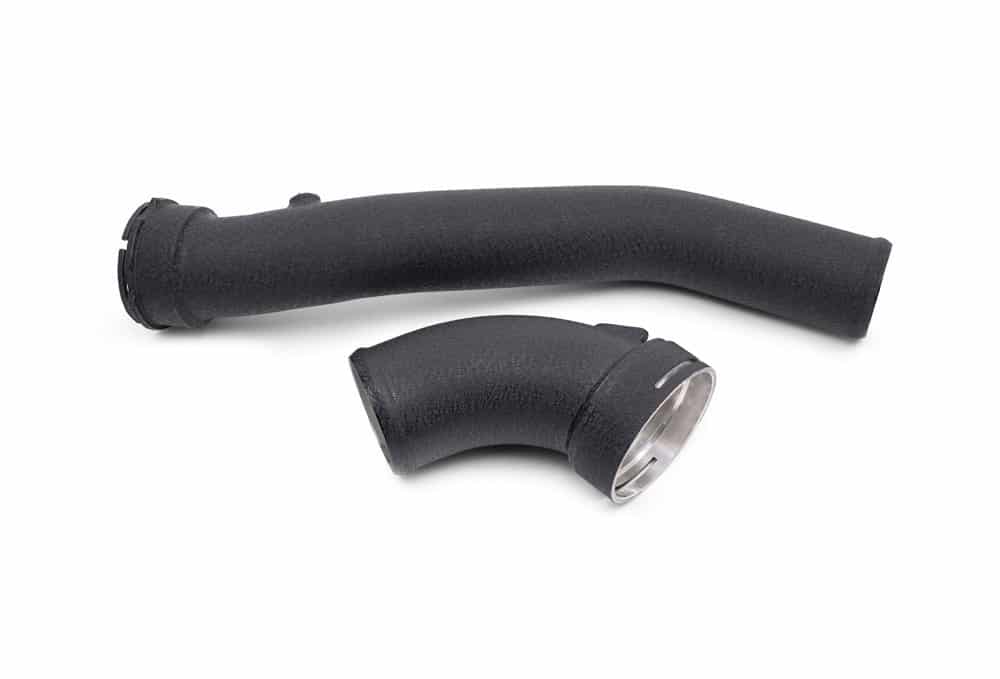

Two-piece VRSF F25/F26 charge pipe in wrinkle-black aluminum with billet flanges }
The VRSF charge pipe kit replaces the plastic pipe between the intercooler and the throttle body on...
Vendor: VRSF
SKU: 10251010
Product Type: Intercooler Pipes
Regular price
$219.99
Regular price
Sale price
$219.99
Check your purchasing power Apply at checkout
VRSF F25 X3 35i, F26 X4 35i / M40i Charge Pipe | 2011-2018
Found a better price elsewhere? Request Price Match
10 customers are viewing this product
30 day returns
Learn More.
Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Coupon Code on First Order

Price Match Guarantee

Price Match Guarantee

Free shipping on $99+ order

Free shipping on $99+ order

30-days Returns

30-days Returns

The VRSF charge pipe kit replaces the plastic pipe between the intercooler and the throttle body on the N55-powered F25 X3 xDrive35i and the F26 X4 xDrive35i and X4 M40i. It is a direct bolt-in that removes one of the most common failure points on these engines and comes with the couplers and clamps needed to install it.

Why Replace the Factory Pipe

The factory charge pipe is molded plastic and is prone to cracking at both stock and tuned boost. When it splits, the engine loses boost and drops into limp mode. The VRSF pipe is aluminum from end to end, and its 3-inch bore matched to the throttle body improves throttle response and reduces turbo lag.

Materials and Construction

The pipe is mandrel bent and TIG welded from T6061 aluminum, with precision-machined billet CNC flanges for a leak-free connection. A durable wrinkle-black powder coat protects the finish. A plugged 1/8-inch NPT bung can be used for water-methanol injection, boost leak testing or a boost source.

Features

  • Mandrel-bent, TIG-welded T6061 aluminum
  • Billet CNC flanges for a leak-free seal
  • 3in piping matched to the throttle body
  • Wrinkle-black powder-coat finish
  • 4-ply silicone couplers and T-bolt clamps included
  • Plugged 1/8in NPT bung
  • VRSF lifetime warranty and No Hassle fitment guarantee

What Is Included

  • VRSF N55 aluminum charge pipe
  • 4-ply silicone couplers
  • Stainless steel T-bolt clamps
  • Plugged 1/8in NPT bung

Required Parts

  • None. VRSF recommends a new throttle body C-clip and O-ring if yours are worn or lost. Both are add-ons above.

Specs

  • Part number: 10251010
  • Brand: VRSF
  • Material: T6061 aluminum, billet flanges
  • Finish: wrinkle-black powder coat
  • Pipe diameter: 3 in
  • Shipping dimensions: 18 x 8 x 7 in (46 x 20 x 18 cm)
  • Shipping weight: 6 lb (2.7 kg)

Fitment Notes

  • N55 engines only. The 28i models with the four-cylinder N20 need a different pipe.
  • Pairs well with the VRSF X3 / X4 Performance HD intercooler.
  • Find more in our VRSF charge pipes collection.
Year Make Model Chassis Engine
2011-2017 BMW X3 xDrive35i F25 3.0L Turbo I6 (N55)
2015-2018 BMW X4 xDrive35i F26 3.0L Turbo I6 (N55)
2016-2018 BMW X4 M40i F26 3.0L Turbo I6 (N55)
