AMS Stock Location Intercooler | 2015-2026 F-150 & Raptor EcoBoost

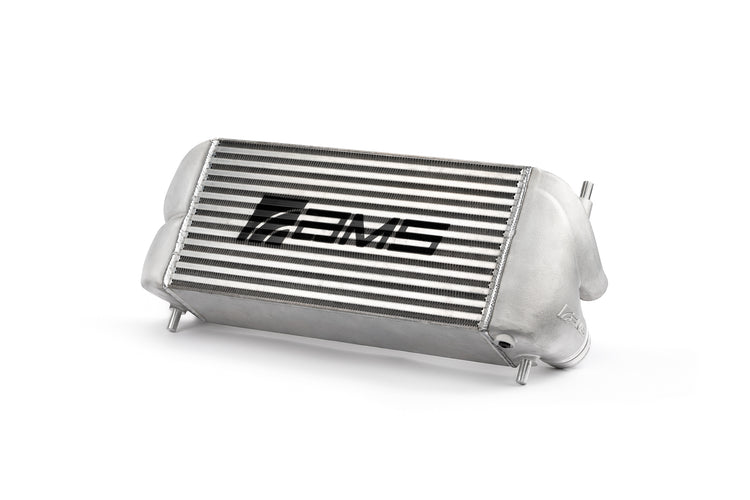

The AMS Performance Stock Location Intercooler (AMS.55.09.0001) is a bolt-in replacement for the factory front mount intercooler on the 2015-2026 Ford F-150 2.7L and 3.5L EcoBoost and the 2017-2026 Raptor. It uses a 21 x 10.25 x 5.5 inch bar and plate core, which AMS says is the largest OEM-location core on the market for these trucks and 115 percent larger than stock, more than double the factory core volume.

AMS tested it on a 2022 Raptor 3.5L EcoBoost on a Mainline hub dyno with 93 octane and a COBB Accessport Stage 2 off-the-shelf map, swapping only the intercooler. After a 12-second pull the factory intercooler was putting out 168 F charge air at 6,350 rpm; the AMS unit held 88 F, an 80 degree difference. Efficiency stayed at 93 percent through redline against as low as 59 percent for the factory part, pressure drop across the core fell 20.5 percent, and the truck gained 12.3 whp while running nearly 2 psi less boost on the same tune.

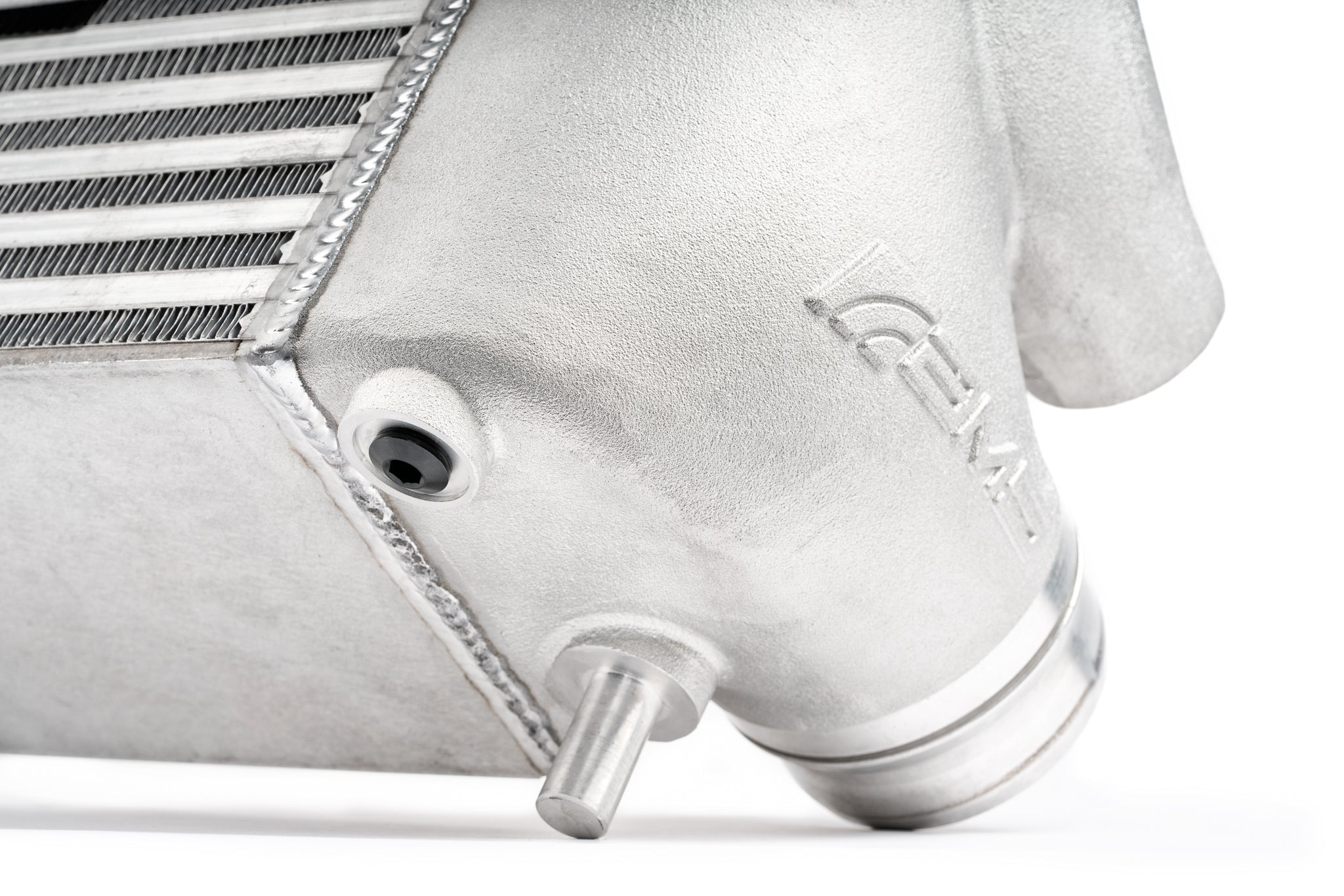

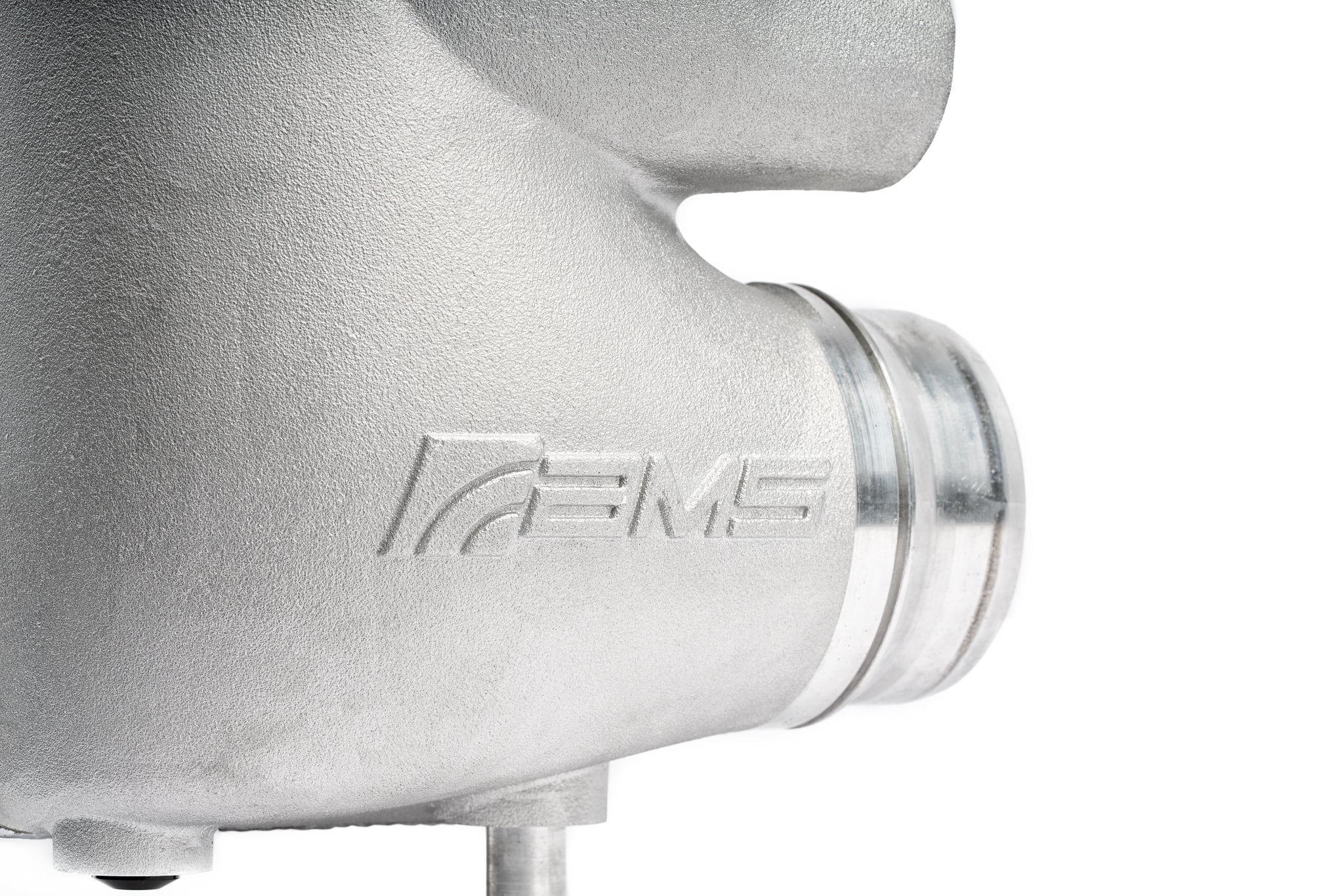

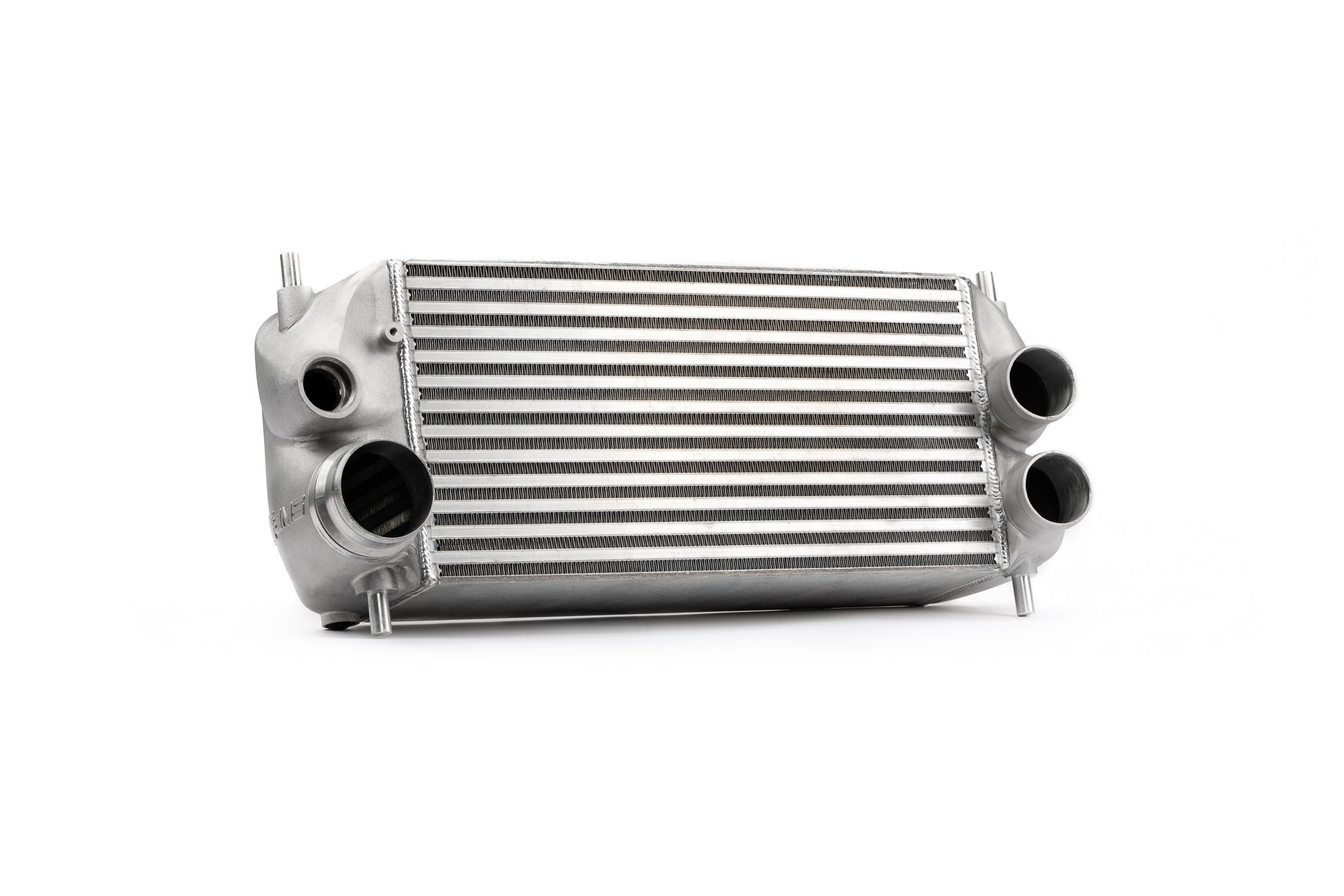

This is AMS's second-generation F-150 intercooler. Cast end tanks replace the fabricated tanks of the original design for more even charge air distribution, an integrated drain port lets you clear condensation or blow-by without pulling the core, and the outlet keeps the factory blow off valve location while adding compatibility with aftermarket valves such as the Turbosmart VeePort. It mounts in the factory location and keeps the factory piping fitment.

Features

• 21 x 10.25 x 5.5 in bar and plate core, 115% larger than stock
• Up to 80 F cooler charge air than the factory intercooler after a 12-second pull (AMS test)
• 12.3 whp gain at nearly 2 psi less boost with no tune changes (AMS test, 2022 Raptor)
• 20.5% less pressure drop and up to 93% efficiency vs as low as 59% for OEM
• Cast end tanks, chamfered inlets and a smooth airflow path
• Integrated drain port for servicing in the truck
• Keeps the OEM blow off valve location; works with popular aftermarket valves including the Turbosmart VeePort
• Retains the factory mounting locations and piping fitment

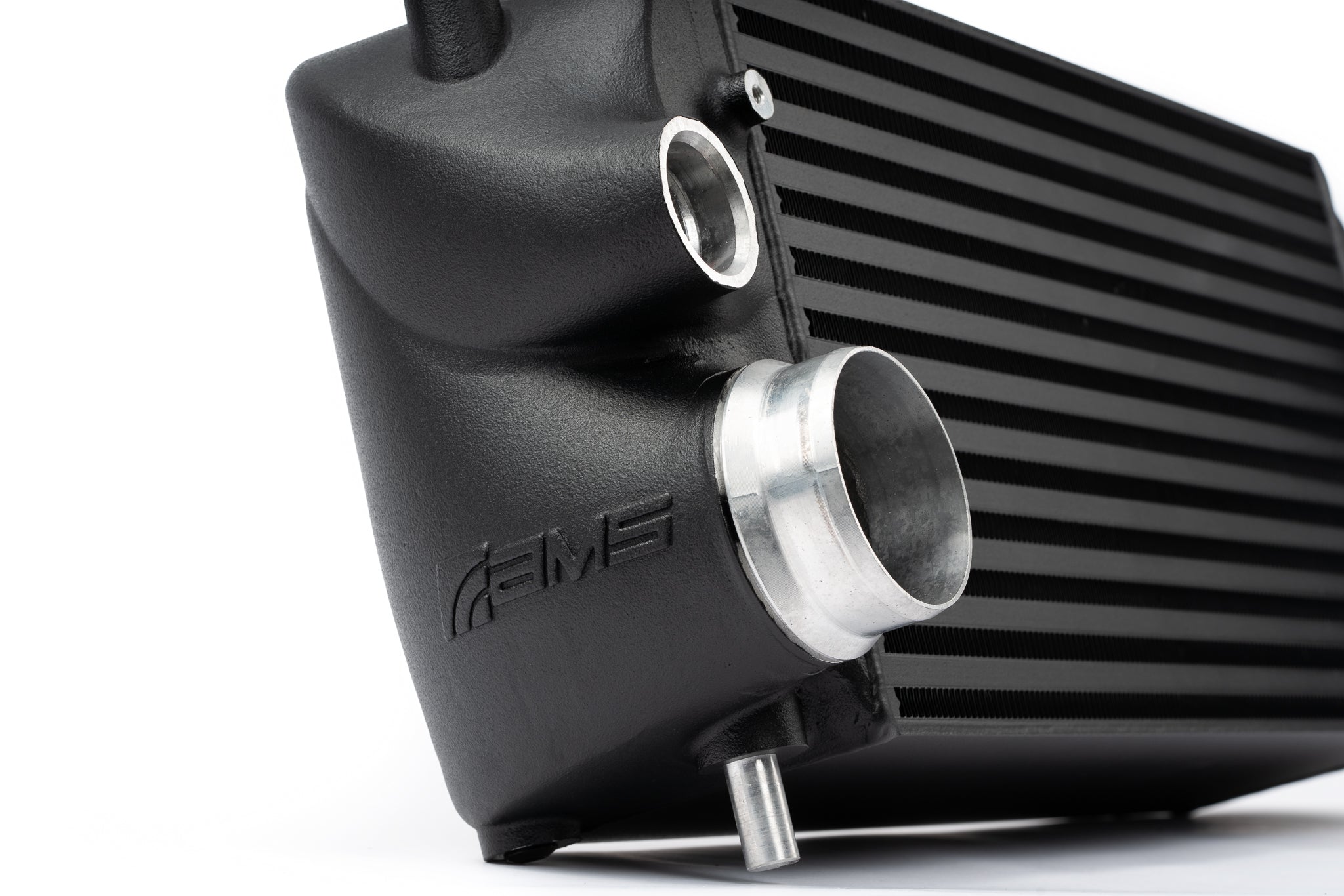

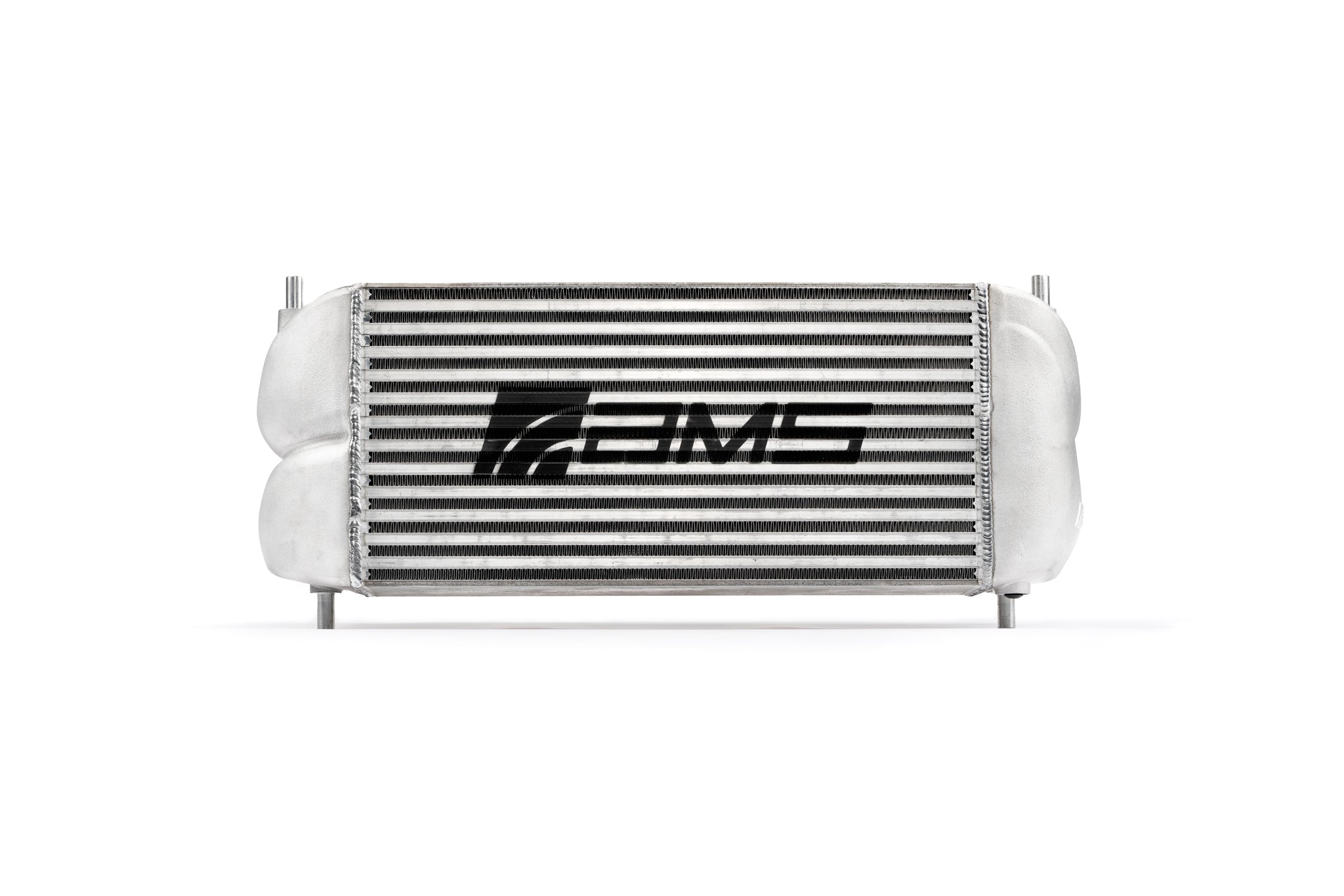

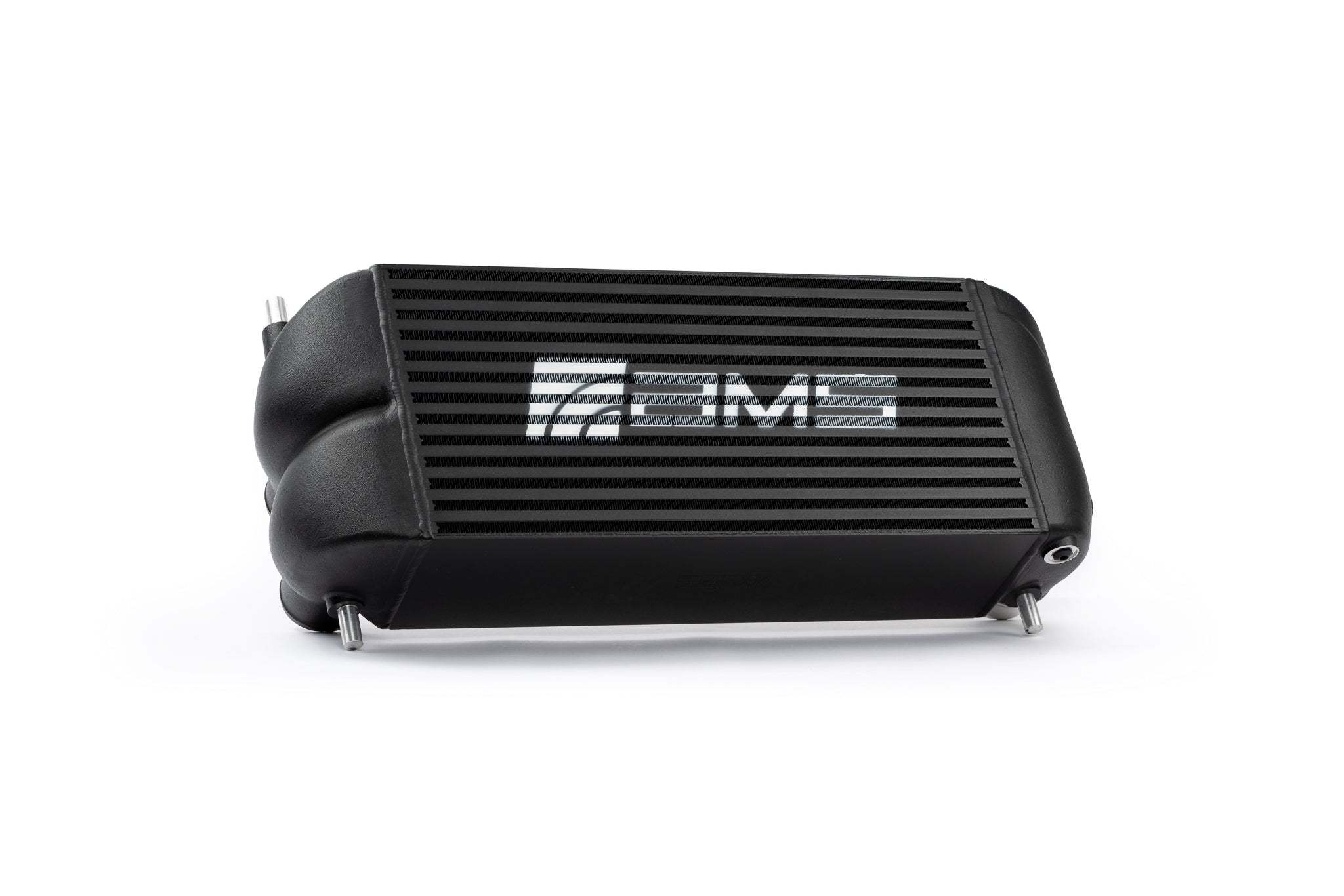

• Choose silver (uncoated) or black powder coat, both with the AMS logo

What's Included

• AMS Stock Location Intercooler in your chosen finish
• Upper support brackets for the bumper support rods
• Installation hardware

Specifications

Before You Order

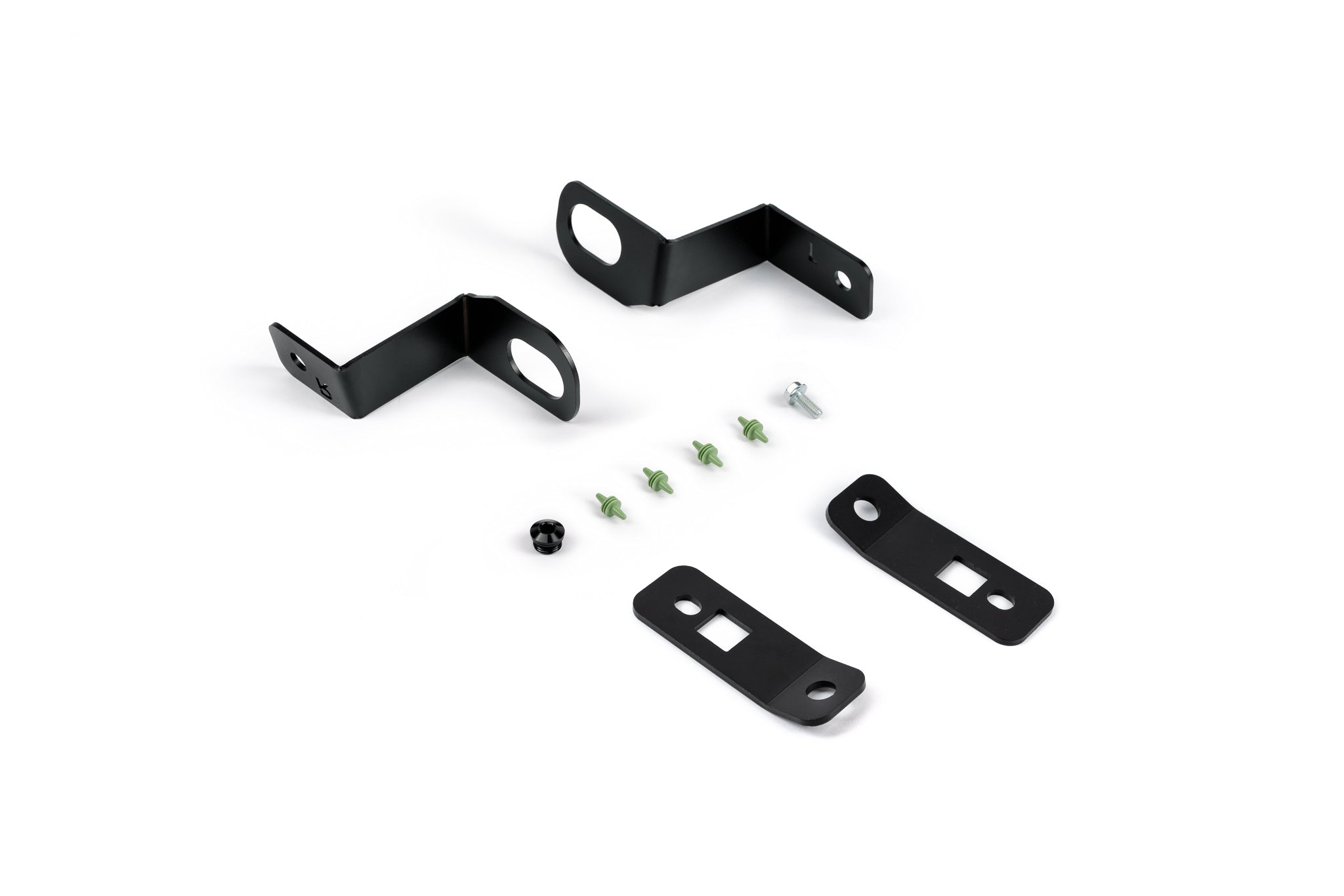

The upper support brackets and hardware are shown in the last gallery photo. The AMS installation guide uses these brackets to reattach the bumper support rods. Factory charge pipes and the blow off valve are reused.

2021+ F-150 PowerBoost trucks need the factory external pedestrian-alert speaker moved or removed. AMS sells an External Speaker Relocation Bracket (AMS.55.09.0001-5) separately for this. It is not included.

Installation

AMS's stock location intercooler installation guide (PDF) covers removing the factory intercooler through the front of the truck and installing the AMS core on the factory mounts. The guide uses the included upper support brackets to reconnect the bumper support rods, and it covers the PowerBoost speaker relocation separately.

Video: Raptor and F150 Intercooler

AMS Performance walks through the F-150 and Raptor stock location intercooler.

Video: F150 Split Screen FMIC Testing

AMS split-screen testing of the factory intercooler against the AMS unit.

FAQ

Do I need a tune?
No. AMS measured its 12.3 whp gain on the same COBB Stage 2 map it used with the factory intercooler. AMS notes that a calibration built around the cooler, denser charge air can add more.

Will it work with my factory charge pipes?
Yes. It keeps the factory mounting and piping fitment. On 2021+ trucks it is also built to mate with the AMS F-150 Intercooler Pipes.

Stock location or high mount?
This intercooler sits where the factory one does. The AMS High Mount Intercooler moves the core up behind the upper grille to make room for a winch or a frame-cut bumper.

Fitment Notes

Fits 2015-2026 F-150 2.7L and 3.5L EcoBoost and 2017-2026 Raptor 3.5L EcoBoost, including 2021+ PowerBoost trucks with the speaker relocation noted above. Not for the 5.0L V8, 3.3L V6, Power Stroke diesel or the Raptor R. Browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
