VENDOR: Brembo
SKU: 1P1.8511AR
$7,099.20 $7,395.00
You Save 4% ($295.80)PLEASE CALL OR TEXT (310)231-0292 WITH ANY QUESTIONS
For any questions please PM or email: Online@AutoTalent.com

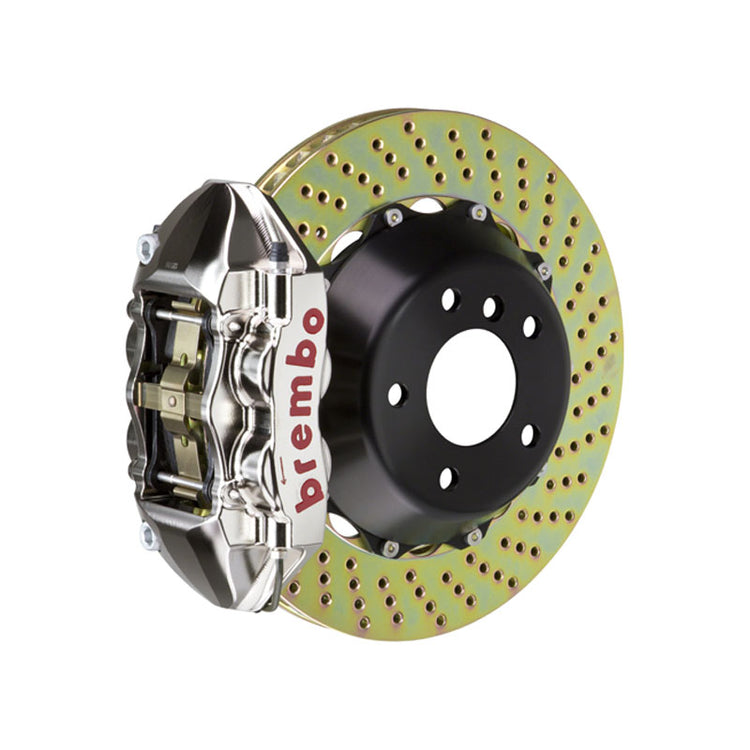

Front or Rear System Shown : |
Front |
Intended Use : | Street / Track / Race |
System Dynamics : | ![]() |
Wheel Fitment : |
How to Measure Wheels for Required Clearance Brake Profile Cross Section |
Caliper Body : | Billet Monobloc Radial Mount |
Caliper Piston Configuration : |
4-Piston |
Caliper Piston Design And Insert Type : |
Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert |
Disc Type : | Cross Drilled |
Disc Material/Finish : | Advanced High Carbon Alloy / Corrosion Resistant Plating |
Disc Diameter : | 365mm |
Disc Width (Measurement) : |
29mm |
Disc Air Gap (Measurement) : |
14mm |
Disc Annulus (Measurement) : |
59mm |
Disc Construction : | 2-Piece Disc Assembly |
Disc Vane Design (Measurement) : |
Vented Curved 48 Vane |
Disc To Hat Mounting System : |
Floating D-Bobbin with Anti Rattle Spring |
Pad Compound : | Brembo High Performance FM1000 |
Pad Volume / Surface Area : |
76.4 | 62.1 |
Brake Lines : | Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge |
Mounting Hardware : | Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation. |
MAKE | MODEL / SUB MODEL | CHASSIS | YEAR |
BMW | M3 | E36 |
1995-1999 |
