VENDOR: Brembo
SKU: 2P1.9032AS
$3,895.00
PLEASE CALL OR TEXT (310)231-0292 WITH ANY QUESTIONS
For any questions please PM or email: Online@AutoTalent.com
Front or Rear System Shown : |
Rear |
Intended Use : | Street / Track / Race |
System Dynamics : | ![]() |
Wheel Fitment : |
How to Measure Wheels for Required Clearance Brake Profile Cross Section |
Caliper Body : | Cast Monobloc Radial Mount |
Caliper Piston Configuration : |
4-Piston |
Caliper Piston Design And Insert Type : |
Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert |

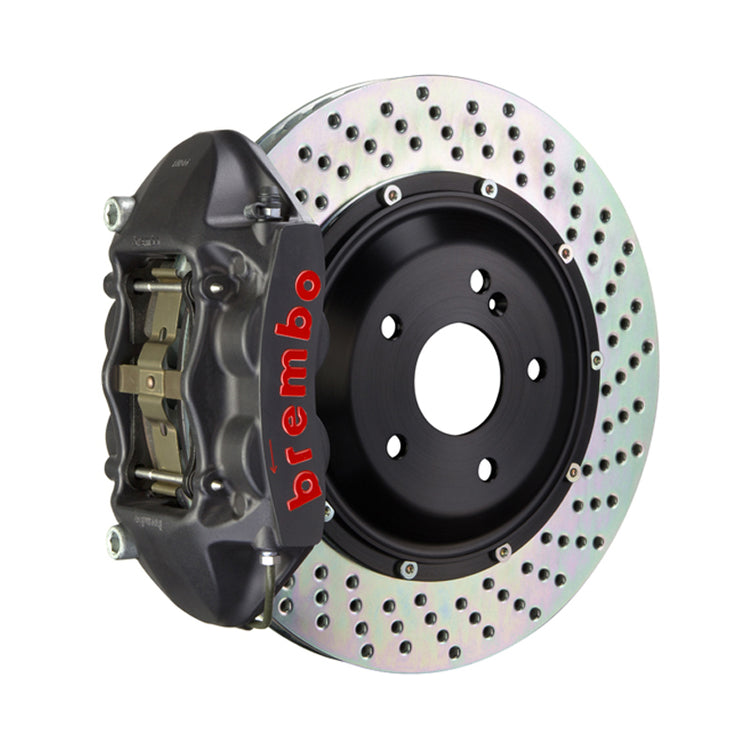

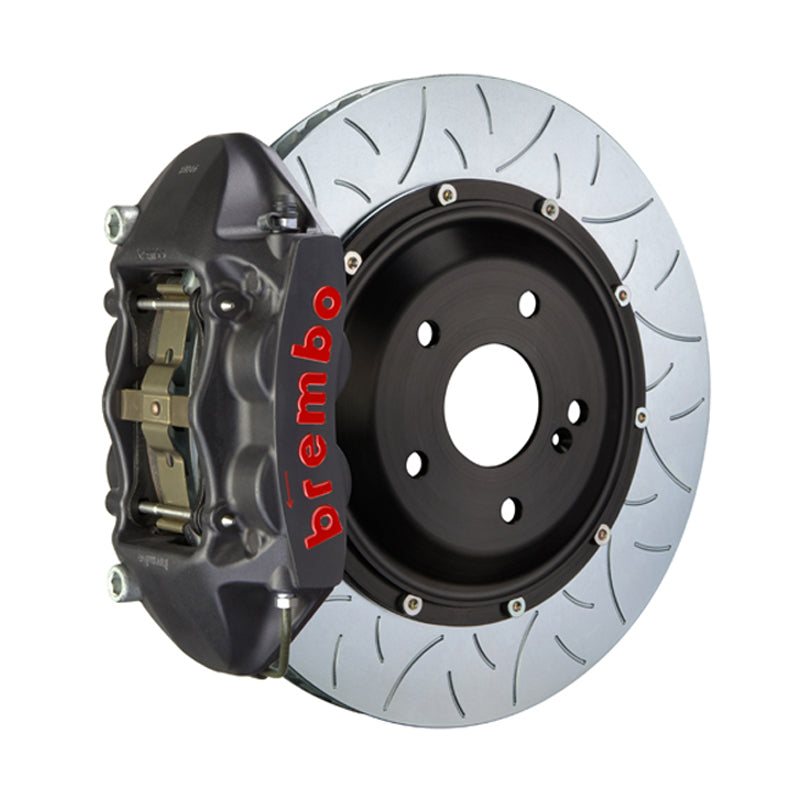

Disc Type : | Cross Drilled TY1 TY3 |
Disc Material/Finish : | Advanced High Carbon Alloy / Corrosion Resistant Plating |
Disc Diameter : | 380mm |
Disc Width (Measurement) : |
28mm |
Disc Air Gap (Measurement) : |
16mm |
Disc Annulus (Measurement) : |
54mm |
Disc Construction : | 2-Piece Disc Assembly |
Disc Vane Design (Measurement) : |
Vented Curved 48 Vane |
Disc To Hat Mounting System : |
Floating D-Bobbin with Anti Rattle Spring |
Pad Compound : | Brembo High Performance FM1000 |
Pad Volume / Surface Area : |
76.4 | 62.1 |
Brake Lines : | Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge |
Mounting Hardware : | Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation. |
MAKE | MODEL / SUB MODEL | CHASSIS | YEAR |
Chevrolet | Corvette ZR1 |
C6 |
2009-2013 |
Chevrolet | Corvette Z06 |
C6 |
2009-2013 |
Chevrolet | Corvette Z07 |
C6 |
2009-2013 |
