The E60/E63 M5/M6 intake system is designed to make a positive impact on the whole driving experience. By taking advantage of aerodynamic principles and using computational fluid dynamics to optimize the airflow, we have engineered an intake system that delivers on all fronts – sharpened throttle response, more torque and power, improving driveability and of course, an amazing V10 induction sound.
The S85 Eventuri system uses our Patent Pending Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design that invokes the Venturi affect.
- Perfect Shape and Design
- 2 x Fibre Housings
- High Flow Air Filters

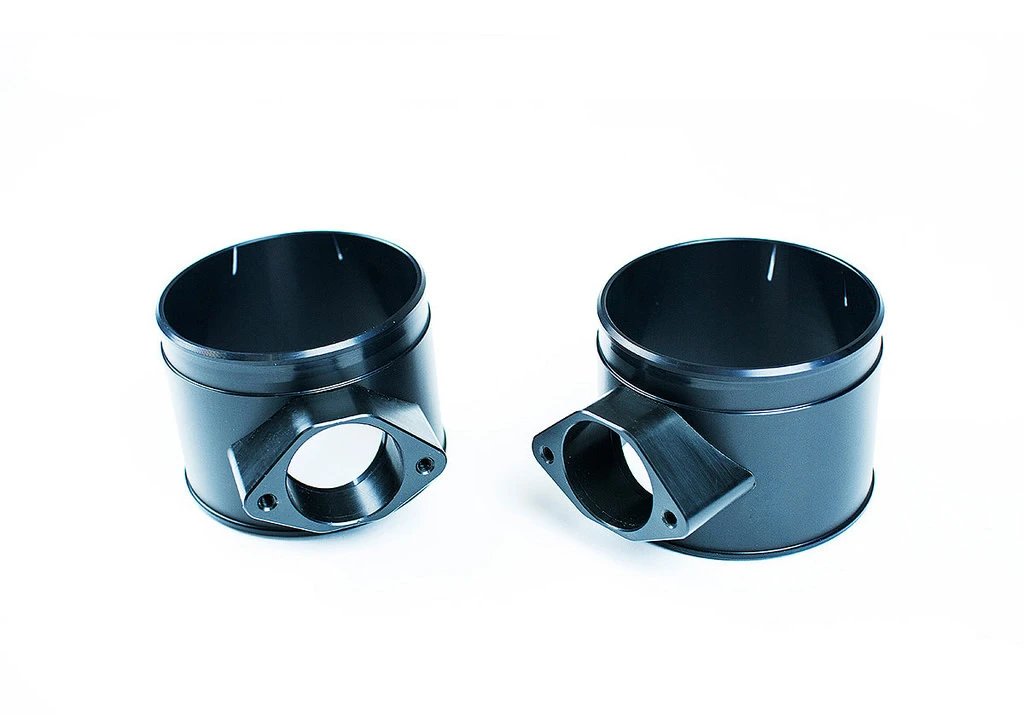

- 2 x CNC Machined and Anodised Aluminium MAF Sensor Housings with Machined Plastic MAF Sensor Mounts
- CNC Machined Secondary Air Flow Breather Adapter
- Aluminum Intake Cowls

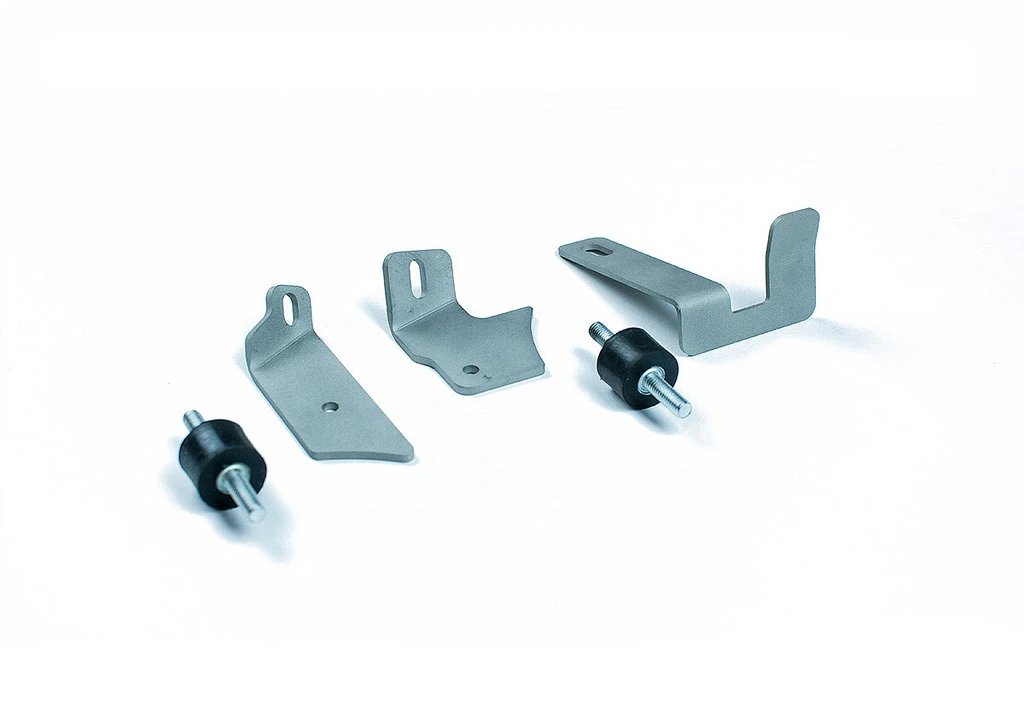

- Laser Cut Mounting Brackets

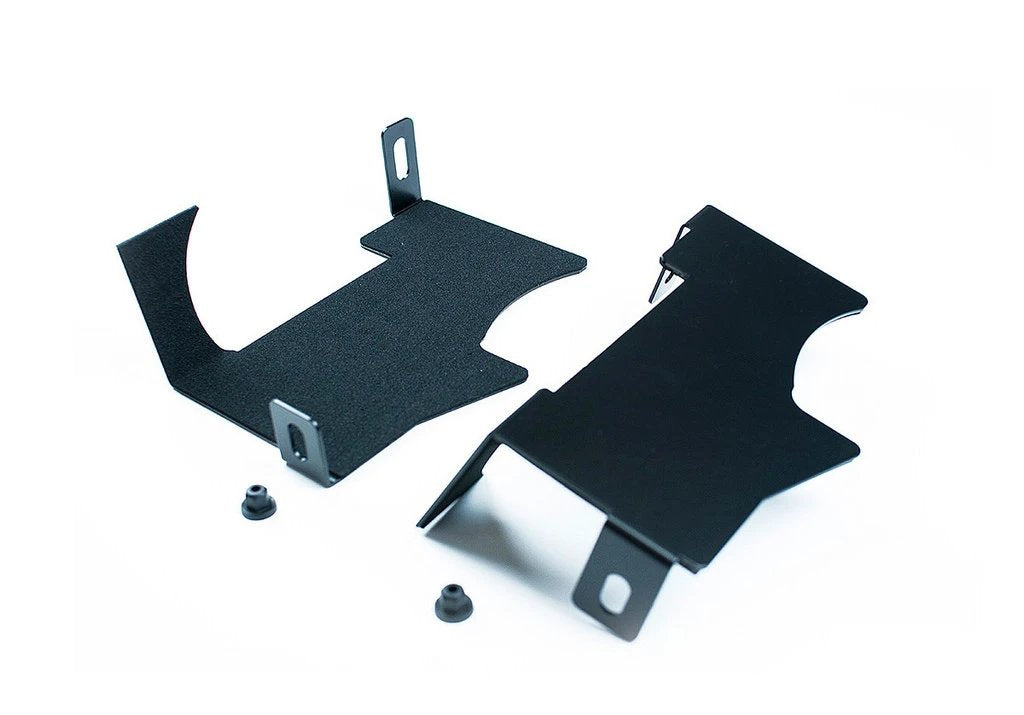

- Laser Cut and Neoprene Lined Heat Shields

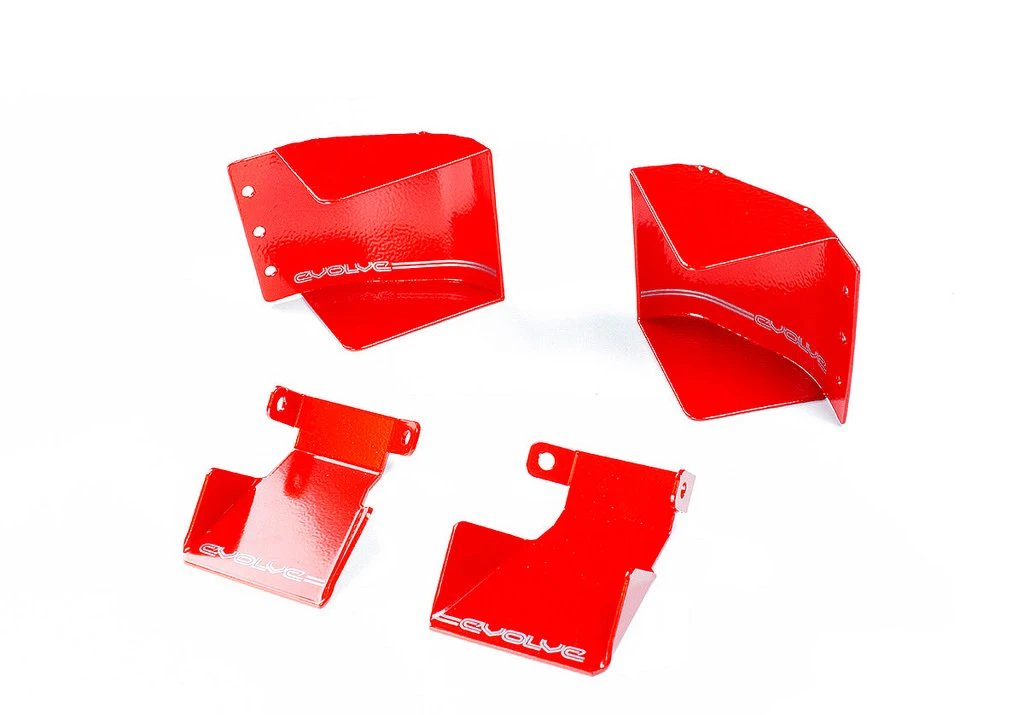

- Coated Aluminium Upper and Lower Air Scoops
- OEM Spec Hose Clamps with High-Quality Silicon Couplers
- OEM Quality Anti Vibration Mounts
- Performance Gain: 12-15hp, 12-18ft-lb
Below is a dyno graph showing the comparison between the Eventuri and the stock airbox on a stock E60 M5 with stock map. The stock airbox tested is Euro spec with charcoal delete and euro filters so is less restrictive than the USA version. As you can see, power and torque are increased through a large portion of the rpm range not just at the peak. This is instantly noticeable on the road as the car feels sharper, more eager to drive even in the mid-range. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency.
Dyno testing was carried out on a Dyno Dynamics DS450 Dynamometer. For the purpose of accurate testing all tests were matched based on - Inlet Air Temperatures through inbuilt IAT sensor in MAF via OBDII - Ignition Timing Matched (Ignition timing can vastly change from one run to the next) - Engine Temperature (Coolant and Oil) - Exhaust Gas Temperature - Two consistent runs recorded for each of the below tests Testing Procedure: - Test 1: Stock car, stock tune, stock intake system and euro filters (equivalent to charcoal delete) - Test 2: As above plus Eventuri Upper Intake Scoops - Test 3: Stock car, stock tune, Full Eventuri VAi Kit.
- 2006 BMW E60 M5
- 2007 BMW E60 M5
- 2008 BMW E60 M5
- 2009 BMW E60 M5
- 2010 BMW E60 M5
- 2006 BMW E63 M6
- 2007 BMW E63 M6
- 2008 BMW E63 M6
- 2009 BMW E63 M6
- 2010 BMW E63 M6
Images are for representation purposes only and may differ depending on application.
