AMS Race Lower Downpipes | 2016-2024 Q50 / 2017-2022 Q60 3.0t VR30

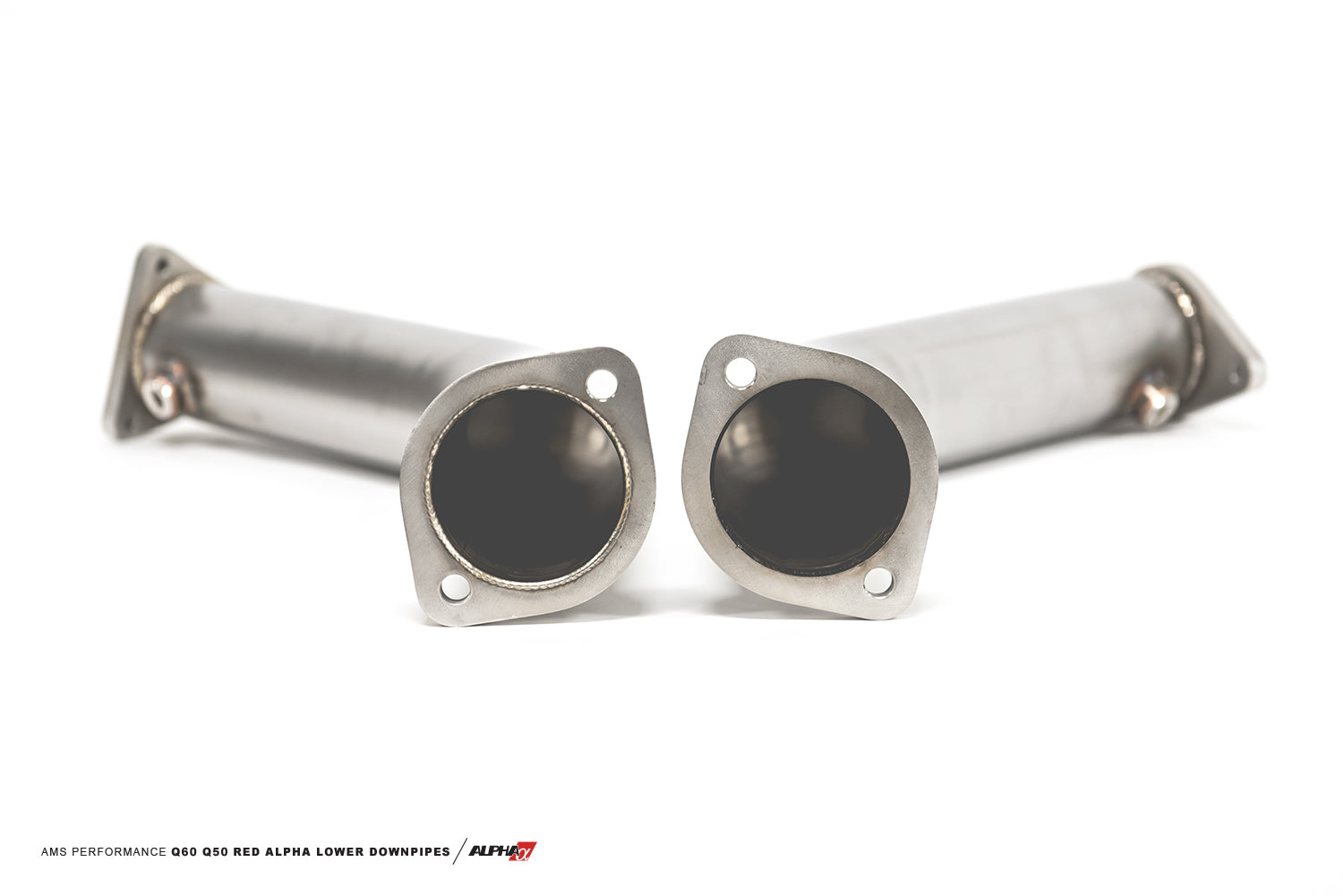

The AMS Performance VR30DDTT Race Lower Downpipes (part number ALP.28.05.0001-1) are a catless replacement for the restrictive factory lower downpipes on the 3.0-liter twin-turbo VR30DDTT engine. They fit the 2016-2024 Infiniti Q50 3.0t, the 2017-2022 Infiniti Q60 3.0t and the 2023-2027 Nissan Z. AMS sold this pair as the "Red Alpha" lower downpipes; the part number has not changed.

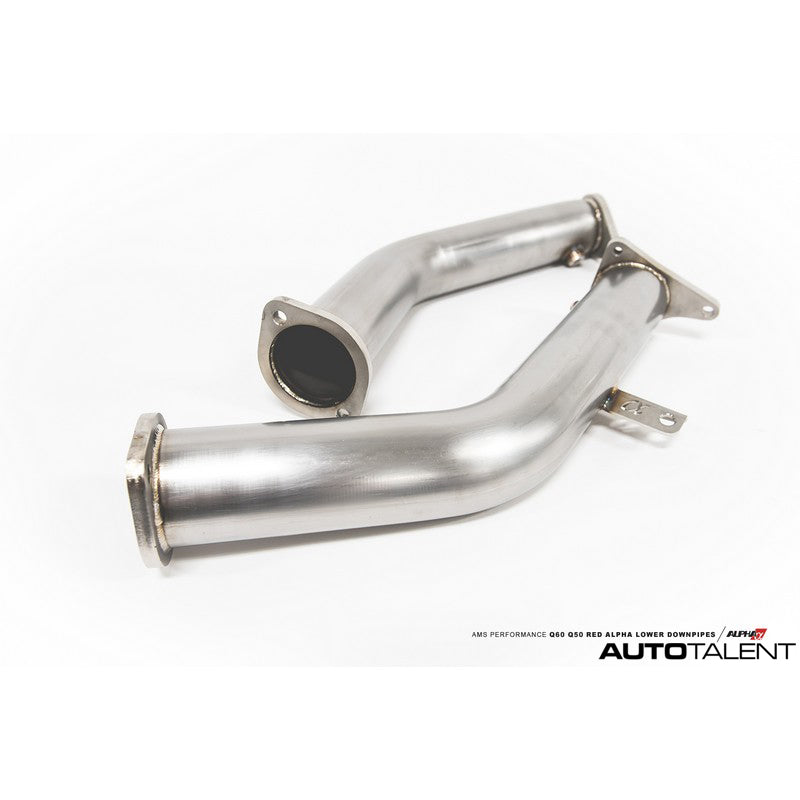

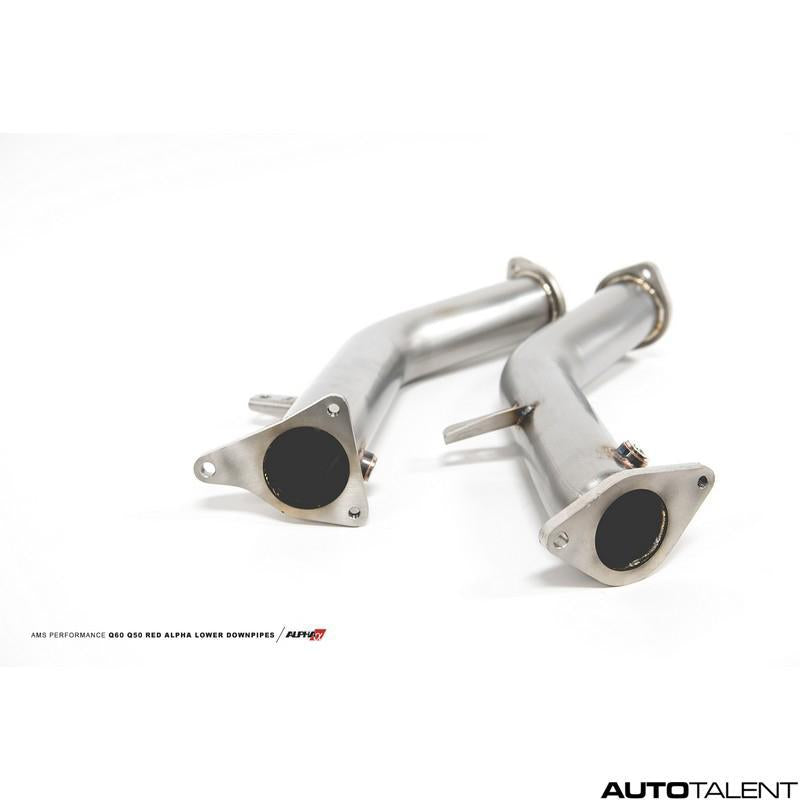

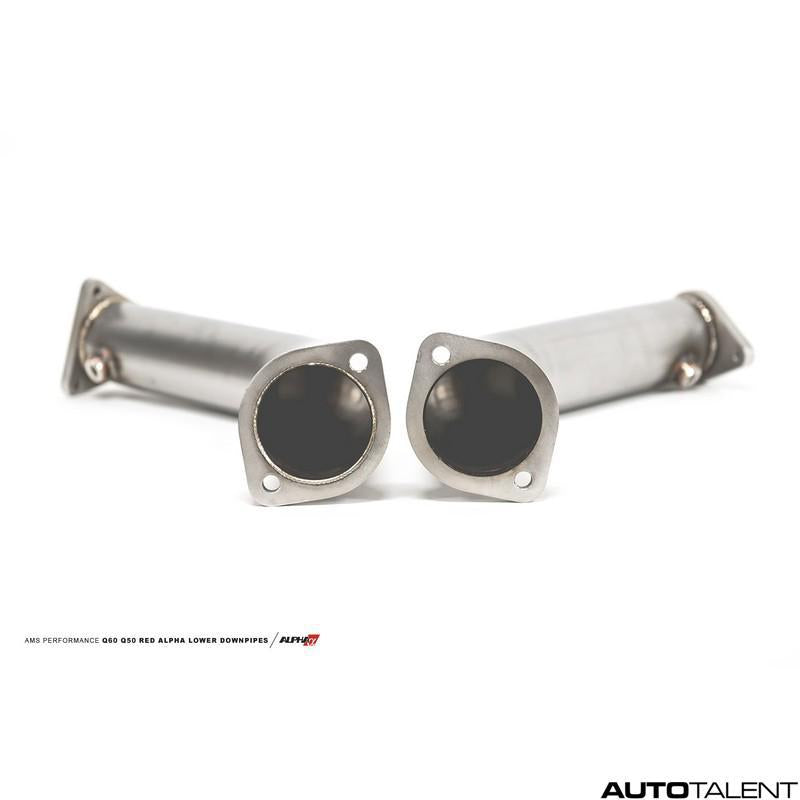

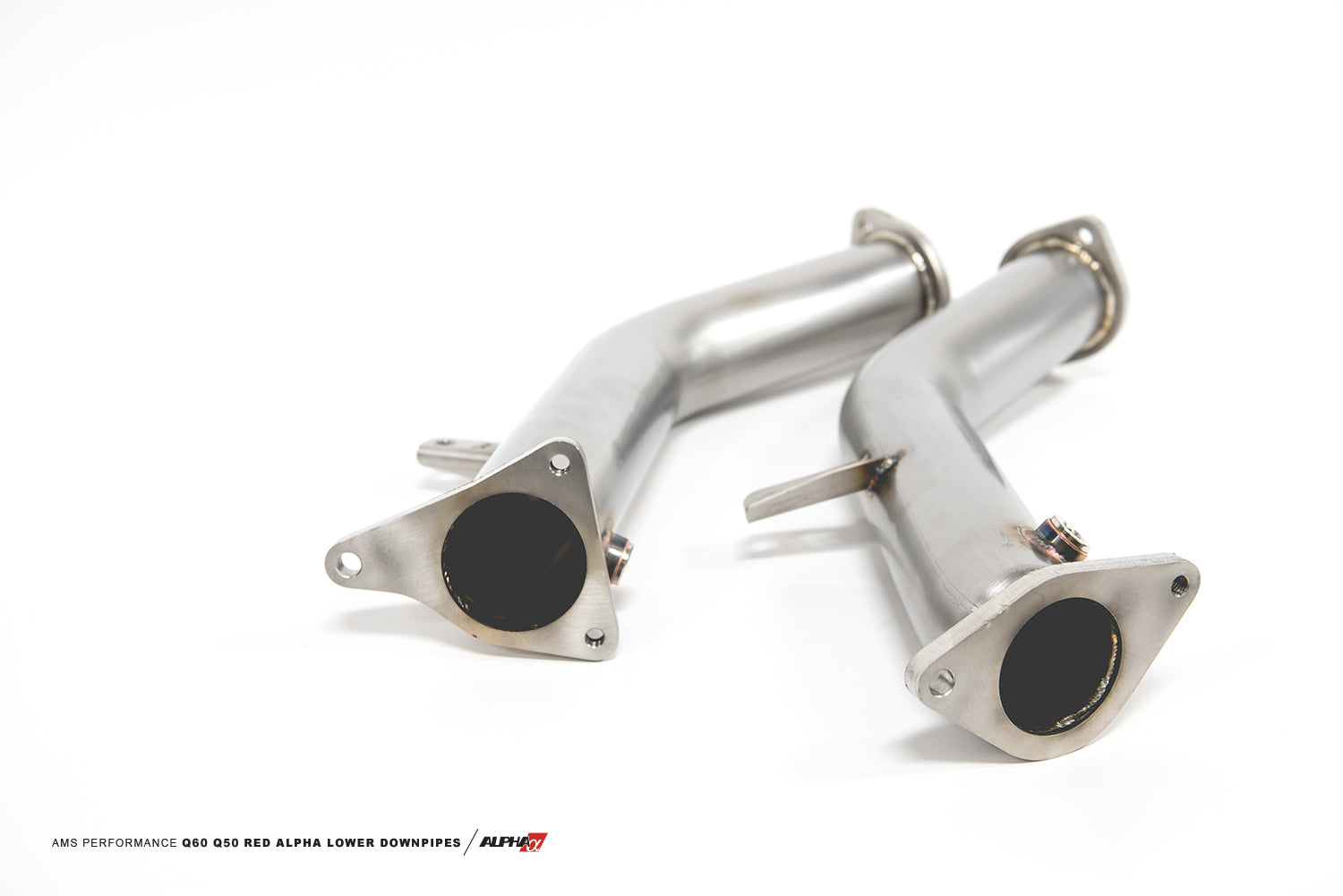

Each side is a full 3" stainless steel tube bent on a mandrel, so the diameter stays constant through every bend instead of pinching the way crush-bent pipe does. Exhaust leaves the turbos with less back pressure, which AMS found brought power in earlier and sharpened turbo spool on its shop Q60. On the street the sound stays quiet at idle and part throttle and turns deep and throaty at wide-open throttle.

Features

• Full 3" mandrel-bent stainless steel tubing, brackets and flanges
• Heavy-gauge stainless keeps heat in the pipe to help hold exhaust velocity

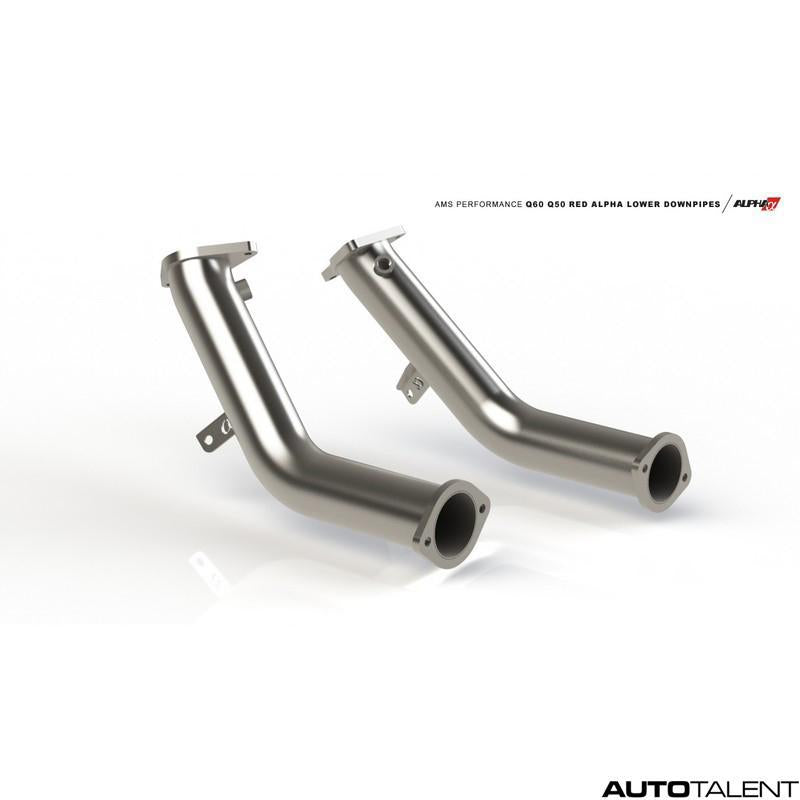

• Designed in SolidWorks and test-fitted with 3D-printed prototypes for factory-like fitment with no chassis clearance issues
• Threaded O2 bungs for the factory sensors
• More than 62% lighter than the stock lower downpipes
• Bolts to the factory mounting points with no cutting

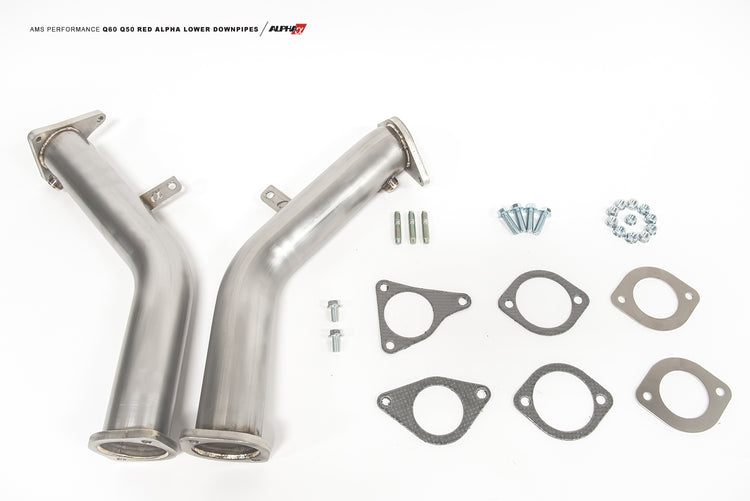

What Is Included

• Left and right AMS race lower downpipes
• 2.5" to 3.0" outlet adapter
• All gaskets (rated to over 800 °C) and mounting hardware

Installation

The pipes bolt between the factory upper downpipes and the cat-back. AMS's installation guide (PDF) walks through removal. The factory lock nuts on the upper studs are known to seize, so AMS advises soaking them in penetrant and loosening them a little at a time with hand tools, not an impact gun. On AWD cars the right-side secondary O2 connector is hard to reach until the factory downpipe is unbolted.

FAQ

Do I need a tune for the AMS race lower downpipes?
AMS says a calibration is very unlikely to be required for the lower downpipes alone, but it still recommends one to get the most power from the part and to confirm the engine is running correctly afterward.

Are these downpipes catless?
Yes. The race lower downpipes have no catalytic converter and are sold for race and competition vehicles only. AMS requires its Race Waiver for emissions-controlled vehicles in the US. If your car has to stay catted, choose the AMS Street Lower Downpipes with GESI catalytic converters.

Lower downpipes or full downpipes?
The lowers replace only the lower section and bolt to the factory upper pipes. AMS full downpipes replace the whole run from the turbos back, and on AMS's own tuned Q60 the full set made about 20 horsepower more than these lowers. See the AMS full downpipes for the Q50.

Will they work with my stock exhaust?
Yes. The kit includes a 2.5" to 3.0" adapter, so the pipes connect to the factory cat-back or to an aftermarket 3" system.

Do my factory O2 sensors fit?
Yes. Both pipes have threaded O2 bungs that take the factory sensors.

Compare AMS VR30 Downpipes

AMS makes four Q50 downpipes and Q60 downpipes for the 3.0t VR30DDTT, in lower or full length and catless or catted. This page is the Race Catless Lower Downpipes; the other three are:

• AMS Race Catless Full Downpipes: catless; replace the full run from the turbos back, about 20 hp more than the race lowers in AMS testing (Q50 and Q60)
• AMS Street Catted Lower Downpipes: GESI catalytic converters; replace the factory lower sections (Q50, Q60 and Nissan Z)
• AMS Street Catted Full Downpipes: GESI catalytic converters; replace the full run from the turbos back (Q50, Q60 and Nissan Z)

Fitment Notes

Fits every VR30DDTT trim of the cars below, including Red Sport 400, Nismo and the AWD Q50 and Q60. It does not fit the 2.0t or hybrid Q50. This is a race part with no catalytic converter and is not legal for use on public roads. For a catted option see the AMS Street Lower Downpipes, or browse all AMS Performance parts.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.
