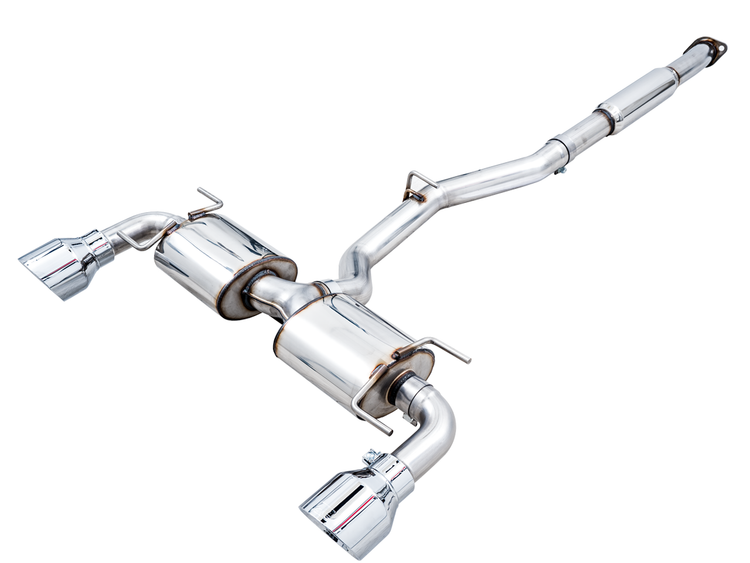

AWE Touring Edition cat-back exhaust for Toyota 86 with 5-inch Chrome Silver slash-cut tips

}

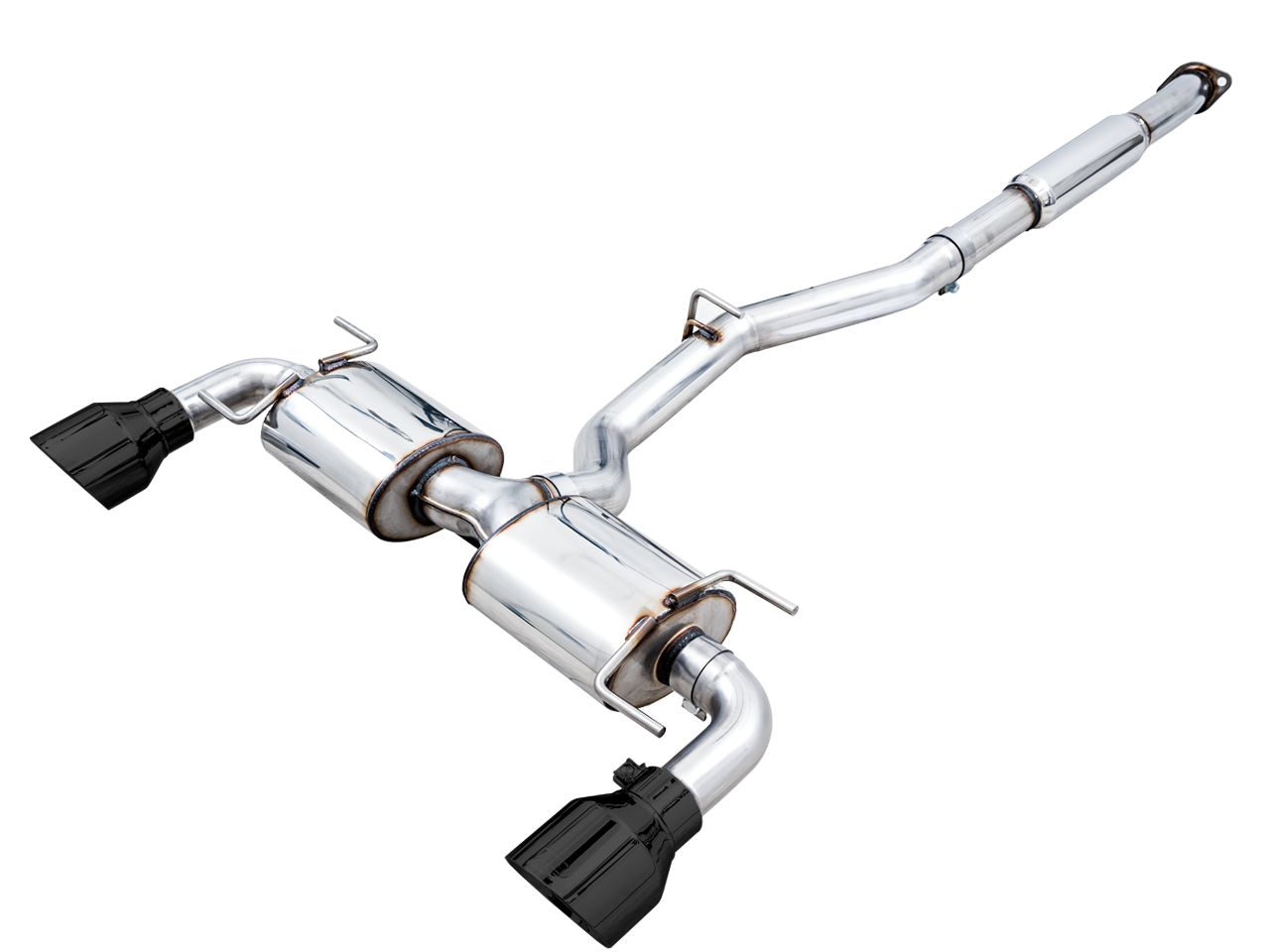

AWE Touring Edition cat-back exhaust for Toyota 86 with 5-inch Diamond Black tips

}

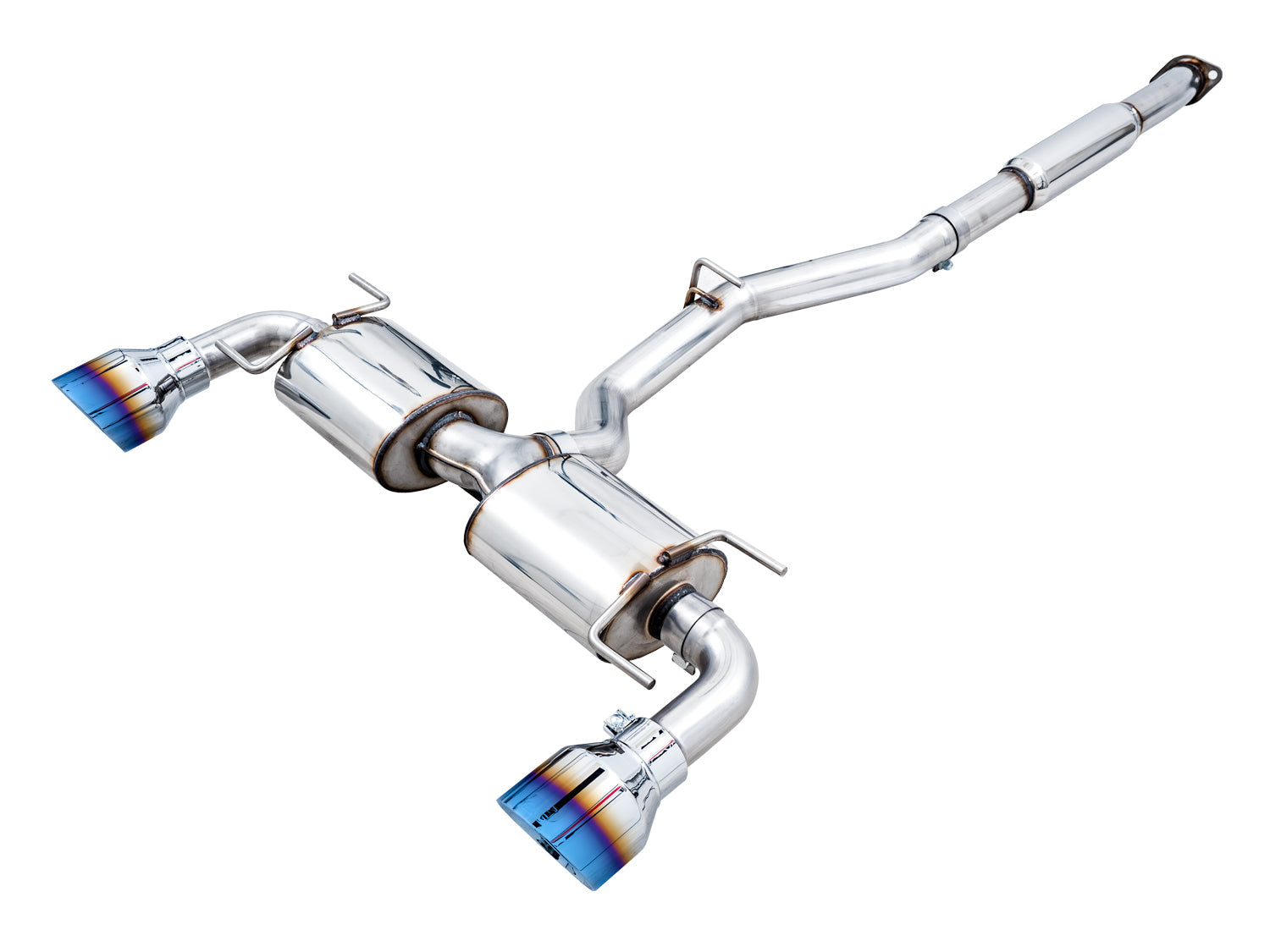

AWE Touring Edition cat-back exhaust for Toyota 86 with 5-inch Vapor Blue tips

}

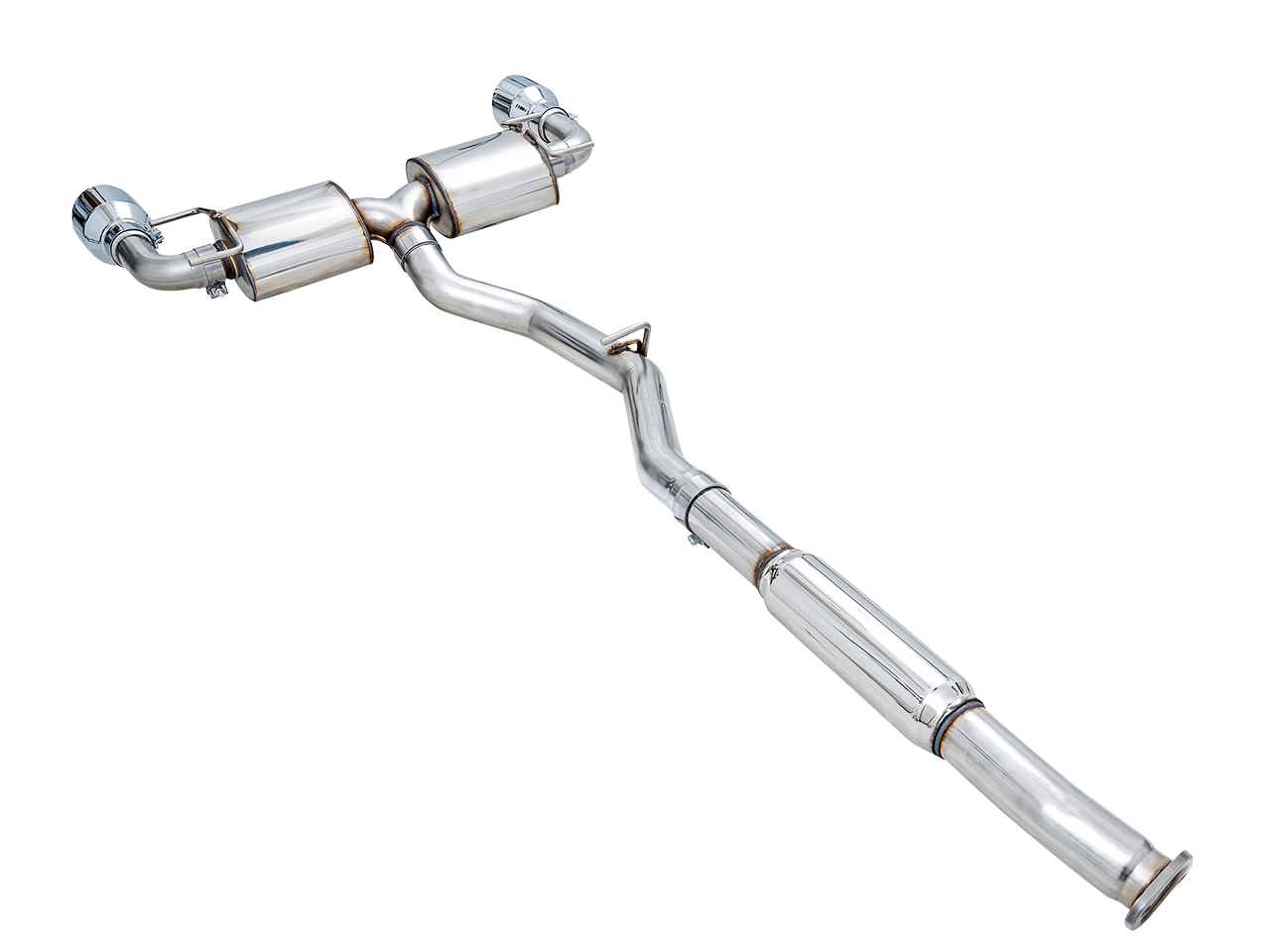

AWE Touring Edition exhaust for Toyota 86, full-length side view with mid-pipe resonator and Chrome Silver tips

}

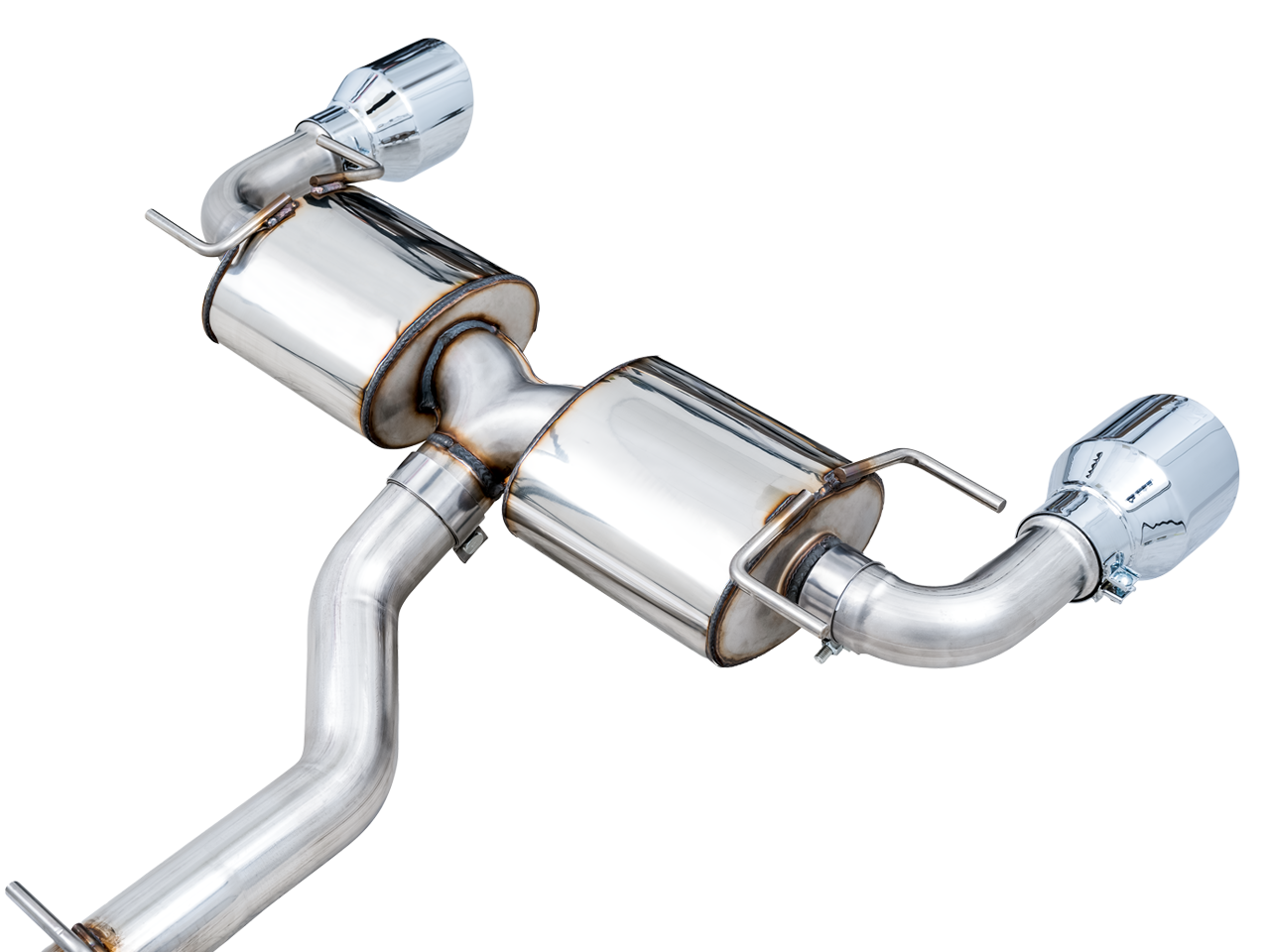

AWE Touring Edition exhaust for Toyota 86, rear section with twin 180 Technology resonators and Chrome Silver tips

}

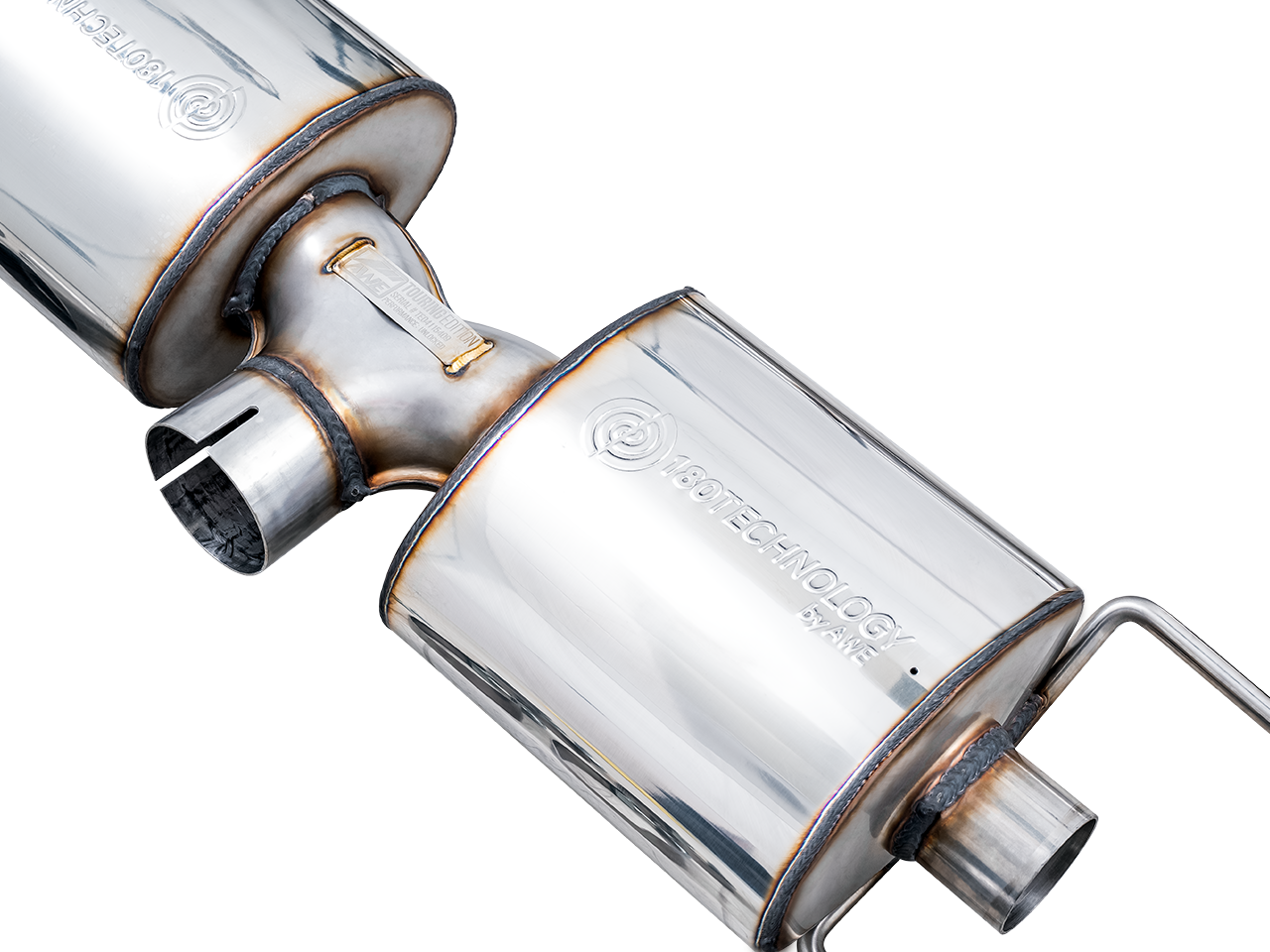

AWE Touring Edition exhaust for Toyota 86, close-up of a 180 Technology rear resonator in T304L stainless steel

}

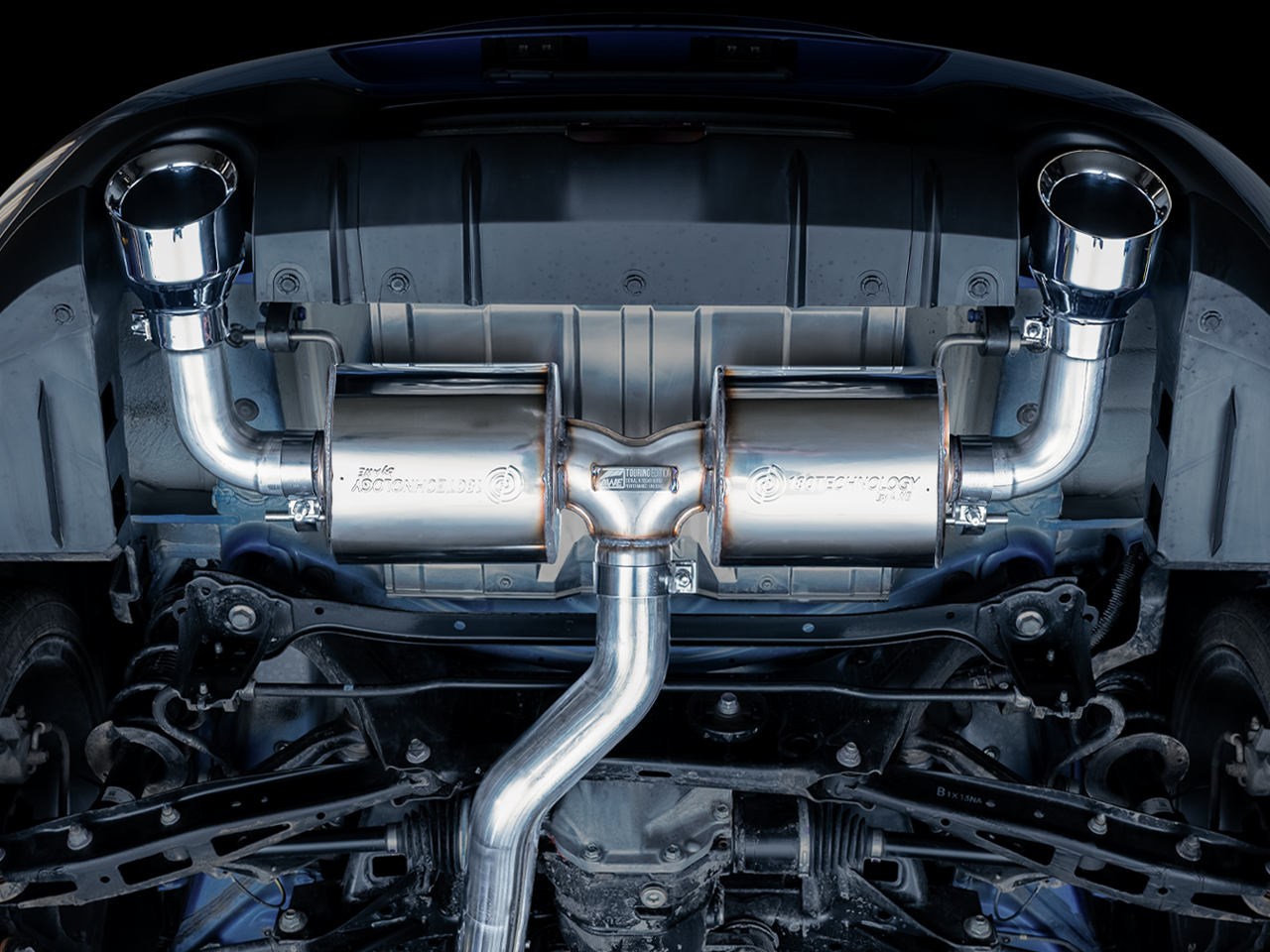

AWE Touring Edition exhaust for Toyota 86, underside view of the installed system with Chrome Silver tips

}

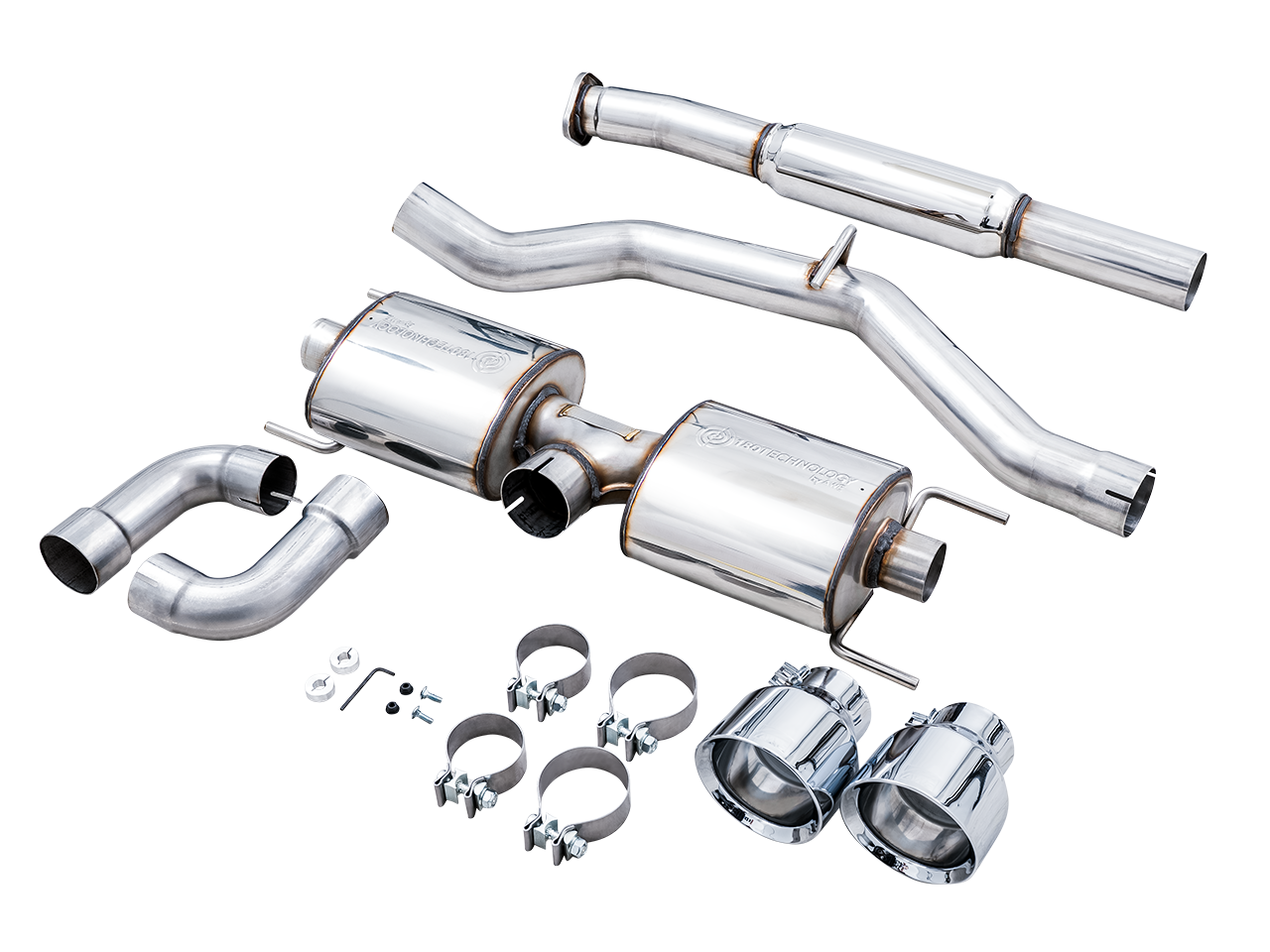

AWE Touring Edition exhaust for Toyota 86, parts laid out with clamps, hangers and two Chrome Silver tips

}

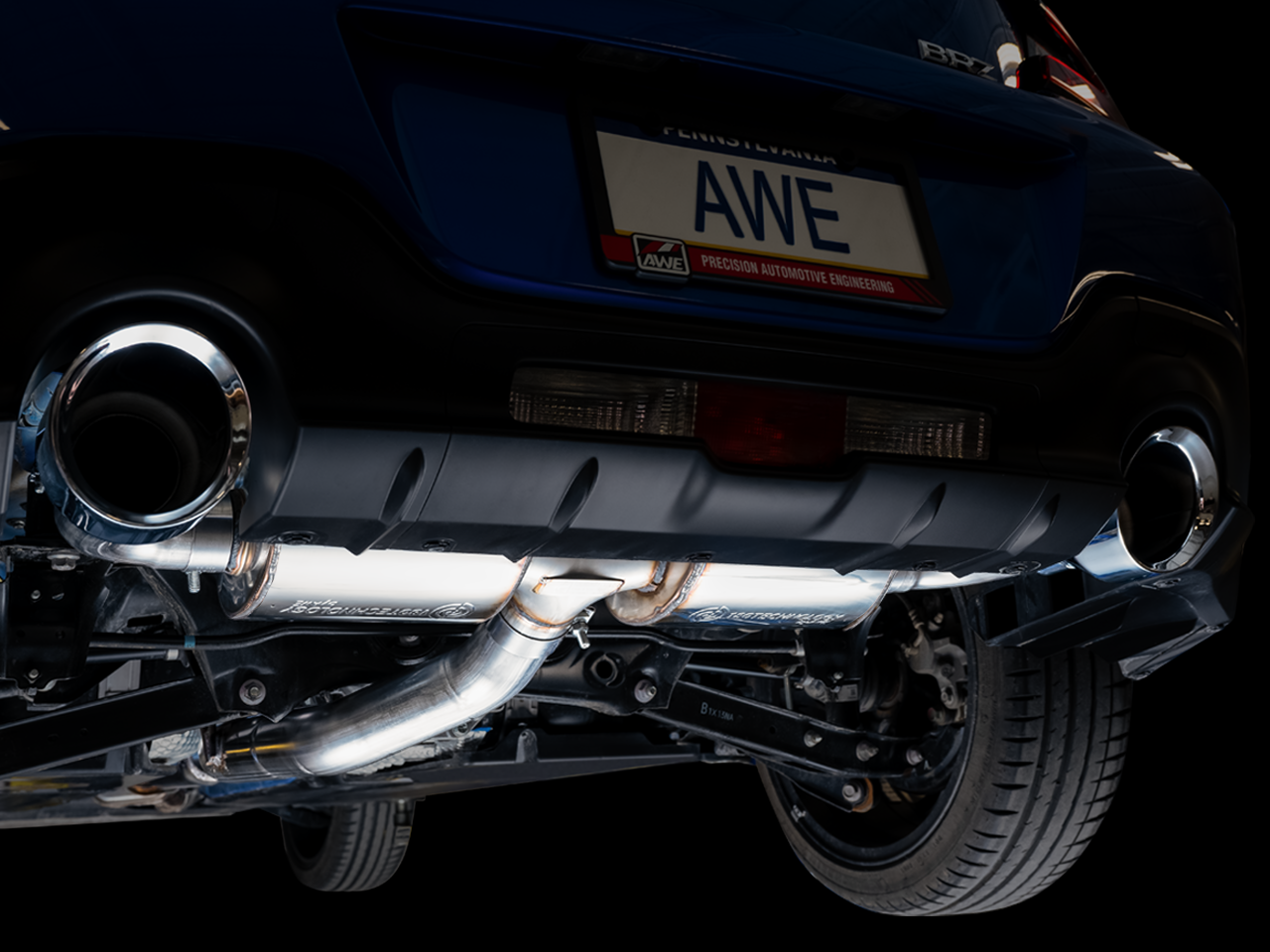

AWE Touring Edition exhaust for Toyota 86, close-up of a 5-inch Chrome Silver tip below the rear bumper

}

AWE Touring Edition exhaust for Toyota 86, rear underside view with Chrome Silver tips

}

AWE Touring Edition Exhaust for 2017-2020 Toyota 86

Ask an expert

Regular price: $1,395.00
Regular price: ~~$1,468.42~~
Sale price: $1,395.00
Unit price: per

Apply at checkout

Product variants

Subtotal: $1,395.00

Quantity:

AWE Touring Edition Exhaust for 2017-2020 Toyota 86

Subtotal: $1,395.00

Not sure it fits? Text us your VINSee all fitment

Vendor: AWE Tuning

SKU: 3015-32486

Questions before you buy? Talk to a specialist.

Fitment and product questions · 9am–6pm Pacific

Call(310) 231-0292 Text(310) 886-3111 ChatLive chat

Price match: found it cheaper?
Secure checkout · Shop Pay · Affirm
AutoTalent since 2006

Free Shipping

Free standard shipping on orders over $99

Coupon Code on First Order

Price Match Guarantee

Free shipping on $99+ order

30-days Returns

Overview

The AWE Touring Edition Exhaust for the 2017-2020 Toyota 86 gives the 2.0L FA20 a deeper, fuller boxer note with crackles, while keeping the cabin free of drone at cruising speeds. It fits the US Toyota 86 in Base and GT trim as well as the 2017 Special Edition, the 2019 TRD Special Edition and the 2020 Hakone Edition.

AWE engineered Touring for the owner who wants more character from the FA20 without giving up a quiet highway drive. A bullet-style resonator in the mid-pipe works with AWE's patented 180 Technology® rear resonators, which target drone-prone frequencies rather than restricting flow, and AWE says the internals will not degrade and change tone over time. The 3" and 2.5" mandrel-bent T304L stainless system is a direct bolt-on and finishes in 5" double-walled tips.

Features

Patented 180 Technology® rear resonators cancel interior drone at cruise
Bullet-style mid-pipe resonator with a straight-through flow path
3" and 2.5" CNC mandrel-bent, U.S.-sourced .065" wall T304L stainless steel
5" double-walled slash-cut tips with AWE logo and individually adjustable depth
Chrome Silver, Diamond Black or Vapor Blue tip finish
Direct bolt-on, no tune required, backed by AWE's No Check Engine Light Guarantee
Engineered, designed and manufactured in-house by AWE in the USA
Convertible to Track Edition later with the AWE Touring-to-Track conversion kit

What's Included

Complete Touring Edition exhaust
Two 5" double-walled slash-cut tips in the chosen finish
All necessary hardware for installation

Specifications

Specification	Detail
Brand	AWE
Part numbers	Chrome Silver 3015-32486; Diamond Black 3015-33486; Vapor Blue 3015-39486
Fits	2017-2020 Toyota 86 (2.0L FA20)
System	Cat-back exhaust
Sound control	Bullet-style mid-pipe resonator plus patented 180 Technology® rear resonators
Tubing	3" and 2.5" CNC mandrel-bent, U.S.-sourced T304L stainless steel, .065" wall
Tips	Two 5" OD x 3" ID double-walled slash-cut tips with AWE logo, depth individually adjustable
Tip finishes	Chrome Silver, Diamond Black or Vapor Blue
Weight saving vs stock	1 lb (AWE)
Shipping weight	Chrome Silver 61.2 lbs; Diamond Black 61 lbs; Vapor Blue 64.9 lbs
Box dimensions (L x W x H)	Chrome Silver 46.2 x 24.9 x 15.5 in; Diamond Black 47.8 x 24.7 x 15.8 in; Vapor Blue 47.3 x 25.4 x 15.7 in
Installation	Direct bolt-on, no tune required
Emissions	AWE lists it as 50 State Legal: it does not tamper with any emissions control or monitoring devices
Made in	USA, engineered, designed and manufactured in-house by AWE

Warranty

Component	AWE warranty
Exhaust tubing, welds and flex areas	Lifetime, original owner
Chrome Silver and Diamond Black tip finish	1 year
Vapor Blue tip finish	No finish warranty; wash gently and avoid harsh cleaners
AWE No Check Engine Light Guarantee	1 year, original owner, when installed properly on an otherwise unmodified car
AWE Fitment Guarantee	30 days

Touring vs Track Edition

	Touring Edition	Track Edition
Mid-pipe resonator	Bullet-style resonator	Bullet-style resonator
Rear resonators	Patented 180 Technology® resonators	None
Sound (AWE)	Deep and hearty with crackles, no interior drone at cruise	Rumble with minimal filter, in and out of the cabin, at all speeds
Weight saving vs stock (AWE)	1 lb	12 lbs
AWE dyno result	Not published for the 2.0L FA20	Not published for the 2.0L FA20

Want it louder? The AWE Track Edition Exhaust for the Toyota 86 drops the rear 180 Technology resonators and saves 12 lbs.

Sound Clip: AWE Touring and Track Edition on the 2.4L FA24

AWE recorded this clip on the 2.4L FA24 car. It has not published a clip on the 2.0L FA20 86, so expect some difference in tone.

Frequently Asked Questions

Is the AWE Touring exhaust legal on an 86?
AWE lists this cat-back as 50 State Legal because it does not tamper with any emissions control or monitoring devices; it bolts on behind the catalytic converters. AWE does not publish a CARB Executive Order number for it, and local sound limits vary, so check the rules where you drive.

How loud is the AWE Touring exhaust on an 86?
It is louder and deeper than stock outside your 86, but AWE built it to stay free of interior drone at cruising speeds, and it is the quieter of AWE's two editions. AWE does not publish decibel figures.

How much horsepower does it add to a Toyota 86?
AWE does not publish a dyno result for the 2.0L FA20 in the Toyota 86. Its only published test is on the newer 2.4L FA24 car, so treat any horsepower claim for the FA20 with caution. What you get is a change in sound and a weight saving, not a quoted horsepower number.

Will it fit a 2017 Special Edition or a 2020 Hakone Edition 86?
Yes. It fits every 2017-2020 US Toyota 86, including the Base, GT, 2017 Special Edition, 2019 TRD Special Edition and 2020 Hakone Edition. For the 2022 and newer car, see the GR86 version.

Can I switch to the Track Edition later?
Yes. The AWE Touring-to-Track conversion kit swaps the rear section to the Track Edition setup.

Fitment Notes

Fits the 2017-2020 Toyota 86 (ZN6) with the 2.0L FA20.
Fits Base and GT trims, the 2017 Special Edition, the 2019 TRD Special Edition and the 2020 Hakone Edition.
For the 2022 and newer car, see the Toyota GR86 version. There was no 2021 US Toyota 86.
Direct bolt-on to the factory mounting points; no tune required.
Different car? AWE Touring Edition for the Toyota GR86, Subaru BRZ, Scion FR-S.

Questions about fitment? Call (310) 231-0292 or text (310) 886-3111.

Vehicle Fitment

Year	Make	Model	Chassis	Engine
2017-2020	Toyota	86	ZN6	2.0L FA20 H4
